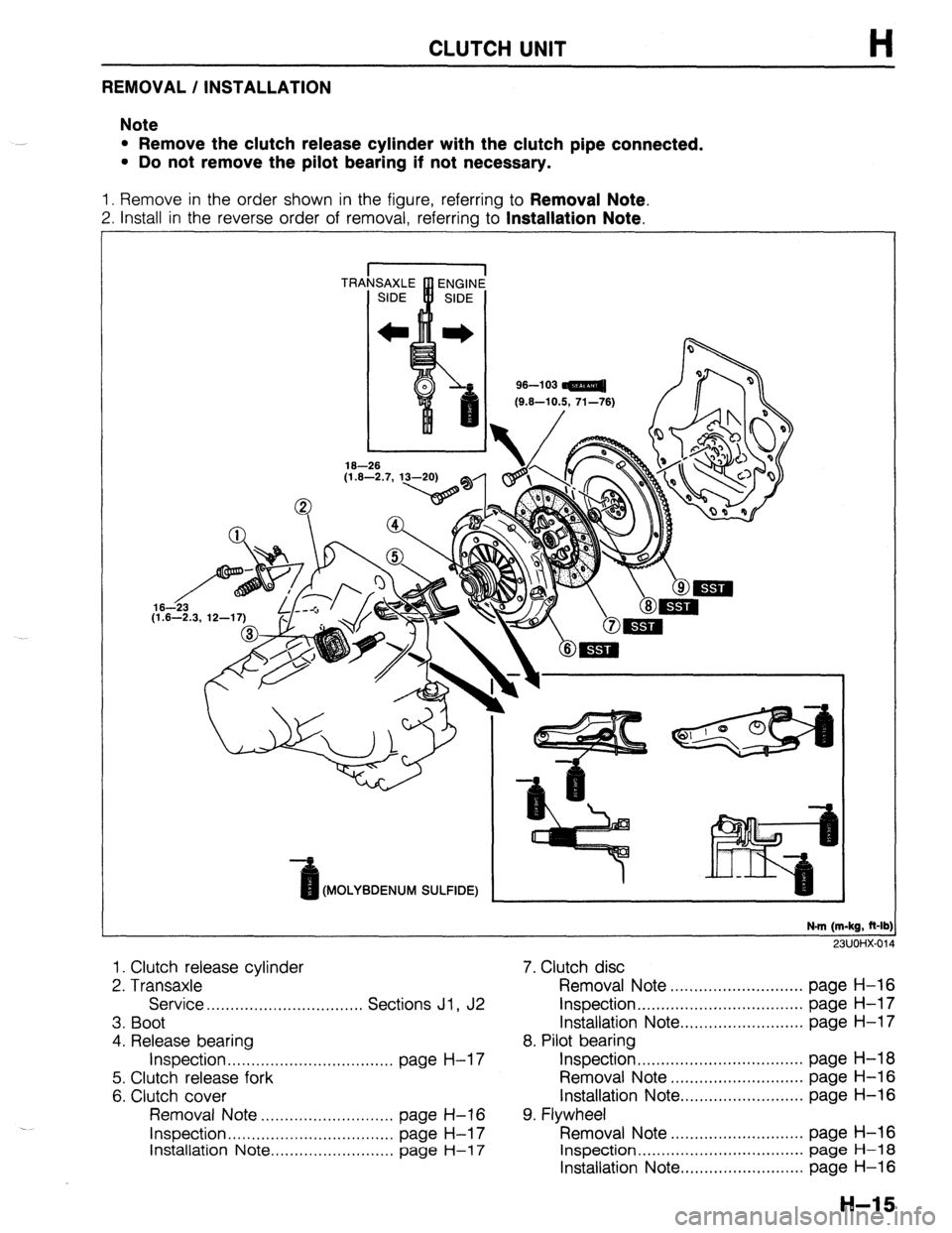

CLUTCH UNIT
REMOVAL / INSTALLATION
Note
l Remove the clutch release cylinder with the clutch pipe connected.
l Do not remove the pilot bearing if not necessary.
1. Remove in the order shown in the figure, referring to Removal Note.
2. Install in the reverse order of removal, referring to Installation Note.
96-l 03
Kt.6-10.5. 71-761
(MOLYBDENUM SULFIDE)
N-m (m-kg, R-lb:
911 Im-4Y.fi,r
1. Clutch release cylinder
2. Transaxle
Service . . . . . . . . . . . . . . . . . . . . . . . . . ,....... Sections Jl , J2
3. Boot
4. Release bearing
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page H-l 7
5. Clutch release fork
6. Clutch cover
Removal Note ..,...........,,,.........,, page H-16
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page H-l 7
Installation Note .,......................., page
H-l 7
7. Clutch disc
Removal Note ............................ page H-16
Inspection.. ................................. page H-l 7
Installation Note .......................... page H-l 7
8. Pilot bearing
Inspection ................................... page H-18
Removal Note ............................ page H-16
Installation Note.. ........................ page H-16
9. Flywheel
Removal Note ............................ page H-16
Inspection ................................... page H-18
Installation Note .......................... page H-16
H-15

Jl TRANSAXLE
L
r
r
23UOJl-002
03lJOJl-016
Tie-rod end
Caution
l Do not damage the dust boot.
1. Remove the cotter pin and loosen the nut.
2. Disconnect the tie-rod end with the
SST.
Driveshaft
1. Remove the clinch bolt.
Caution
l Wrap a rag around the ball Joint dust boot to pro-
tect it from damage.
2. Disconnect the lower arm from the knuckle with a pry bar.
.-’
Caution
l Do not sub]ect the tripod joint to shock when remov-
ing the driveshaft.
3. Separate the driveshaft from the transaxle by prying with
a bar inserted between the outer ring and the transaxle.
4. Suspend the driveshaft with a rope.
Transaxle
1. Loosen the SST (engine support) and lean the engine to-
ward the transaxle.
2. Support the transaxle with a jack.
Jl-12

TRANSAXLE Jl
Clutch Housing and Transaxle Case Components
Caution
l Do not remove oil seals unless necessary.
1. Disassemble in the order shown in the figure, referring to Disassembly Note.
-
.ACE
23UOJl-O(
1. Speedometer driven gear 17. Boot 28. Adjust shim
assembly 18. Oil seal (Change rod) 29. Adjust shim
2. Oil seal (Differential) Disassembly Note 30. Bearing outer race
Disassembly Note ,.,,,..,............. page Jl-18 (Differential)
..................... page Jl-19 19. Bushing Disassembly Note
Replacement (On-vehicle) 20. Oil seal (Primary shaft) ..................... page Jl-19
.....................
page Jl-20 Disassembly Note 31. Adjust shim (Differential)
3. Pivot ..................... page Jl-19 Disassembly Note
4. Bleeder 21. Bearing outer race ..................... page Jl-19
5. Bleeder cover Disassembly Note 32. Transaxle case
6. Gasket ..................... page Jl-18 33. Roll pin
7. Roll pin 22. Funnel 34. O-ring
8. Blind plug Disassembly Note 35. Driven gear
Disassembly Note ..................... page Jl-18 36. Packing
..................... page Jl-18 23. Bearing outer race 37. Oil seal
9. Reverse lever shaft (Differential) (Speedometer gear cace)
Disassembly Note Disassembly Note Disassembly Note
..................... page Jl-18 ..................... page Jl-19 ..................... page Jl-19
10. Lever set spring 24. Clutch housing 38. Gear case
11. Reverse lever 25. Oil passage 39. Joint
Inspection ....... page Jl-27 26. Oil seal (Differential) 40. Change rod
12. Guide plate assembly Disassembly Note
13. Roll pin ..................... page Jl-19
14. Selector Replacement (On-vehicle)
15. Change arm ..................... page Ji-20
16. Change rod assembly 27, Bearing outer race
Jl-17

Jl TRANSAXLE
r
03UOJ2-026
03UOJl-03:
Oil seal
Replacement (On-vehicle)
Jack up the vehicle and support it with safety stands. Drain
the transaxle oil. Next, use the following procedure to replace
the driveshaft oil seal:
1. Remove the front wheel.
2. Remove the splash shield.
3. Separate the front stabilizer from the lower arm.
Caution
l Do not damage the dust boots.
4. Remove the clinch bolt and pull the lower arm downward.
Separate the knuckle from the lower arm ball joint.
5. Loosen the nut and disconnect the tie-rod end with the SST.
Caution
l Do not subject the tripod joint to shock when remov-
ing the driveshaft.
6. Disconnect the driveshaft from the transaxle by prying with
a bar inserted between the outer ring and the transaxle.
7. Suspend the driveshaft with a rope.
03UOJl-036
8. Remove the oil seal with a screwdriver.
03UOJ2-03’
03UOJi-03;
51-20
Note
l Tap in until the oil seal installer contacts the case.
l Coat the oil seal lip with transaxle oil.
9. Tap the new oil seal into the transaxle case with the SST.

TRANSAXLE

I
\m/ 7.8-11 N-m
1. Change
rod
2. Joint
3. Bearing outer race
4. Funnel
Assembly Note 11. Oil passage
29. Guide plate assembly
12. Oil
seal (Differential) 30.
Gear case
Assembly Note 31, Oil seal
,.................... page Jl -41 (Speedometer gear cace)
13. Transaxle case Assembly Note
. . . . . . . . . . . . . . . . . . . . .
page Jl-42
5. Bearing outer race
Assembly Note
. . . . . . . . . . . . . . . . . . . . . page Jl-42
6. Bearing outer race
(Differential)
Assembly Note
. . . . . . . . . . . . . . . . . . . . . page Jl-41
7. Adjust shim (Differential)
Assembly Note
. . . . . . . . . . . . . . . ...*.. page Jl-41
8. Bearing outer race
(Secondary shaft gear)
Assembly Note
,..*.,...............
page Jl -41
9. Adjust shim
(Secondary shaft gear)
Assembly Note
. . . . . . ...*. . . . . . . . . . . page Jl-41
IO. Adjust shim
(Primary shaft gear)
Assembly Note
14. Reverse lever . . . . . . . . . . . . . . . . . . . . . page Jl-41
15. Lever set spring 32. Packing
16. Reverse lever shaft 33. O-ring
17. Roll pin 34. Drive gear
18. Blind plug 35. Roll pin
19. Oil seal (Primary shaft gear) (Speedometer driven gear
Assembly Note assembly)
. . . . . . . . . . . . . . . . . . . . . page Jl-42 Assembly Note
20. Gasket ..,......*. ..,,...... page Jl-41
21. Bleeder cover 36. Speedometer driven gear
22. Bushing assembly
23. Oil seal (Change rod) 37. Bleeder
Assembly Note 38. Pivot
..,..,...,........... page Jl-42 39. Oil seal (Differential)
24. Boot Assembly Note
Assembly Note . . . . . . . . . . . . . . . . . ...* page Jl-41
.,.,.,............... page Jl-42 40. Clutch housing
25. Change rod
Assembly Note
. ..*.................
page J l-42 .,................... page Jl-42
26. Change arm
27. Selector
28. Roll pin
Jl-36

Jl TRANSAXLE
03UOJl-10
-
23UOJl.01
Adjust shim (Primary shaft gear)
Caution
l Use adjust shim(s) selected during bearing preload
adjustment.
1. Apply transaxle oil to the adjust shim(s) and install it.
Funnel and bearing outer race
Caution
l Apply transaxle oil to the bearing outer race.
1. Install the funnel and the bearing outer race.
Oil seal (Primary shaft gear)
Caution
* Apply transaxle oil to outer circumference of the oil
seal.
1. install the new oil seal with a suitable pipe.
Oil seal (Change rod)
Caution
l Apply transaxle oil to the oil seal lip.
1. Install the oil seal.
Boot and change rod assembly
Caution
l Install the boot with the air bleed downward as
shown in the figure.
1. Slide the boot onto the change rod assembly.
2. Install the change rod assembly into the clutch housing.
-,
Jl-42

Jl SHIFT MECHANISM
SHIFT MECHANISM
OVERHAUL
1. Disassemble in the order shown in the figure.
2. Inspect all parts and repair or replace as necessary.
3. Assemble in the reverse order of disassembly, referring to
Assembly Note.
t
w 16-G (1.6-2.3, 12-17)
“..d
n /~~16--23 (1.6-2.3, 12-17)
1. Shift lever knob
2. Rear ashtray
3. Rear console
4. Front console
5. Boot
6. Nut
7. Washer
8. Bolt
9. Nut
10. Washer
Il. Bushing
12. Spring
Inspect for damage and weakness
Assembly Note.. . . . , . . . . . . . . . . . . . . . . . . . . page Jl -57
13. Shift lever
;45. “,Mlseat (upper)
Inspect for wear and damage
Jl-56
16. Holder
17. Ball seat (lower)
18. Nut
19. Washer
20. Pipe
21. Bushing
Inspect for wear and damage
22. Washer
23. Extension bar
Assembly Note,.. . . ., . . . . . . . . . . . . . . . . . . .
24. Insulator
Inspect for damage and cracks
25.
Nut
26. Bolt
27. Bushing
Inspect for wear and damage
28. Change control rod
Inspect for bending
142
page Jl -57

TRANSAXLE J2
1. Wheel and tire 14. Exhaust pipe
2. Splash shield 15. Engine mount No.2
3. Air hose and resonance chamber 16. Clutch release cylinder
4. Battery Removal Note .,...........,....,.,...... page J2-11
5. Battery carrier 17. Tie-rod end
6. Speedometer cable Removal Note . . . . . . . . . . . . . . . . ..*........ page J2-11
7. Back-up light switch connector 18. Stabilizer
8. Neutral switch connector 19. Driveshaft
9. Ground Removal Note . . . . . . . . . . . . . . . . . . . . . . . . . . . page J2-12
10. Starter 20. Joint shaft
11. Extension bar 21. Engine mount No.4
12. Control rod 22. Transaxle
13. Engine mount member Removal Note ..,..,....*................ page J2-12
Removal Note . . . . . . . . . . . . . . . . . . . . . . . . . . . page J2-1 1
03UOJ2-014
-
03UOJ2-01
Removal Note
Engine mount member
1. Suspend the engine with the SST and remove the engine
mount member.
Clutch release cylinder
Caution
l Do not damage the clutch pipe.
1. Remove the bolts shown.
2. Lay aside the clutch release cylinder and the clutch pipe.
I ,
03UOJ2-016
Tie-rod end
1. Remove the cotter pin.
Caution
l Do not damage the dust boot.
2. Loosen the nut and disconnect the tie-rod end with the SST.
I I
03UOJ2-017
52-l 1
