1991 MITSUBISHI MONTERO sensor

specifications.
Wire lead open .......... A .. Require repair or replacement.
Wire lead shorted ....... A .. Require repair or replacement.
(1) - If a sensor is not adjustable, further inspection is
required to identify and correct cause.
( 2) - Determine cause and correct prior to repair or
replacement of part.
( 3) - Determine source of contamination, such as metal
particles or water. Require repair or replacement.
( 4) - Inoperative includes intermittent operation or out of OEM
specification. Some components may be serviceable; check
for accepted cleaning procedure.









\









\









\









\









\









\









\


STEEL BRAKE LINES
STEEL BRAKE LINE INSPECTION








\









\









\









\









\









\









\


Condition Code Procedure
Attaching hardware
broken ................. A ... Require repair or replacement
of hardware.
Attaching hardware
missing ................ C .......... Require replacement of
hardware.
Attaching hardware not
functioning ............ A ... Require repair or replacement
of hardware.
Corroded, affecting
structural integrity ... A ............ Require replacement.
Fitting incorrect (for
example, compression
fitting) ............... B ............ Require replacement.
Flare type incorrect .... B .. Require repair or replacement.
Leaking ................. A .. Require repair or replacement.
Line material incorrect
(copper, etc.) ......... B ............ Require replacement.
Restricted .............. A ............ Require replacement.
Routed incorrectly ...... B ..... Require routing correction.
Rust-pitted ............. 1 ............ Suggest replacement.
Threads damaged ......... A .. Require repair or replacement.
Threads stripped
(threads missing) ...... A ............ Require replacement.









\









\









\









\









\









\









\


STOPLIGHT SWITCHES
See BRAKE STOPLIGHT SWITCHES .
SWITCHES
NOTE: Copied from Electrical UIGs & added "float saturated" from
old fluid level sensor switches.
STEEL BRAKE LINE INSPECTION









\









\









\









\









\









\









\


Condition Code Procedure
Attaching hardware
broken ................. A ... Require repair or replacement
of hardware.

Installation
To install, reverse removal procedure. Tighten wheel bearings
to 22 ft. lbs. (30 N.m). Loosen nut, and then retighten to 72 INCH
lbs. (8 N.m). Install cotter pin. If pin does not align, loosen nut up\
to a maximum of 30 degrees.
REAR BRAKE DRUM & SHOES
Removal
1) Raise and support vehicle. Remove wheel and brake drum.
Remove shoe return spring and brake shoe adjuster. See Fig. 8. Remove
adjusting spring, shoe retaining spring and shoe hold-down pins.
2) Remove shoe and lining assembly with parking brake lever.
Remove cable from parking lever. Remove parking brake lever snap ring,
and disengage lever from brake shoe.
Fig. 8: Exploded View of Rear Brake Assembly
Courtesy of Mitsubishi Motor Sales of America.
Installation
1) To install, reverse removal procedure. Apply Lubriplate to
backing plate bosses, adjuster assembly threads and parking brake
lever pin.
2) Set adjustment assembly so brake shoes lightly contact
brake drum. Depress brake pedal to center shoes, and check pedal
travel. Rotate brake drum to ensure free movement.
WHEEL CYLINDERS
Removal & Installation
Raise and support vehicle. Remove rear brake drum and shoes.
See REAR BRAKE DRUM & SHOES under REMOVAL & INSTALLATION. Remove wheel
cylinder and seal assembly. To install, reverse removal procedure.
Bleed brakes.
MASTER CYLINDER
Removal
Drain brake fluid from master cylinder. Remove sensor
connector (if equipped). Disconnect brake lines from master cylinder,
and install plugs to prevent brake fluid spillage. Remove master
cylinder from booster unit and separate reservoirs from housing (if
necessary).
Installation
To install, reverse removal procedure. Before installation,
check and adjust clearance between back of master cylinder piston and
power brake push rod. Refer to MASTER CYLINDER PUSH ROD under
ADJUSTMENTS. After installation, adjust the brake pedal height. Refer
to BRAKE PEDAL HEIGHT & FREE PLAY under ADJUSTMENTS. Bleed brake
system. See BLEEDING BRAKE SYSTEM .

CRUIS E C O NTR O L S YSTE M

1991 M it s u bis h i M onte ro
1991-92 SAFETY EQUIPMENT
Mitsubishi Cruise Control Systems
Montero
DESCRIPTION & OPERATION
The cruise control system is electronically and vacuum
controlled. System components include a control unit, actuator, vacuum
pump, cruise control switch, clutch pedal switch, cruise indicator
light, diode, inhibitor switch (A/T), stoplight switch, vehicle speed
sensor and A/T control unit.
The system has self-diagnostic capability. When
self-diagnostic mode is activated, each switch and sensor is checked
for defects. When cruise control system has been cancelled without
using a normal cancel method, a code will be set and stored in control
unit. Codes can be retrieved to help determine which circuit is
malfunctioning.
PRELIMINARY INSPECTION
Before performing TROUBLE SHOOTING steps, inspect linkage
assembly, actuator, cables and vacuum hoses. Ensure linkage and cables
move smoothly. Ensure cables do not have excessive slack or tension.
TROUBLE SHOOTING
NOTE: For further trouble shooting information, see CHECK RESULTS
& SYMPTOM CHARTS. See Figs. 11-16.
SYSTEM CANCELS OR WILL NOT RESET AFTER CANCELLATION
1) Check trouble codes, see SELF-DIAGNOSTICS under DIAGNOSIS
& TESTING. If no trouble codes are stored, ensure cruise control can
be set.
2) If cruise control can be set, system may have cancelled
because of driving on steep hills or loose wiring connection. If
cruise control still cannot be set, perform SYSTEM INPUT TESTS under
DIAGNOSIS & TESTING.
3) On 1991 models, if SYSTEM INPUT TESTS check okay, check
actuator circuit. See TEST NO. 5 under CIRCUIT TESTS (1991). On 1992
models, if SYSTEM INPUT TESTS check okay, check vacuum pump circuit.
See TEST NO. 6 under CIRCUIT TESTS (1992). On all models, if SYSTEM
INPUT TESTS do not check okay, see INPUT CODE CHART. See Fig. 9 or 10.
ADJUSTMENTS
CRUISE CONTROL CABLE
1991
1) Ensure cruise control and accelerator cables are free of
bends and folds. Remove actuator cover. Loosen lock nuts and adjusting
nuts to free cables. Adjust accelerator cable "A" to correct
dimension. See Fig. 1 or 2.
2) Tighten lock nuts. Loosen adjustment bolts on intake air
plenum. Adjust plate so that inner cable free play is .04-.08" (1-2

2) System input tests cycle each cruise control switch and
sensor. Use analog voltmeter or Multi-Use Tester (MB991341) for system\
input check. Use multi-use tester according to operating instructions
provided with tester. Connect leads of analog voltmeter between cruise
control terminal and ground terminal of self-diagnostic connector. See
Fig. 6.
3) Turn ignition on and check items No. 1-3 on INPUT CODE
CHART. See Fig. 9 0r 10. Start engine and check items No. 4 and 5 on
INPUT CODE CHART. To display results of each input check, press SET
switch while holding RESUME switch in ON position. Read codes. Codes
will display if circuit tested is okay.
1992
1) System input tests should be performed if no trouble codes
are stored when performing SELF-DIAGNOSTICS. System input tests cycle
each cruise control switch and sensor.
2) Use Multi-Use Tester (MB991341) for system input check.
Use multi-use tester according to operating instructions provided with
tester. Connect leads of analog voltmeter between cruise control
terminal and ground terminal of self-diagnostic connector. See Fig. 6.
Turn ignition switch to ON position. Follow INPUT CODE CHART sequence.
See Fig. 9 or 10.
3) To display results of input check, move SET switch to ON
position. Then turn MAIN switch to ON position. Within one second,
activate RESUME switch. Codes will display if circuit tested is okay.
Fig. 9: 1991 Input Code Chart
Courtesy of Mitsubishi Motor Co.

Test No. 1 (Power & Ground Circuit)
1) Turn ignition on. When cruise control main switch is
turned to ON position, battery voltage should be present on terminal
No. 7 of cruise control unit connector.
2) If voltage is not present, check fuse No. 3 and replace as
necessary. If fuse is okay, check and repair harness as necessary.
Terminal No. 10 should be grounded at all times. If terminal No. 10 is
not grounded, repair harness.
Test No. 2 (Set Switch Circuits)
When set switch is turned to ON position, voltage should not
be present on terminal No. 5 of cruise control unit. When set switch
is turned to OFF position, battery voltage should be present on
terminal No. 5 of cruise control unit. If circuit does not test
correctly, replace switch as necessary or repair harness.
Test No. 3 (Resume Switch Circuit)
When resume switch is turned to ON position, voltage should
not be present on terminal No. 4 of cruise control unit. When resume
switch is turned to OFF position, battery voltage should be present on
terminal No. 4 of cruise control unit. If circuit does not test
correctly, replace switch as necessary or repair harness.
Test No. 4 (Vehicle Speed Sensor Circuit)
When vehicle moves slowly, voltage should alternate from zero
volts to 3-5 volts at terminal No. 15 of cruise control unit. If
circuit does not test correctly, replace sensor as necessary or repair
harness.
Test No. 5 (Actuator Circuit)
1) When cruise control main switch is in On position, voltage
should not be present on terminal No. 8 of cruise control unit.
2) When vehicle is accelerated using resume switch, voltage
should not be present on terminal No. 9 of cruise control unit. When
vehicle is coasting by using set switch, battery voltage should be
present on terminal No. 9.
3) When vehicle is accelerated using resume switch, battery
voltage should be present on terminal No. 20 of cruise control unit.
When vehicle is coasting by using set switch, voltage should not be
present on terminal No. 20 of cruise control unit. If circuit does not
test correctly, replace actuator as necessary or repair harness.
Test No. 6 (Stoplight Switch Circuit)
1) When brake pedal is pressed, battery voltage should be
present on terminal No. 3 of cruise control unit. If voltage is not
present, adjust or replace brake switch.
2) Battery voltage should be present at all times on terminal
No. 11 of cruise control unit. If voltage is not present, check fuse
no. 7. If fuse is okay, repair harness.
Test No. 7 (Inhibitor Switch Circuit)
1) When gear shift lever is moved to Neutral or Park
position, voltage should not be present on terminal No. 2 of cruise
control unit.
2) When gear shift lever is moved to any other position,
battery voltage should be present on terminal No. 2 of cruise control
unit. If circuit does not test correctly, replace switch as necessary
or repair harness.
Test No. 8 (Clutch Switch Circuit)
When clutch pedal is pressed, battery voltage should be
present at terminal No. 1 of cruise control unit. If circuit does not

Test No. 5 (Vehicle Speed Sensor Circuit)
When vehicle moves slowly, 0-2 or more volts should alternate
at terminal No. 19 of cruise control unit. If circuit does not test
correctly, replace sensor as necessary or repair harness.
Test No. 6 (Vacuum Pump Circuit)
1) When cruise system is in deceleration or release mode,
battery voltage should be present on terminals No. 26 and 13 of cruise
control unit. If circuit does not test correctly, replace vacuum pump
as necessary or repair harness.
2) When cruise system is in release mode, battery voltage
should be present on terminal No. 12 of cruise control unit. When
cruise system is in hold mode, voltage on terminals No. 12, 13 and 26
will go from battery voltage to zero volts depending on driving
conditions. If circuit does not test correctly, replace vacuum pump as
necessary or repair harness.
Test No. 7 (Stoplight Switch Circuit)
When brake pedal is pressed, battery voltage should be
present on terminal No. 15 of cruise control unit. If voltage is not
present, adjust or replace brake switch. If circuit does not test
correctly, replace switch as necessary or repair harness.
Test No. 8 (Clutch Switch Circuit)
When clutch pedal is pressed, battery voltage should be
present at terminal No. 1 of cruise control unit. If circuit does not
test correctly, replace switch as necessary or repair harness.
Test No. 9 (Inhibitor Switch Circuit)
When transmission is in Neutral position, battery voltage
should be present on terminal No. 1 of cruise control unit. If circuit
does not test correctly, replace switch as necessary or repair
harness.
Test No. 10 (Overdrive Switch Circuit)
When overdrive switch is pushed to ON position, battery
voltage should be present on terminal No. 11 of cruise control unit.
If circuit does not test correctly, replace switch as necessary or
repair harness.
Test No. 11 (Idle Switch & Throttle Position Sensor Circuit)
1) When accelerator pedal is pressed, 4.5-5.5 volts should be
present on terminal No. 4 (idle switch) of cruise control unit. When
accelerator pedal is released, voltage should not be present on
terminal No. 4 of cruise control unit.
2) When accelerator pedal is pressed to wide open throttle,
4.0-5.5 volts should be present on terminal No. 5 (throttle position
sensor) of cruise control unit. When accelerator pedal is released, .
5-.7 volts should be present on terminal No. 5 of cruise control unit.
If circuit does not test correctly, replace sensor as necessary or
repair harness.
Fig. 22: 1992 Cruise Control Unit Connector
Courtesy of Mitsubishi Motor Co.

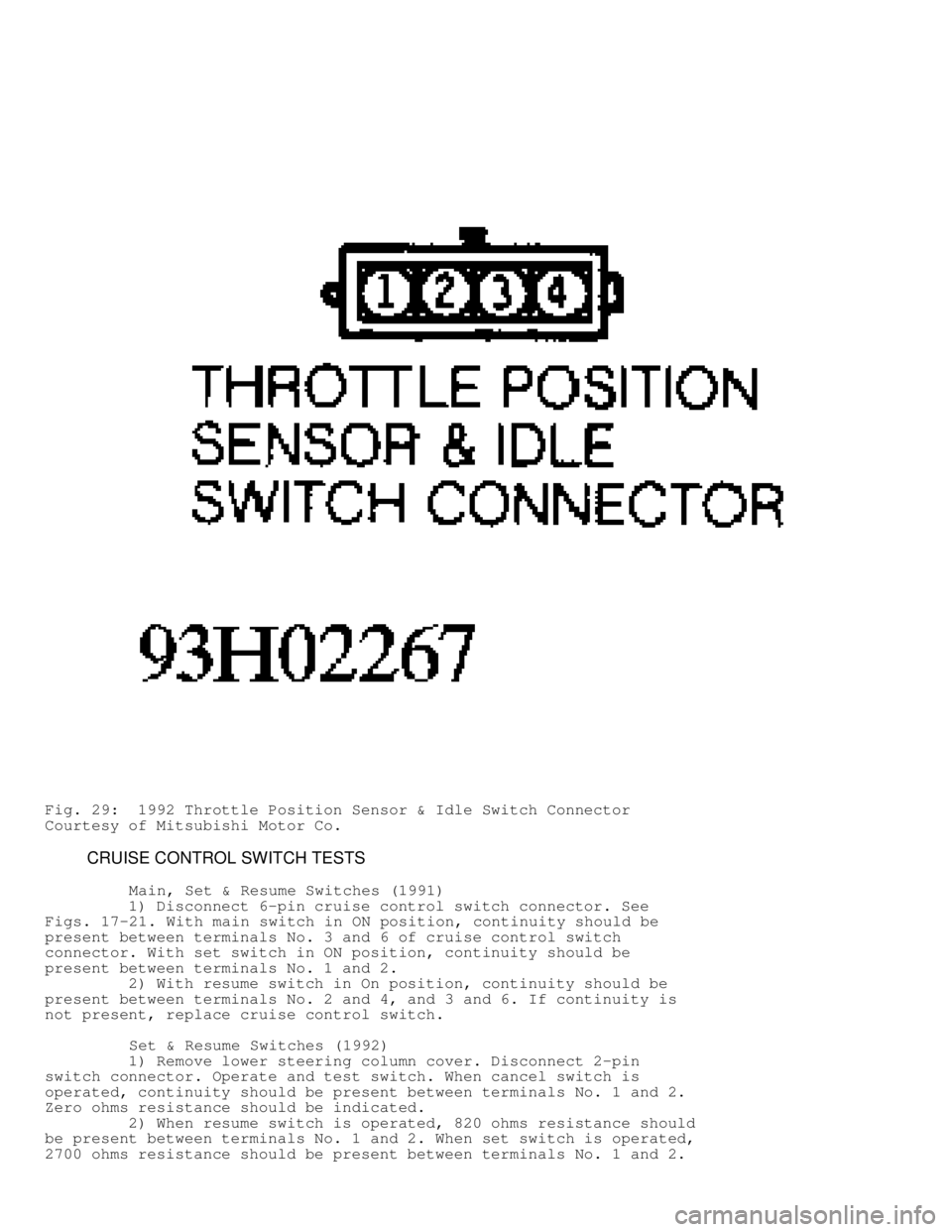

Fig. 29: 1992 Throttle Position Sensor & Idle Switch Connector
Courtesy of Mitsubishi Motor Co.
CRUISE CONTROL SWITCH TESTS
Main, Set & Resume Switches (1991)
1) Disconnect 6-pin cruise control switch connector. See
Figs. 17 -21. With main switch in ON position, continuity should be
present between terminals No. 3 and 6 of cruise control switch
connector. With set switch in ON position, continuity should be
present between terminals No. 1 and 2.
2) With resume switch in On position, continuity should be
present between terminals No. 2 and 4, and 3 and 6. If continuity is
not present, replace cruise control switch.
Set & Resume Switches (1992)
1) Remove lower steering column cover. Disconnect 2-pin
switch connector. Operate and test switch. When cancel switch is
operated, continuity should be present between terminals No. 1 and 2.
Zero ohms resistance should be indicated.
2) When resume switch is operated, 820 ohms resistance should
be present between terminals No. 1 and 2. When set switch is operated,
2700 ohms resistance should be present between terminals No. 1 and 2.

Replace cruise control switch if it does not test correctly.
Main Switch (1992)
1) In each switch position, continuity should be present
between terminals No. 2 and 7 for switch illumination. See Figs. 22-
29. When switch is moved to Neutral position, continuity should be
present between terminals No. 1 and 4.
2) When switch is moved to ON position, continuity should be
present between terminals No. 1, 4 and 5. Connect battery voltage to
terminal No. 5 and ground terminal No. 4.
3) Battery voltage should then be present on terminal No. 1
when main switch is moved to On position. Replace switch if it does
not test correctly.
BRAKELIGHT/STOPLIGHT SWITCH TEST
Disconnect switch connector. When brake pedal is pressed,
continuity should be present between terminals No. 2 and 3. See
Figs. 22 -29. When brake pedal is released, continuity should be
present between terminals No. 1 and 4. Replace switch if it does not
test correctly.
IDLE SWITCH & THROTTLE POSITION SENSOR TESTS
Throttle Position Sensor (1992)
1) Disconnect sensor connector. Resistance between terminals
No. 1 and 4 should be 3500-6500 ohms. Use an analog ohmmeter to
measure resistance between terminals No. 1 and 3. See Figs. 22-29.
2) Slowly open throttle valve to wide open throttle.
Resistance should change smoothly as throttle is opened. Replace
throttle position sensor if it does not test correctly.
Idle Switch (1992)
1) Disconnect throttle position sensor connector. Continuity
should be present between terminals No. 1 and 2 with accelerator pedal
released. See Figs. 22-29. Continuity should not be present with
accelerator pedal pressed.
2) If continuity is not present with accelerator released,
loosen throttle position sensor mounting screw. Turn throttle position
sensor completely clockwise. Recheck continuity. Replace throttle
position sensor if idle switch does not test correctly.
INHIBITOR SWITCH TEST
Disconnect switch connector. Shift transaxle into Neutral and
Park positions. On 1991 models, continuity should be present between
Black/Yellow wire terminals No. 3 and 4. On 1992 models, continuity
should be present between terminals No. 7 and 12. See Figs. 22-29. On
all models, if continuity is not present, adjust inhibitor switch. If
switch is adjusted properly, replace switch.
VACUUM PUMP TEST
1992
1) Remove vacuum pump connector. Resistance should be 50-60
ohms between terminal No. 1 and terminals No. 2 and 3. See Figs. 22-
29. Ensure solenoid valve makes operating noise when battery voltage
is applied between terminal No. 1 and terminals No. 2 and 3.
2) If solenoid valve does not make noise, replace vacuum pump
assembly. Apply battery voltage to terminals No. 1 and 4, motor should
operate. Replace vacuum pump if motor does not operate.
