1991 LEXUS SC400 Throttle Position sensor

Diag. Code 13RPM Signal Circuit (No.2)
CIRCUIT DESCRIPTION
Refer to RPM signal circuit (No. 1) on page TR±48.
Code No.Diagnostic Code Detecting ConditionTrouble Area
No NE signal to ECU for 0.1 sec. or more at
1,000 rpm or more.
wOpen or short in engine speed sensor
w circuit.
w Engine speed sensor
w ECU
13No 12 pulses of NE to ECU during the interval
between G1 and G2 pulses.
wOpen or short in engine speed sensor
w circuit.
w Mechanical system malfunction (skipping
teeth of timing belt, belt stretched)
w Engine speed sensor
w ECU
Deviation in G (G1, G2) and NE signal contin-
ues for 1 sec. during idling (throttle fully
closed) after engine warmed up.wMechanical system malfunction (skipping
teeth of timing belt, belt stretched)
w No. 1, No. 2 cam position sensor
w ECU
DIAGNOSTIC CHARTDIAGNOSTIC CHART
Inspect sensor installation. Check if any teeth of NE
signal plate are broken
Check valve timing (Check for loose and jumping teeth
of timing belt (See page EM±51)). Tighten the sensor.
Replace signal plate.
Adjust valve timing
(Repair or replace timing belt).
HINT: Perform troubleshooting of diag. code 12 first. If no trouble is found, trouble\
shoot the following mechanical systems.
Check for momentary interruption
(See page TR±23).
TR±52±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

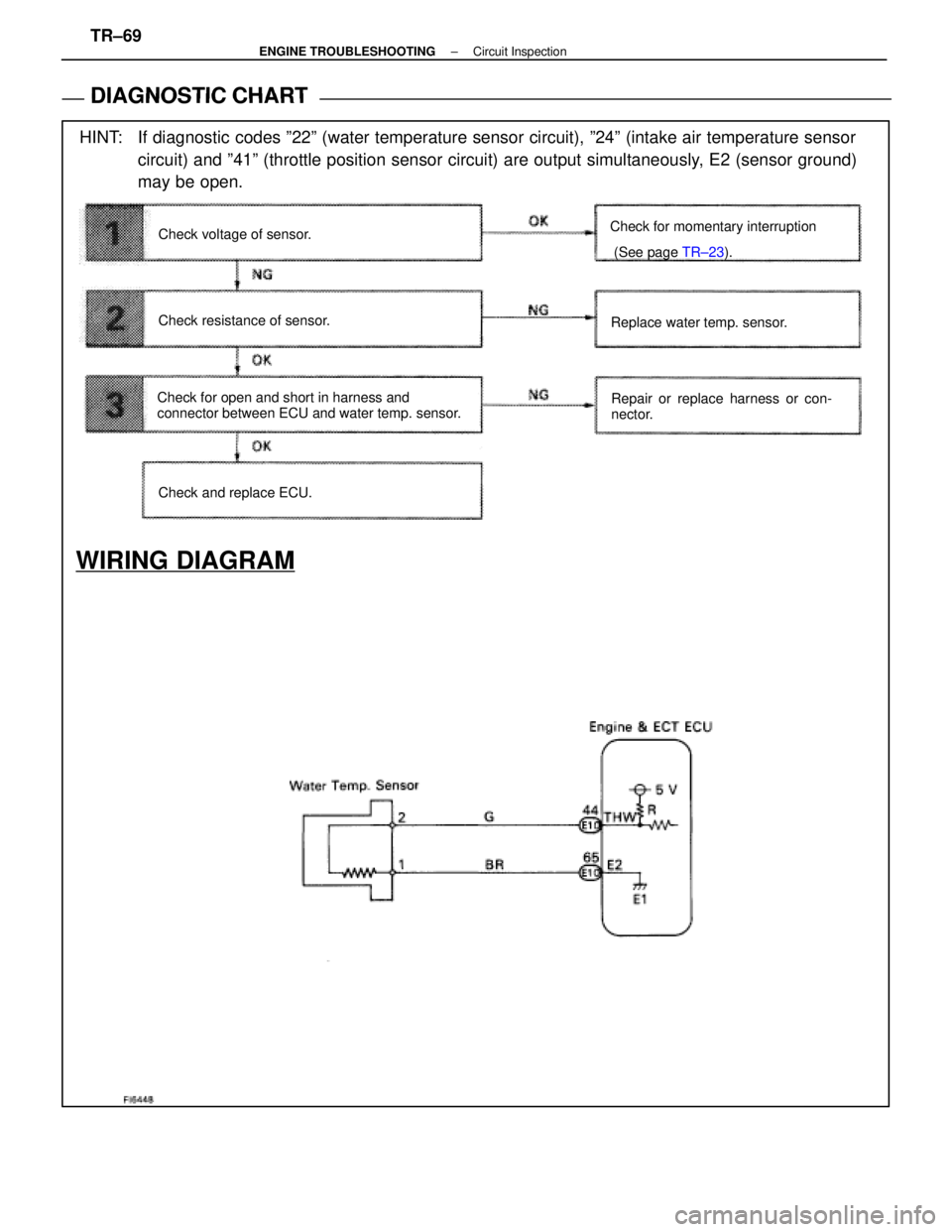

DIAGNOSTIC CHART
DIAGNOSTIC
CHART
HINT: If diagnostic codes º22º (water temperature sensor circuit), º\
24º (intake air temperature sensorcircuit) and º41º (throttle position sensor circuit) are output\
simultaneously, E2 (sensor ground)
may be open.
WIRING DIAGRAM
Check and replace ECU. Repair or replace harness or con-
nector.
Replace water temp. sensor.
Check voltage of sensor.
Check resistance of sensor.
Check for open and short in harness and
connector between ECU and water temp. sensor. Check for momentary interruption
(See page
TR±23).
TR±69±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

NGOK
OKNG
OKNG
INSPECTION PROCEDURE
HINT: If diagnostic codes º22º (water temperature sensor circuit), º\
24º (intake air temperature sensor circuit)and º41º (throttle position sensor circuit) are output simultane\
ously, E2 (sensor ground) may be open.
1Check voltage between terminals THW and E2 of engine & ECT ECU connector\
.
C
OK
P(2) Connect the Check Harness A.(See page TR±30)
(2) Turn ignition switch on.
Measure voltage between terminals THW and E2 and
engine & ECT ECU connector.
Check for momentary interruption
(See Page TR±23).
2Check water temp. sensor.
C
OK
PDisconnect the water temp. sensor connector.
(See page FI±99).
Measure resistance between terminals.
Resistance is within Acceptable Zone on chart.
Replace water temp. sensor.
3
Check for open and short in harness and connector between engine & ECT ECU and\
water temp.
sensor (See page IN±27).
Repair or replace harness or connector.
Check and replace engine & ECT ECU.
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±70
WhereEverybodyKnowsYourName

Diag. Code 24Intake Air Temp. Sensor Circuit
CIRCUIT DESCRIPTION
The intake air temp. sensor is built into the air flow meter and senses the\
intake air temperature.
The structure of the sensor and connection to the ECU is the same as in the\
water temp. sensor shown on page
TR±68.
If the ECU records the diagnostic code º24º, it operates the fail \
safe function, keeping the intake air temperature
at a constant 20 5C (68 5F).
Code No.Diagnostic Code Detecting ConditionTrouble Area
24Open or short in intake air temp. sensor circuit
for 0.5 sec. or more.
Open or short in intake air temp. sensor circuit.

Intake air temp. sensor

ECU
DIAGNOSTIC CHARTDIAGNOSTIC CHART
HINT: If diagnostic codes º22º (water temperature sensor circuit), º\
24º (intake air temperature sensor
circuit) and º41º (throttle position sensor circuit) are output simultaneousl\
y, E2 (sensor ground) may
be open.
WIRING DIAGRAM
Check and replace ECU. Replace water temp. sensor.
Check for momentary interruption
(See page
TR±23).
Repair or replace harness or
connector.
Check voltage of sensor.
Check resistance of sensor.
Check for open and short in harness and
connector between ECU and water temp. sensor.
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±72
WhereEverybodyKnowsYourName

Diag. Code 41, 47(Sub±) Throttle Position Sensor Circuit
CIRCUIT DESCRIPTION
The throttle position sensor is mounted in the throttle body
and detects the throttle valve opening angle. When the
throttle valve is fully closed, the IDL contacts in the throttle
position sensor are on, so the voltage at the terminal IDL of
the ECU become 0 V. At this time, a voltage of approximately
0.7 V is applied to the terminal VTA of the ECU. When the
throttle valve is opened, the IDL contacts go off and thus the
power source voltage of approximately 12 V in the ECU is ap-
plied to the terminal IDL of the ECU. The voltage applied to
the terminal VTA of the ECU increases in proportion to the
opening angle of the throttle valve and becomes approxi-
mately 3.5±5.0 V when the throttle valve is fully opened. The
ECU judges the vehicle driving conditions from these signals
input from the terminals VTA and IDL, and uses them as one
of the conditions for deciding the air±fuel ratio correction,
power increase correction and fuel±cut control etc. The sub±
throttle position sensor is built and operates in the same way
as the main throttle position sensor. This sensor is used for
traction control. The sub±throttle valve is opened and closed
by the sub±throttle actuator according to signals from the
TRAC ECU to control the engine output.
Code No.Diagnostic Code Detecting ConditionTrouble Area
41
(1) Open or short in throttle position sensor circuit(VTA1) for 0.5 sec. or more.
Open or short in throttle position sensor cir-
cuit.
41(2) IDL1 contact is ON and VTA1 output exceeds 1.5 V for 0.5 sec. or more.
Throttle position sensor

ECU
47
(1) Open or short in sub±throttle position sensor
circuit (VTA2) for 0.5 sec. or more.
Open or short in sub±throttle position sensor
circuit.
47(2) IDL2 contact is ON and VTA2 output exceeds 1.5 V for 0.5 sec. or more.
Sub±throttle position sensor

ECU
HINT:
Diag. code 41 is for the throttle position sensor circuit.
Diag. code 47 is for the sub±throttle position sensor circuit.
w When the connector for the (sub±) throttle position sensor is disconnec\
ted, diagnostic code 41 or 47 is not
displayed. Diagnostic code 41 or 47 is displayed only when there is an open or short in the VTA signal circuit
of the (sub±) throttle position sensor.
w Signals from the (sub±) throttle position sensor are also input to the TRAC ECU, So when a malfu\
nction
occurs on the TRAC side, code 41 or 47 may be displayed.
TR±94
±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

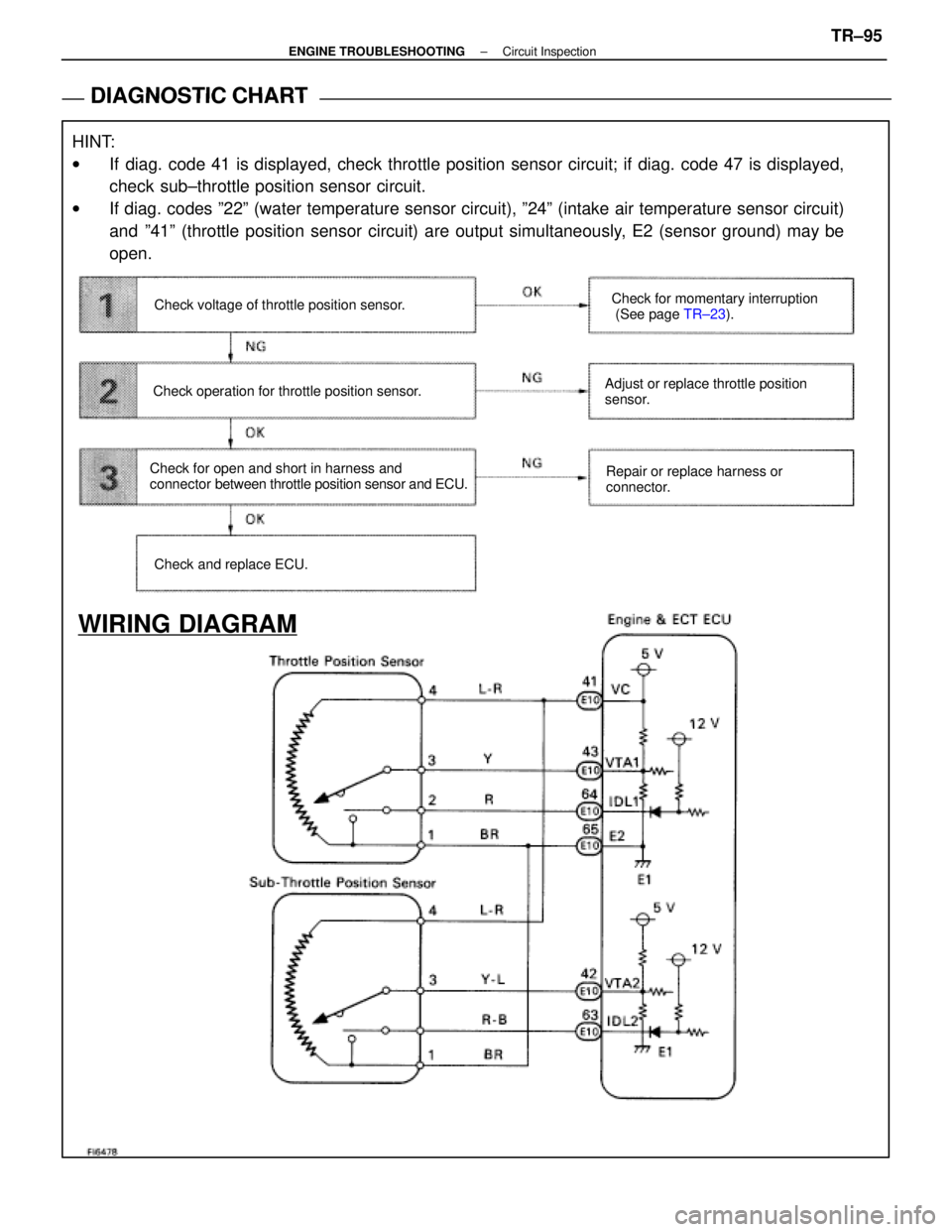

DIAGNOSTIC CHART
DIAGNOSTIC
CHART
HINT:
wIf diag. code 41 is displayed, check throttle position sensor circuit; if d\
iag. code 47 is displayed,
check sub±throttle position sensor circuit.
w If diag. codes º22º (water temperature sensor circuit), º24º\
(intake air temperature sensor circuit)
and º41º (throttle position sensor circuit) are output simultaneous\
ly, E2 (sensor ground) may be
open.
WIRING DIAGRAM
Check and replace ECU. Adjust or replace throttle position
sensor.
Check for momentary interruption
(See page
TR±23).
Repair or replace harness or
connector.
Check voltage of throttle position sensor.
Check operation for throttle position sensor.
Check for open and short in harness and
connector between throttle position sensor and ECU.
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±95
WhereEverybodyKnowsYourName

NGOK
INSPECTION PROCEDURE
HINT:
wIf diag. code 41 is displayed, check throttle position sensor circuit. If \
diag. code 47 is displayed, check
sub±throttle position sensor circuit.
w If diag. codes º22º (water temperature sensor circuit), º24º\
(intake air temperature sensor circuit) and º41º
(throttle position sensor circuit) are output simultaneously, E2 (sensor ground) may be open.
#Check voltage between terminals VTA1, 2, IDL1, 2 and E2 of engine & ECT ECU connector.
C
OK
Hint
P(2) Connect the Check Harness A.
(See page TR±30).
(2) Turn ignition switch on.
(2) For sub±throttle position sensor, remove intake air duct and disconnect sub±throttle valve step motor
connector.
Measure voltage between terminals VTA1, 2, IDL1, 2
and E2 of engine & ECT ECU connector when the
(sub±) throttle valve is opened gradually from the closed
condition.
The voltage should increase steadily in proportion to the
throttle valve opening angle.
Check for Momentary interruption
(See page TR±23).
Go to step [2].
TR±96±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

OKNG
OKNG
2Check (sub±) throttle position sensor.
C
OK
Hint
P(2) Remove intake air duct.
(2) Disconnect (sub±) throttle position sensor connec-tor.
Measure resistance between terminals 3, 2, and 1 of
(sub±) throttle position sensor connector when the
throttle valve is opened gradually from the closed condi-
tion.
Resistance between terminals 3 and 1 should increase
gradually in accordance with the throttle valve opening
angle.
Adjust or replace (sub±) throttle position sensor
(See page FI±73).
3Check for open and short in harness and connector between engine & ECT E\
CU and
(sub±) throttle position sensor (See page IN±27).
Repair or replace harness or connector.
Check and replace engine & ECT ECU.
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±97
