[4] DIAGNOSTIC CODE CHART

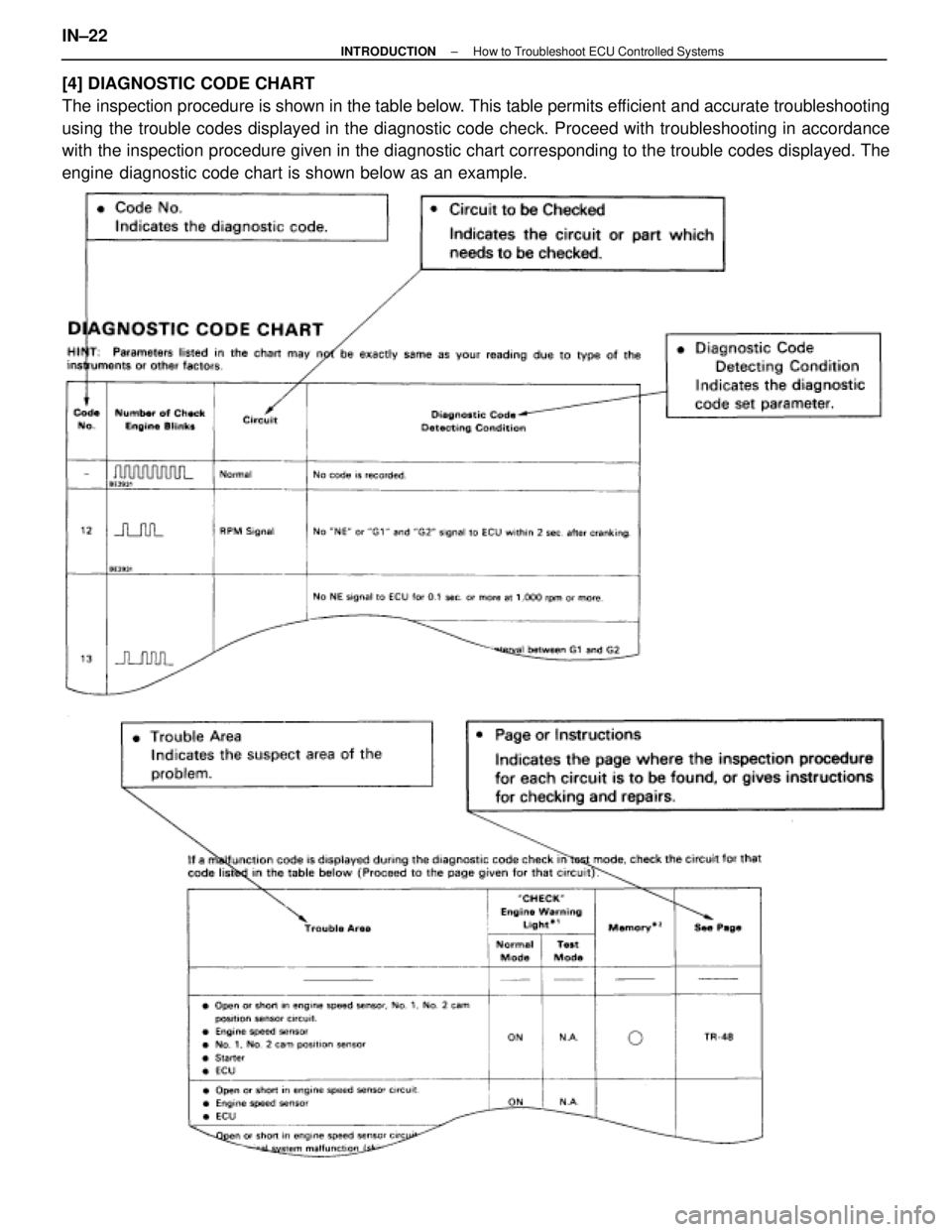

The inspection procedure is shown in the table below. This table permits efficient and accurate troubleshooting
using the trouble codes displayed in the diagnostic code check. Proceed with \
troubleshooting in accordance
with the inspection procedure given in the diagnostic chart corresponding to the trouble codes displayed. The
engine diagnostic code chart is shown below as an example.
IN±22±
INTRODUCTION How to Troubleshoot ECU Controlled Systems
WhereEverybodyKnowsYourName

Location of Connectors in Engine Compartment
wLocation of connectors
This diagram shows the wire harnesses and connectors used in one system.\
The connector shows the harness side connector, so when checking the part side connector (sensor, ac-
tuator, etc.), be careful not to mistake the terminal positions.
±
INTRODUCTION How to Troubleshoot ECU Controlled SystemsIN±25
WhereEverybodyKnowsYourName

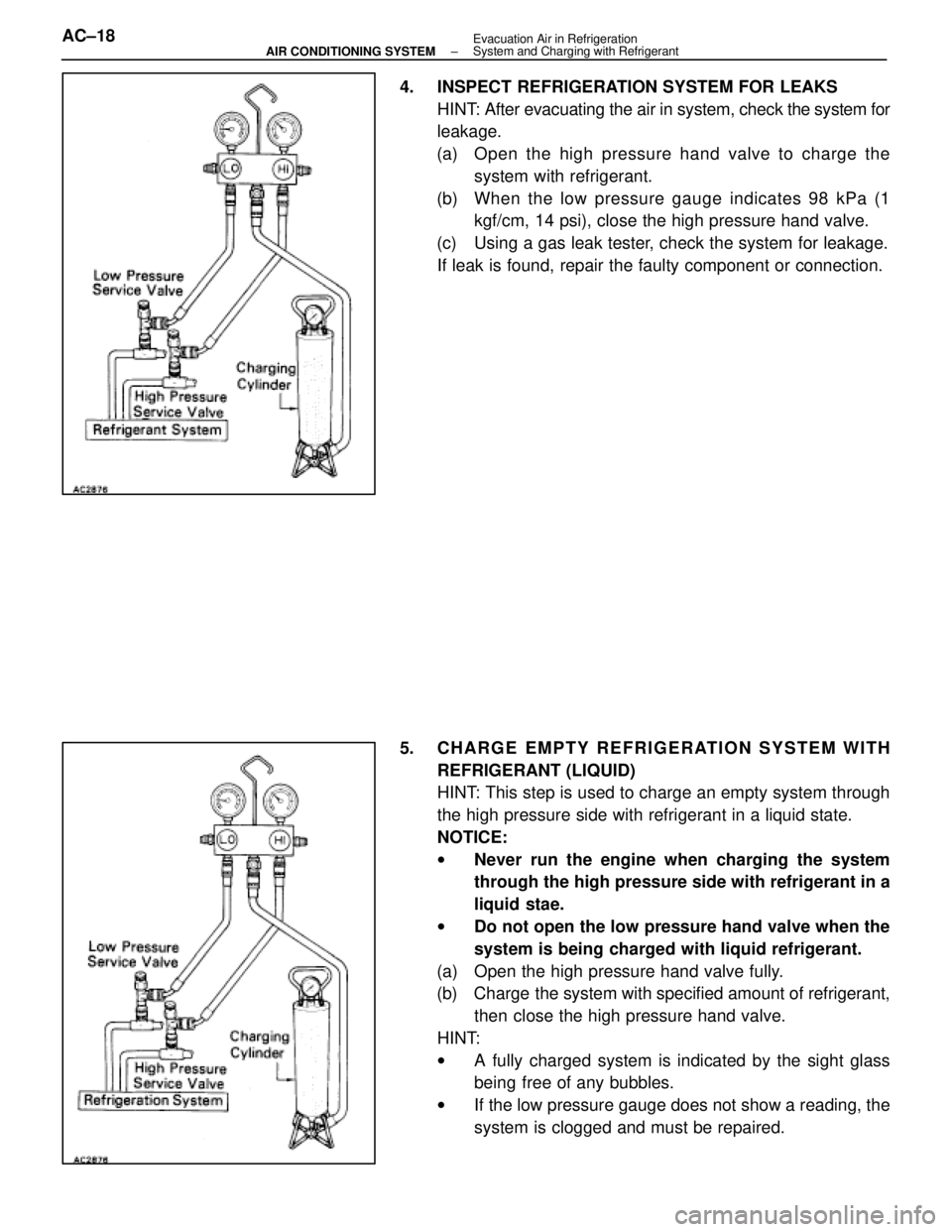

4. INSPECT REFRIGERATION SYSTEM FOR LEAKSHINT: After evacuating the air in system, check the system for
leakage.
(a) Open the high pressure hand valve to charge the system with refrigerant.
(b) When the low pressure g auge indicates 98 kPa (1
kgf/cm, 14 psi), close the high pressure hand valve.
(c) Using a gas leak tester, check the system for leakage. If leak is found, repair the faulty component or connection.
5. CHARGE EMPTY REFRIGERATION SYSTEM WITH REFRIGERANT (LIQUID)
HINT: This step is used to charge an empty system through
the high pressure side with refrigerant in a liquid state.
NOTICE:
wNever run the engine when charging the system
through the high pressure side with refrigerant in a
liquid stae.
w Do not open the low pressure hand valve when the
system is being charged with liquid refrigerant.
(a) Open the high pressure hand valve fully.
(b) Charge the system with specified amount of refrigerant, then close the high pressure hand valve.
HINT:
w A fully charged system is indicated by the sight glass
being free of any bubbles.
w If the low pressure gauge does not show a reading, the
system is clogged and must be repaired.
AC±18
±
AIR CONDITIONING SYSTEM Evacuation Air in Refrigeration
System and Charging with Refrigerant
WhereEverybodyKnowsYourName

DIAGNOSTIC CODE CHART
If a malfunction code is displayed during the diagnostic code check (sens\
or check), check the circuit listed for
that code in the table below (Proceed to the page given for that circuit.)\
Code No.Diag. Code Detecting Condition
00 Normal
11 *1 Open or short in room temperature sensor circuit.
12 Open or short in ambient temperature sensor circuit.
13 Open or short in evaporator temperature sensor circuit.
14*2 Open or short in water temperature sensor circuit.
21*3 Open in solar sensor circuit.
21*3
 Short in solar sensor circuit.
22*4
 All conditions below are detected for 3 secs. or more.
 (a) Engine rpm : 450 rpm or more.
 (b) Ratio between engine and compressor rpm deviates 20% or more in c\
omparison to normal
operation.
23
 Open in pressure sensor circuit.
 Abnormal refrigerant pressure below 206 kPa (2.1 kgf/cm, 30 psi)
over 2,650 kPa (27 kgf/cm, 385 ps\
i)
31 Short to ground or power source circuit in Air Mix Damper position sens\
or circuit.
32 Short to ground or power source circuit in Air Inlet Damper position se\
nsor circuit.
33 Short to ground or power source circuit in Air Outlet Damper position s\
ensor circuit.
41 Air mix damper position sensor value does not change even if ECU operat\
es air mix servomotor.
42 Air inlet damper position sensor value does not change even if ECU oper\
ates air inlet servomotor.
43 Air outlet damper position sensor value does not change even if ECU ope\
rates air outlet
servomotor.
HINT: *1 If the room temp. is approx. ±20 °C (±4 °F) or lower, code 11 may be output even though the system
is normal.
*2 If the ambient temperature is approx. ±50 °C (±58 °F) or lower, a malfunction code may be output
even though the system is normal.
*3 If the check is being performed in a dark place, diagnostic code 21 (so\
lar sensor circuit abnormal) could be displayed.
In this case, perform diagnostic code check again while shining a light,\
such as an inspection light,
on the solar sensor.
If code 21 is still displayed, there could be trouble in the solar senso\
r circuit
AC±28
±
AIR CONDITIONING SYSTEM Troubleshooting
WhereEverybodyKnowsYourName

Diag. Code 14Water Temperature Sensor Circuit
CIRCUIT DESCRIPTION
This sensor detects the coolant temperature and sends the appropriate signal\
s to the air conditioner
control assembly. These signals are used for warm up control when the engine is cold.
Code No.Diag. Code Detecting ConditionTrouble area
14
Open or short in water temperature sensor
circuit.
Water temperature sensor.

Harness or connector between water
temperature sensor and A/C control as-
sembly.

A/C control assembly.
DIAGNOSTIC CHART
Check voltage between terminals TW and
SG air conditioner control assembly con-
nector.
Check water temperature sensor.
Check harness and connector between air
conditioner control assembly and water tem-
perature sensor.(See page IN-27).
Check and replace air conditioner control
assembly. Proceed to next circuit inspection
shown on matrix chart (See page
AC-36
). However, when Diag. code
14 is displayed, check and replace
air conditioner control assembly.
Replace water temperature
sensor.
Repair or replace harness or
connector.
AC±50±
AIR CONDITIONING SYSTEM Troubleshooting
WhereEverybodyKnowsYourName

Diag. Code 22Compressor Lock Sensor Circuit
CIRCUIT DESCRIPTION
This sensor sends 4 pulses per engine revolution to the air conditioner cont\
rol assembly.
If the number ratio of the compressor speed, divided by the engine speed i\
s smaller that a predetermined
value, the air conditioner control assembly turns the compressor off. And, the indicator flashes at about
1 second intervals.
Code No.Diag. Code Detecting ConditionTrouble area
22
All conditions below are detected for 3 secs.
or more. (a) Engine rpm: 450 rpm or more
(b) Ratio between engine and compressor
rpm deviates 20% or more in comparison to
normal operation.
Compressor

Compressor drive belt.

Compressor lock sensor.

Harness and connector between compressor
and A/C control assembly.

A/C control assembly.
DIAGNOSTIC CHART
Check compressor.
Check compressor lock sensor.
Check harness and connectors between air
conditioner control assembly and compres-
sor sensor (See page IN-27).
Proceed to next circuit inspection shown on
matrix chart (See page AC-36). However,
when Diag. code 22 is displayed, check
and replace air conditioner control assem-
bly.
Adjust drive belt tension or repair
compressor.
Replace compressor lock sensor.
Repair or replace harness or
connector.
AC±54±
AIR CONDITIONING SYSTEM Troubleshooting
WhereEverybodyKnowsYourName

INSPECTION PROCEDURE
Check compressor
(1). Check compressor drive belt tension (See page AC-104).
(2). Check if the compressor does not lock during with engine started and blo\
wer switch and A/C switch ON.
Adjust drive belt tension or repair compressor.
Check compressor lock sensor.
Disconnect compressor lock sensor connector.
Measure resistance between terminals 1 and 2 of
compressor lock sensor connector.
Resistance:at 25°C (77°F) : 530 ±650

at 100°C (212°F) : 670 ±890

Replace compressor lock sensor.
Check for open and short in harness and connectors between air conditioner
control assembly and compressor lock sensor (See page IN-27).
Repair or replace harness or connector.
Proceed to next circuit inspection shown on
matrix chart (See page AC-36).However,
when Diag. code 22 is displayed, check and
replace air conditioner control assembly.
±
AIR CONDITIONING SYSTEM TroubleshootingAC±55
WhereEverybodyKnowsYourName

Diag. Code 23Compressor Lock Sensor Circuit
CIRCUIT DESCRIPTION
The pressure switch sends the appropriate signals to the air conditioner co\
ntrol assembly when the air
conditioner refrigerant pressure drops too low or rises too high. When the air cond\
itioner control assem-
bly receives these signals, it outputs signals via the Engine & ECT ECU to switch off the compressor
relay and turns the magnet clutch off.
Code No.Diag. Code Detecting ConditionTrouble area
23

Open in pressure sensor circuit.

Abnormal refrigerant pressure.
below 206 kPa (2.1 kgf/cm
2, 30 psi)
over 2,650 kPa (27 kgf/cm2, 385 psi)

Pressure switch.

Harness or connector between pressure switch
and ECU. Refrigerant pipe line.

ECU.
DIAGNOSTIC CHART
Check voltage between terminals LP of air
conditioner control assembly and body
ground.
Check pressure switch.
Check harness and connector between air
conditioner control assembly and pressure
switch and body ground
(See page IN-27).
Check and replace air conditioner control
assembly.
Proceed to next circuit inspection
shown on matrix chart (See page
AC-36 ).
Replace pressure switch
Repair or replace harness or
connector.
