92 INSTALLATION
RESOiANCE CHAMBER
03UOBZ-154
Accelerator cable
1. Install the accelerator cable.
2. Adjust the cable deflection by turning nut A.
Deflection: 1-3mm (0.04-0.12 in)
Battery duct, battery carrier, and battery
1. Install the battery duct.
Tightening torque:
7.8-l 1 Nlm (80-l 10 cm-kg, 69-96 In-lb)
2. Install the battery carrier.
Tightening torque:
7.8-l 1 N*m (80-l 10 cm-kg, 69-96 in-lb)
3. Install the battery and the battery bracket.
Tightening torque:
2.9-5.9 N*m (30-60 cm-kg, 26-52 in-lb)
Air cleaner assembly
1. Install the air cleaner assembly.
Tightening torque
@: 19-25 N#m (1.9-2.6 m-kg, 14-19 ft-lb)
@: 7.8-l 1 N*m (80-l 10 cm-kg, 69-95 In-lb)
2. Connect the air flow sensor connector.
Resonance chamber
I, Install the resonance chamber.
Tightening torque:
7.8-l 1 N#m (80-l 10 cm-kg, 69-95 In-lb)
Under cover and side cover
1. Install the under cover and side cover.
Steps After Installation
1. If the engine oil was drained, fill with the specified amount and type of engine oil.
(Refer to Section D.)
2. Fill the radiator with the specified amount and type of engine coolant.
(Refer to Section E.)
3. If the transaxle oil was drained, fill with the specified amount and type of transaxle oil.
(Refer to Sections J2, K.)
4. Connect the negative battery cable.
5. Start the engine and check the following:
(1) Engine oil, transaxle oil, and engine coolant leakage.
(2) ignition timing, idle speed. (Refer to page 82-8.)
(3) Operation of emission control system.
6. Perform a road test.
7. Recheck the engine oil and engine coolant levels.
B2-102
2311082.047

D OIL PRESSURE

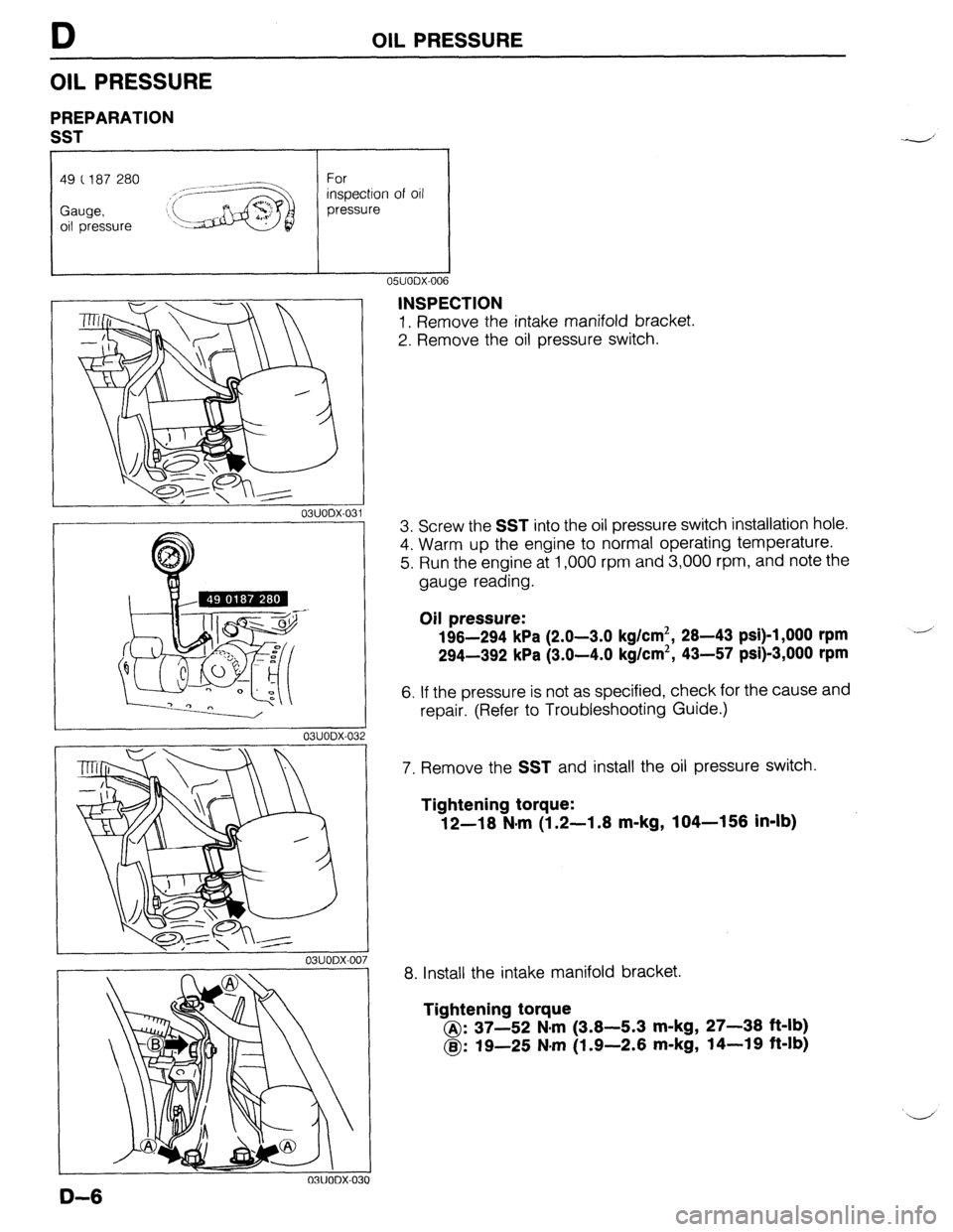

OIL PRESSURE
PREPARATION
SST
49 C 187 280
Gauge,
oil pressure
03UODX-03
2
03UODX-007
INSPECTION
1, Remove the intake manifold bracket.
2. Remove the oil pressure switch.
3. Screw the SST into the oil pressure switch installation hole.
4. Warm up the engine to normal operating temperature.
5. Run the engine at 1,000 rpm and 3,000 rpm, and note the
gauge reading.
Oil pressure:
196-294 kPa (2.0-3.0 kg/cm2, 28-43 psi)-1,000 rpm
294-392 kPa (3.0-4.0 kg/cm2, 43-57 psi)-3,000 rpm
6. If the pressure is not as specified, check for the cause and
repair. (Refer to Troubleshooting Guide.)
7. Remove the SST and install the oil pressure switch.
Tightening torque:
12-18 N-m (1.2-l .8 m-kg, 104-156 in-lb)
8. Install the intake manifold bracket.
Tightening torque
@: 37-52 N*m (3.8-5.3 m-kg, 27-38 ft-lb)
0: 19-25 N,m (1.9-2.6 m-kg, 14-19 ft-lb)

ENGINE OIL, OIL FILTER D
b
I
03UODX-00
ONODX-01
r
03UODX-011
ENGINE OIL
INSPECTION
1. Be sure the vehicle is on level ground.
2. Warm up the engine to normal operating temperature and
stop it.
3. Wait for five minutes.
4. Remove the oil level gauge and check the oil level and con-
dition.
5. Add or replace oil as necessary.
Note
l The distance between the L and F marks on the level
gauge represents 0.8 liter (0.85 US qt, 0.70 Imp qt).
REPLACEMENT
Warning
l Be careful when draining; the oil is hot.
1. Warm up the engine to normal operating temperature and
stop it.
2. Remove the oil filler cap and the oil pan drain plug.
3. Drain the oil into a suitable container.
4. Install a new gasket and the drain plug.
Tightening torque:
29-41 N,m (3.0-4.2 m-kg, 22-30 ft-lb)
5. Refill the engine with the specified type and amount of en-
gine oil.
6. Refit the oil filler cap.
7. Run the engine and check for leaks.
8. Check the oil level and add oil if necessary.
Oil pan capacity
B6 SOHC
BP SOHC and DOHC
liters (US qt, Imp qt)
3.0 (3.2, 2.6)
3.6G.843.2)
w
03UODX-011
D-7

D OIL FILTER, OIL COOLER
r
\/
OSUODX-0
‘I . 03UODX-01

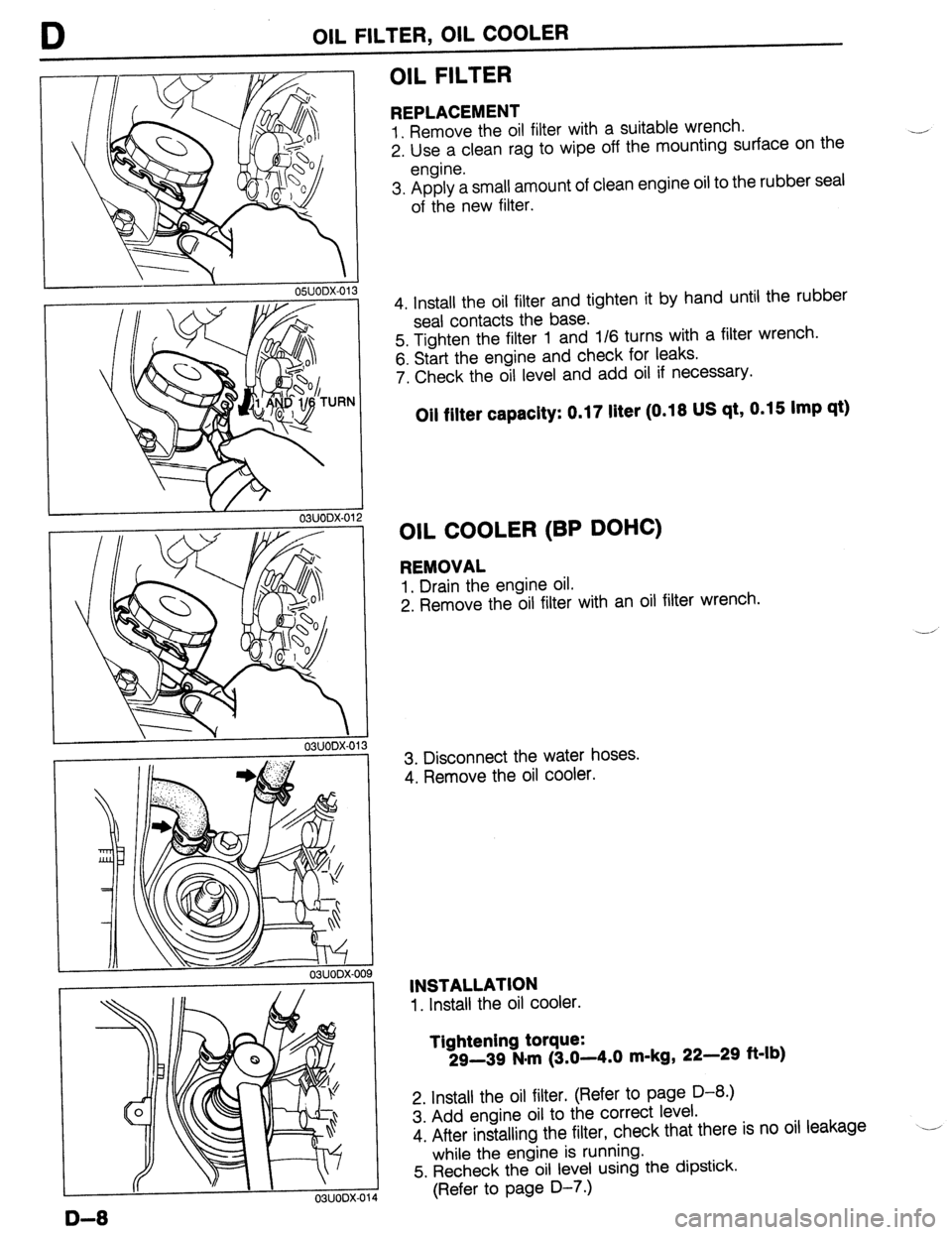

OIL FILTER
REPLACEMENT
1. Remove the oil filter with a suitable wrench.
2. Use a clean rag to wipe off the mounting surface on the
engine.
3. Apply a small amount of clean engine oil to the rubber seal
of the new filter.
4. Install the oil filter and tighten it by hand until the rubber
seal contacts the base.
5. Tighten the filter 1 and 116 turns with a filter wrench.
6. Start the engine and check for leaks.
7. Check the oil level and add oil if necessary.
Oil filter capacity: 0.17 liter (0.18 US qt, 0.15 Imp qt)
OIL COOLER (BP DOHC)
REMOVAL
1. Drain the engine oil.
2. Remove the oil filter with an oil filter wrench.
3. Disconnect the water hoses.
4. Remove the oil cooler.
INSTALLATION
1. Install the oil cooler.
Tightening torque:
29-39 Nnrn (3.0-4.0 m-kg, 22-29 ft-lb)
2. Install the oil filter. (Refer to page D-8.)
3. Add engine oil to the correct level.
4. After installing the filter, check that there is no oil leakage
while the engine is running.
5. Recheck the oil level using the dipstick.
(Refer to page D-7.)

OIL PAN
I 03UODX.02
05UOBX.20
1
05UODX-021
56 SOHC
03UODX-02
3P s
03UODX-02!
1. Remove all foreign material from the contact surfaces.
2. Apply silicone sealant to the contact surfaces of a new oil
pan gasket, shown in the figure.
3. Install new gaskets onto the oil pump body and the rear
cover with the projections in the notches shown in the figure.
4. Apply a continuous bead of silicone sealant to the oil pan
along the inside of the bolt holes and overlap the ends.
5. Install the oil pan.
B6 SOHC
Tightening torque:
7.6-11 N-m (80-110 cm-kg, 69-95 in-lb)
BP SOHC
Tightening torque
A : 7.8-l 1 N-m (80-l 10 cm-kg, 69-95 in-lb)
8 B : 37-52 N.m (3.8-5.3 m-kg, 27-38 ft-lb)
Steps After Installation
1. Install the under cover and side cover.
2. Fill with the specified amount and type of engine oil.
3. Connect the negative battery cable.
4. Start the engine and check for leaks.
5. Check the oil level and add oil if necessary.
D-12

ENGINE COOLANT E
ENGINE COOLANT
PREPARATION
SST
49 9200 145
For 49 9200 146
For
inspection of inspection of
cooling system Adapter A cooling system
pressure (Part of pressure
49 9200 145)
05UOEX-00
INSPECTION
Warning
l Never remove the radiator cap while the engine is
hot.
l Wrap a thick cloth around the cap when removing it.
l When removing the radiator cap, loosen it slowly
to the first stop until the pressure in the radiator is
released, and then remove it.
03UOEX~006
Coolant Level (Engine cold)
1. Verify that the coolant level is near the radiator filler neck.
2. Remove the coolant level gauge and check the coolant level.
Coolant Quality
1. Verify that there is no buildup of rust or scale around the
radiator cap or radiator filler neck.
2. Verify that coolant is free of oil. Replace the coolant if
necessary.
Coolant Leakage
1. Connect a radiator tester (commercially available) and the
SST to the radiator filler neck.
2. Apply
103 kPa (1.05 kg/cm2, 15 psi) pressure to the
system.
3. Verify that the pressure is held.
If not, check for coolant leakage.
E-5

RADIATOR, THERMOSTAT t
THERMOSTAT
REMOVAL / INSTALLATION INSPECTION
Check for the following and repair or replace as necessary.
1. Cracks, damage, and water leakage.
2. Bent fins (repair with a screwdriver).
3. Distorted or bent radiator inlet.
Steps After Installation
1. Fill the radiator with the specified amount and type of en-
gine coolant. (Refer to page E-6.)
2. Connect the negative battery cable.
3. Start the engine and check for leaks.
Caution
l Position the hose clamp in the original location on the hose, and squeeze the clamp lightly
with large pliers to ensure a good fit.
1. Disconnect the negative battery cable.
2. Drain the engine coolant.
3. Remove in the order shown in the figure.
4. Install in the reverse order of removal.
SOHC AND BP SOHC : \,
19-26 N&6.9-2.6 m-kg, 14-19 ft-lb) 19-26 N-m (l.S--2&m-kg, 14-Wft-lb)
23UOEX-006
1. Water thermoswitch connector
2. Radiator hose upper
3. Thermostat cover
4. Thermostat gasket 5. Thermostat
Inspection . . . . .., .., ,.. ,.. . . . ,.. . . . . . . . . . . . . . . . . . . . . . . below
Installation Note ..,....................... page E-10
Installation Note . . . . . . . . . . . . . . . . . . . . . . . . . .
page E-10
INSPECTION
1. Visually check that the thermostat valve is airtight.
2. Place the thermostat and a thermometer in water.
3. Heat the water and check the following:
Initial-opening temperature
Main: 86.5-89.5°C (188-193OF)
Sub : 83.5-86.5OC (182-188OF)
Full-open temperature: 1 OOOC (212OF)
Full-open lift
OSUOEX-019
Main: 8.0mm (0.31 In) min.
Sub : 1.5mm (0.06 in) min.
E-9

E THERMOSTAT
Installation Note JIGGLE PIN Thermostat
6 8 8
1. Install the thermostat into the cylinder head with the jiggle
pin at the top. ..__
Thermostat gasket
1. Install a new gasket with the seal print side facing the cylin-
der head.
03UOEX-014
Steps After Installation
1. Fill the radiator with the specified amount and type of engine coolant. (Refer to page E-6.)
2. Connect the negative battery cable,
3. Start the engine and check for leaks.
03UOEX-015
.-
E-IO
