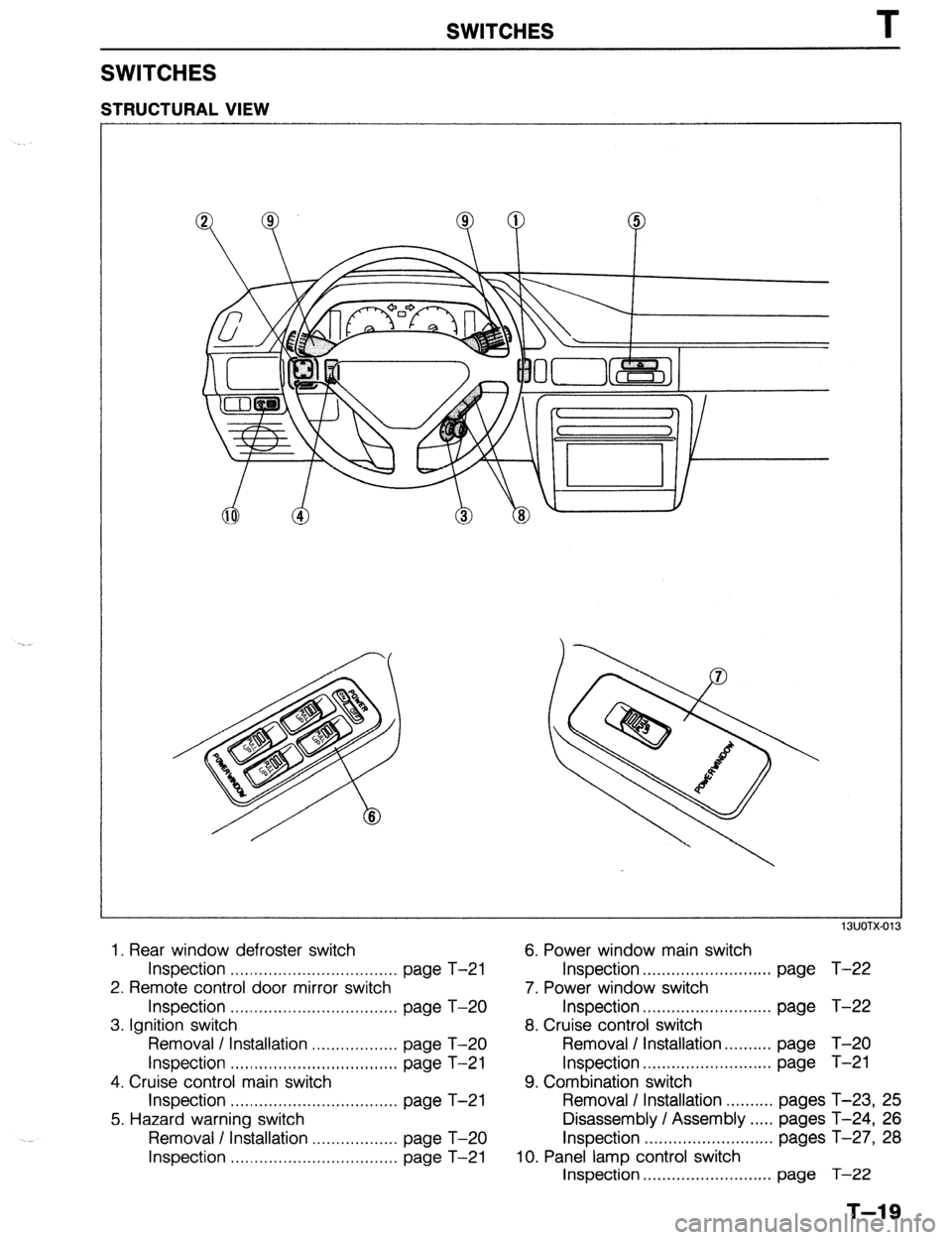

SWITCHES T
SWITCHES
STRUCTURAL VIEW
13UOfX-0'
1. Rear window defroster switch 6. Power window main switch
Inspection . . . . #. . . . . . . . . . . . . . . ..,. . . . . . . . . . . . page T-21 Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . .
page T-22
2. Remote control door mirror switch
7. Power window switch
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page T-20 Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . .
page T-22
3. Ignition switch
8. Cruise control switch
Removal I Installation . . . . . . . . . . . . . . . . . . page T-20 Removal / Installation . . . . . . . . . . page T-20
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
page T-21 Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . .
page T-21
4. Cruise control main switch 9. Combination switch
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
page T-21 Removal / Installation . . . . . . . . . . pages T-23, 25
5. Hazard warning switch Disassem biy / Assembly . . . . . pages T-24, 26
Removal / Installation . . . . . . . . . . . . . . . . . . page T-20 Inspection ,...,.,.,.................. pages T-27, 28
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
page T-21 10. Panel lamp control switch
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . .
page T-22
T-l 9

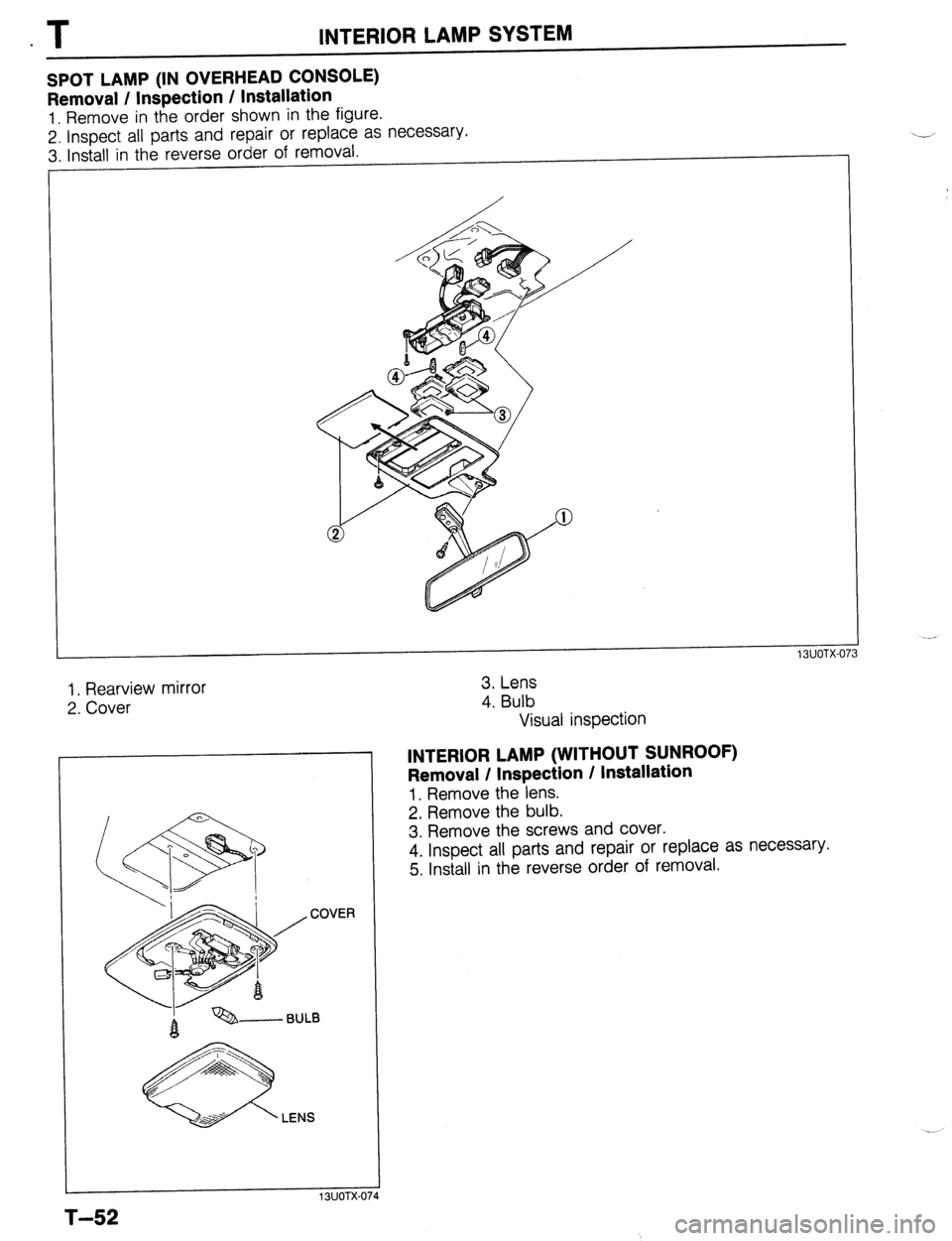

.T INTERIOR LAMP SYSTEM
SPOT LAMP (IN OVERHEAD CONSOLE)
Removal / Inspection / Installation
1. Remove in the order shown in the figure.
2. lnsoect all parts and repair or replace as necessary.
3. Install in the reverse order of removal.
1. Rearview mirror
2. Cover
LENS
3. Lens
4. Bulb
Visual inspection
INTERIOR LAMP (WITHOUT SUNROOF)
Removal / Inspection / Installation
1. Remove the lens.
2. Remove the bulb.
3. Remove the screws and cover.
4. Inspect all parts and repair or replace as necessary.
5. Install in the reverse order of removal.
T-52
