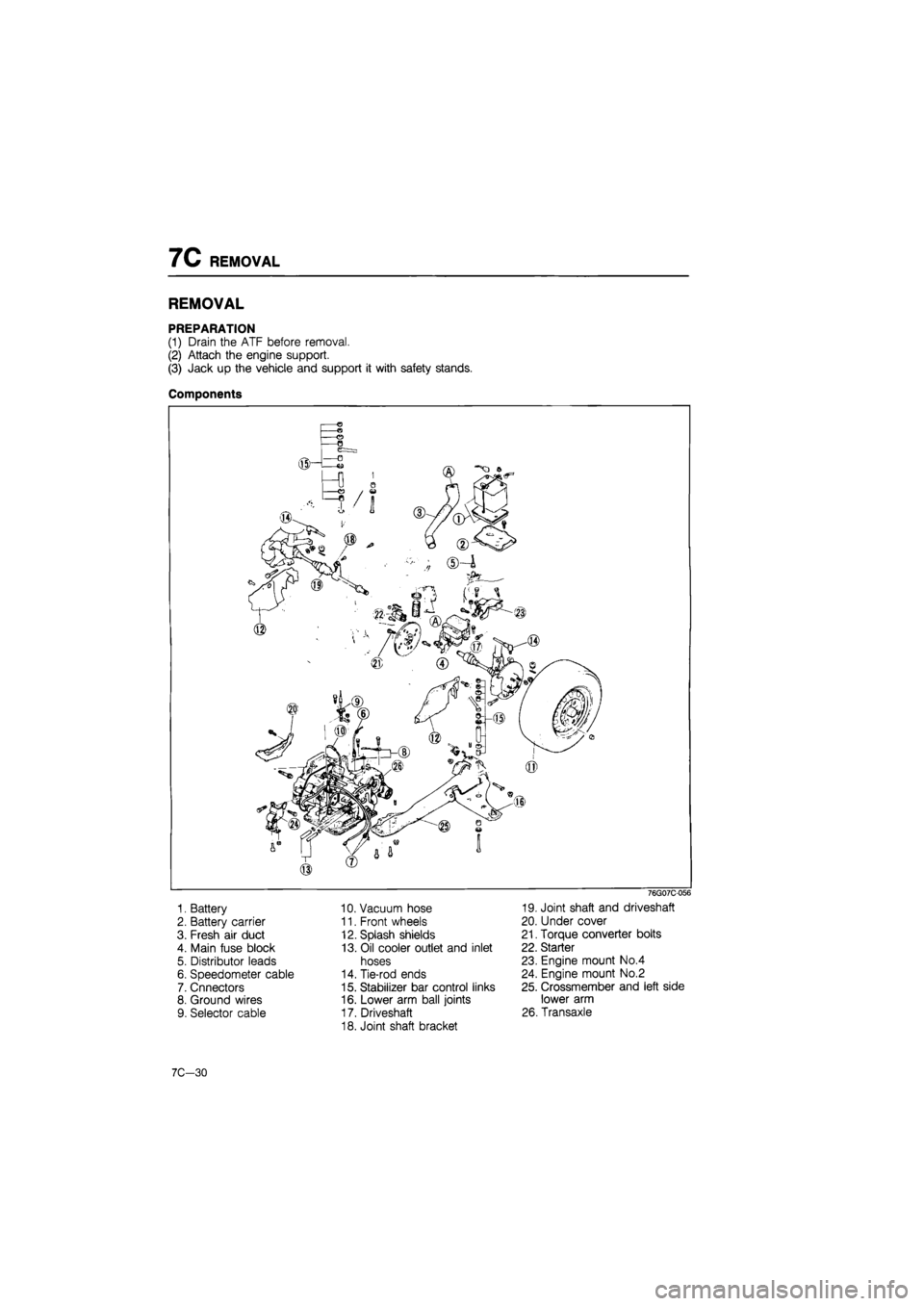

7C REMOVAL
REMOVAL
PREPARATION
(1) Drain the ATF before removal.
(2) Attach the engine support.
(3) Jack up the vehicle and support it with safety stands.
Components
1. Battery
2. Battery carrier
3. Fresh air duct
4. Main fuse block
5. Distributor leads
6. Speedometer cable
7. Cnnectors
8. Ground wires
9. Selector cable
10. Vacuum hose
11. Front wheels
12. Splash shields
13. Oil cooler outlet and inlet
hoses
14. Tie-rod ends
15. Stabilizer bar control links
16. Lower arm ball joints
17. Driveshaft
18. Joint shaft bracket
76G07C-056
19. Joint shaft and driveshaft
20. Under cover
21. Torque converter bolts
22. Starter
23. Engine mount No.4
24. Engine mount No.2
25. Crossmember and left side
lower arm
26. Transaxle
7C-30

STEERING GEAR AND LINKAGE 1 0
86U10X-052
REMOVAL
Note
The power steering fluid will leak out when the
return hose or the pressure hose is discon-
nected. Prepare a suitable container for it to
drain into.
1. Disconnect the negative battery cable.
2. Disconnect the pressure switch connector.
3. Raise the vehicle on a lift or safety stands, and re-
move the front wheels.
4. Disconnect the power steering hose and pipe.
5. Disconnect the tie-rod ends from the knuckles with
the SST.
6. Remove the steering shaft universal joint.
86U10X-053
7. Remove the mud flap.
8. Remove the mounting bolts and the steering gear.
86U10X-054
10—29

4-WHEEL STEERING GEAR AND LINKAGE 1 0
REMOVAL AND INSTALLATION
1. Jack up the vehicle and support it with safety stands.
2. Remove in the sequence shown in the figure, referring to the removal note for specially marked parts.
3. Install in the reverse order of removal, referring to installation note for specially marked parts.
4. Tighten all nuts and bolts to the specified torque, referring to page 10—39.
Note
The power steering fluid will leak out when the return hose or the pressure hose is discon-
nected. Prepare a suitable container for it to drain into.
Front Steering Gear
76G10X-034
9. Engine mount
10. Bolts and nut
11. Bolt
12. Bolt and mounting
13. Bolts and mounting
14. Stabilizer
15. Bolt
16. Front steering gear assembly
1. Pipes
2. Bolt
3. Exhaust pipe
4. Under cover
5. Shaft (Refer to next page)
6. Nuts retainer and bushing
7. Bolt, retainer and bushing
8. Nuts
10—37

OIL PUMP 1 0
OIL PUMP
REMOVAL AND INSTALLATION
1. Jack up the front of the vehicle, and support it with safety stands.
2. Remove in the order shown in the figure, referring to the removal note for specially marked parts.
3. Install in the reverse order of removal.
4. Tighten all nuts and bolts to the specified torque, referring to the figure.
Note
a) The power steering fluid will leak out when the return hose or the pressure hose is dis-
connected. Prepare a suitable container for it to drain into.
b) After installation, inspect the deflection of the oil pump belt and bleed the air from the
system, then check for fluid leakage. 2WS (Gasoline engine)
76G10X-041
4. Bracket
5. Oil pump
6. Oil pump pulley
1. Belt
2. Nut
3. Pipes
10—83

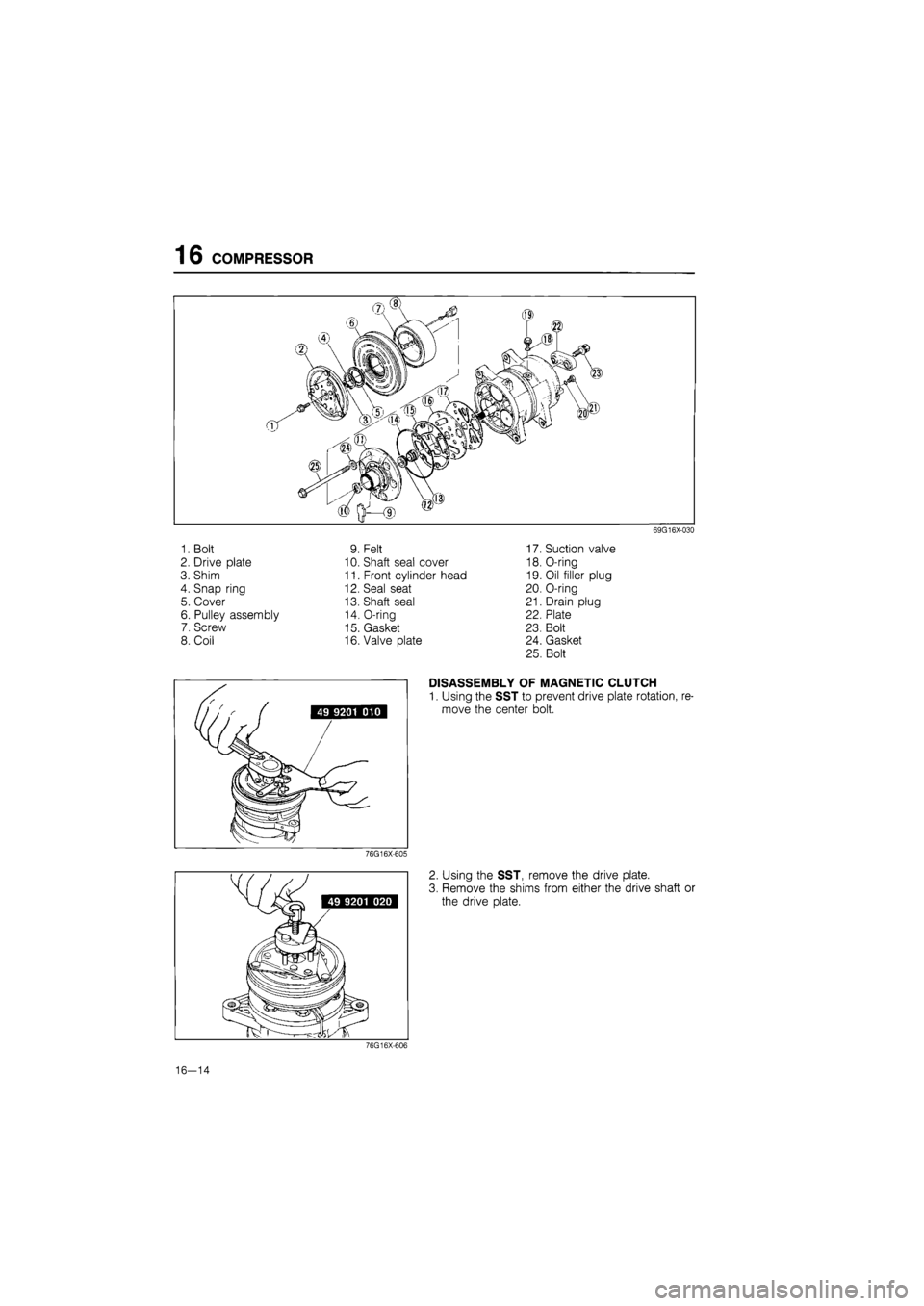

16 COMPRESSOR
1. Bolt
2. Drive plate
3. Shim
4. Snap ring
5. Cover
6. Pulley assembly
7. Screw
8. Coil
9. Felt
10. Shaft seal cover
11. Front cylinder head
12. Seal seat
13. Shaft seal
14. O-ring
15. Gasket
16. Valve plate
17. Suction valve
18. O-ring
19. Oil filler plug
20. O-ring
21. Drain plug
22. Plate
23. Bolt
24. Gasket
25. Bolt
69G16X-030

(f''
(
(f''
( 1 49 9201 010 H
/
flSt^
ISSP
, —*
76G16X-605
DISASSEMBLY OF MAGNETIC CLUTCH
1. Using the SST to prevent drive plate rotation, re-
move the center bolt.
2. Using the SST, remove the drive plate.
3. Remove the shims from either the drive shaft or
the drive plate.
76G16X-606
