Page 17 of 24

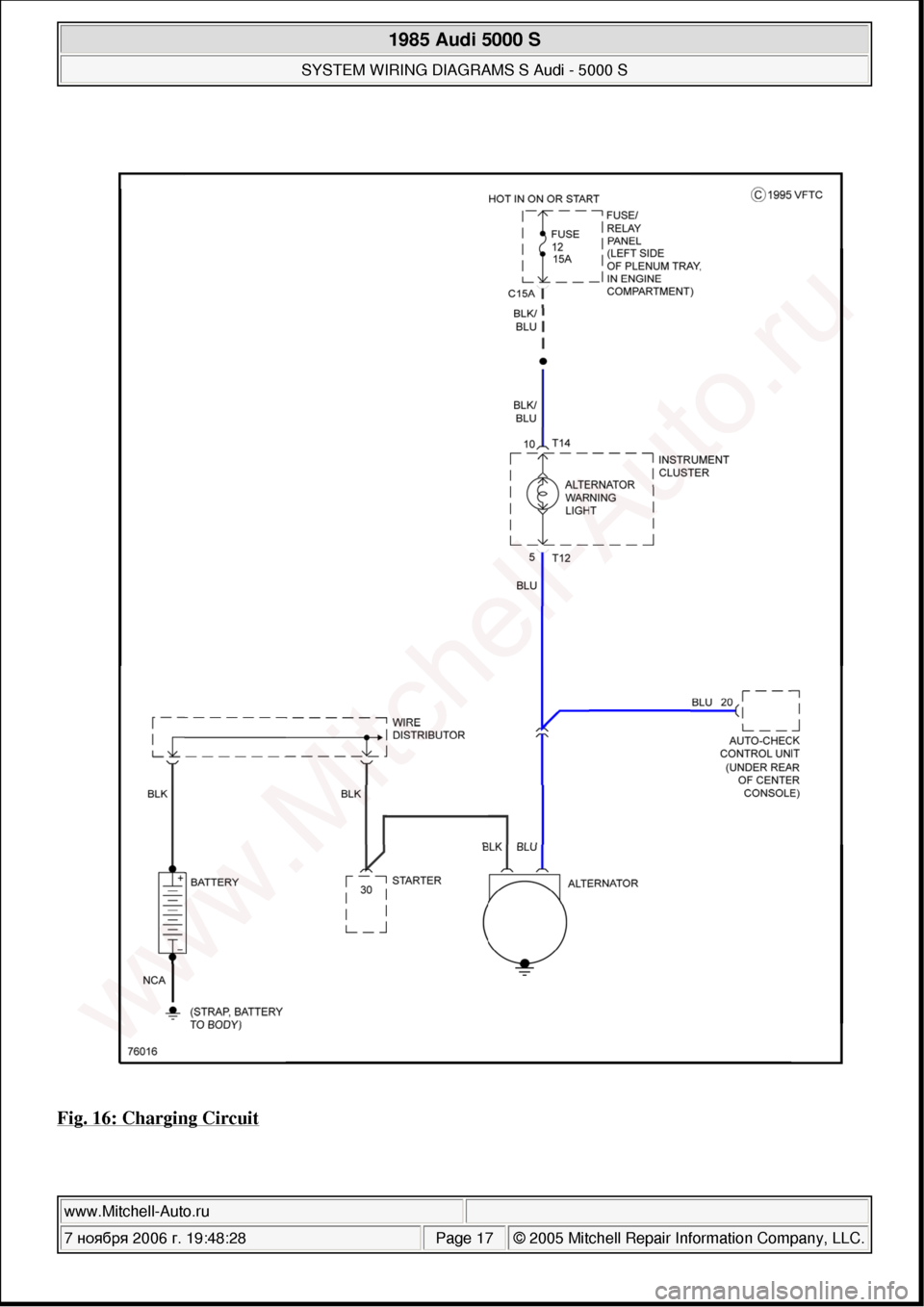

AUDI 5000S 1985 C2 System Wiring Diagram Fig. 16: Charging Circuit 1985 Audi 5000 S SYSTEM WIRING DIAGRAMS S Audi - 5000 S www.Mitchell-Auto.ru 7 ноября 2006 г. 19:48:28Page 17 © 2005 Mitchell Repair Information Company, LL

Page 18 of 24

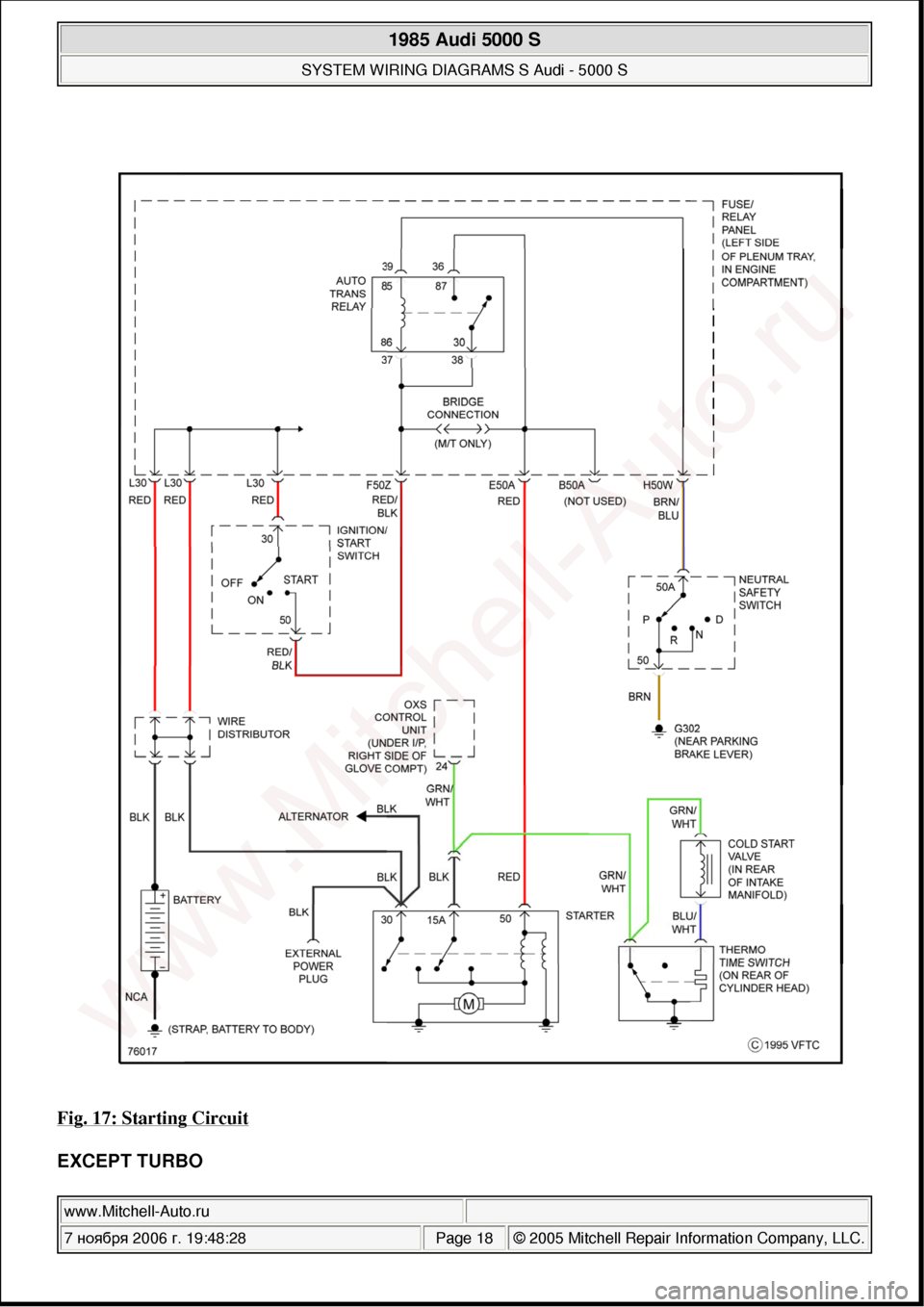

AUDI 5000S 1985 C2 System Wiring Diagram Fig. 17: Starting Circuit EXCEPT TURBO 1985 Audi 5000 S SYSTEM WIRING DIAGRAMS S Audi - 5000 S www.Mitchell-Auto.ru 7 ноября 2006 г. 19:48:28Page 18 © 2005 Mitchell Repair Informat

Page 19 of 24

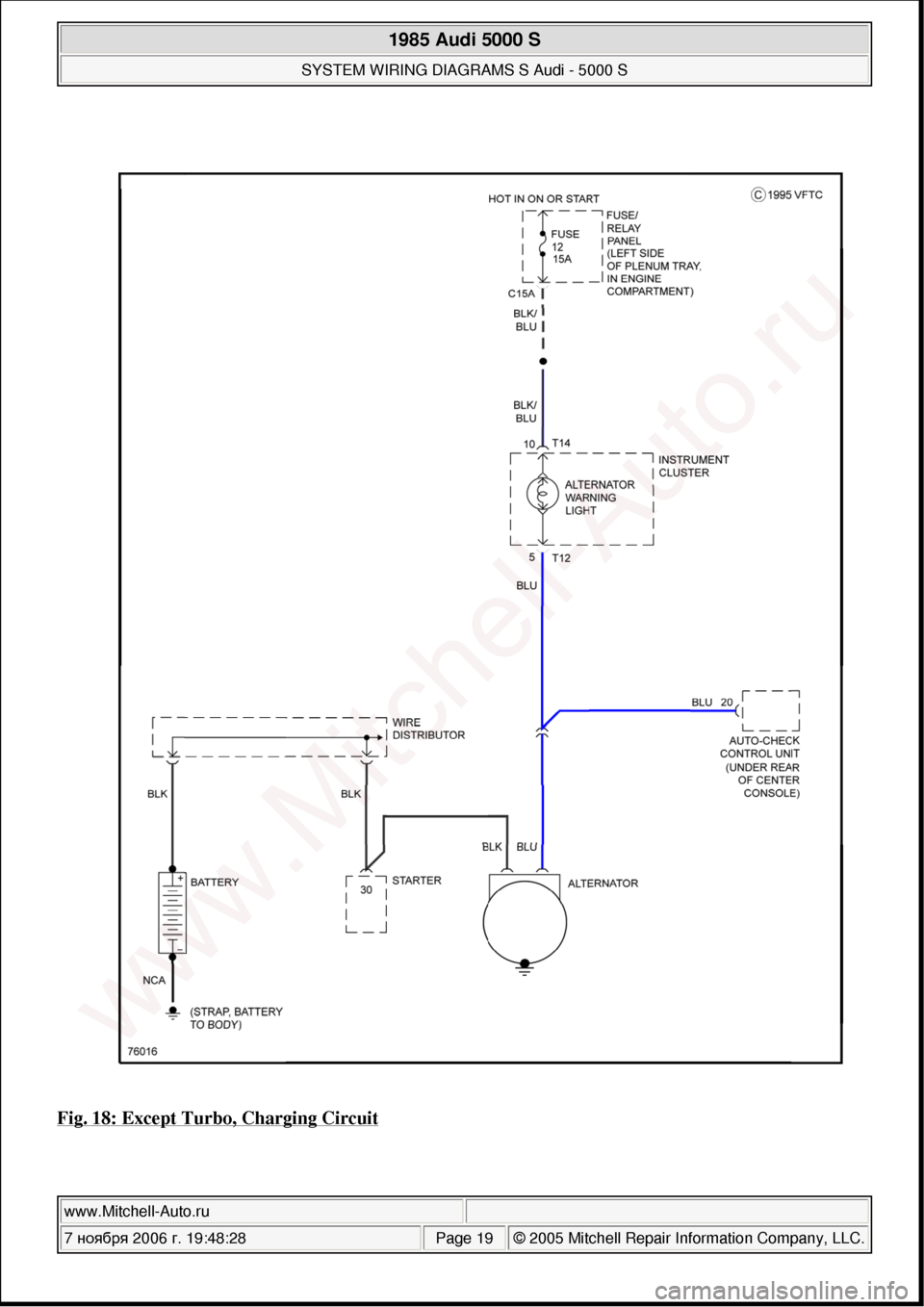

AUDI 5000S 1985 C2 System Wiring Diagram Fig. 18: Except Turbo, Charging Circuit 1985 Audi 5000 S SYSTEM WIRING DIAGRAMS S Audi - 5000 S www.Mitchell-Auto.ru 7 ноября 2006 г. 19:48:28Page 19 © 2005 Mitchell Repair Informati

Page 20 of 24

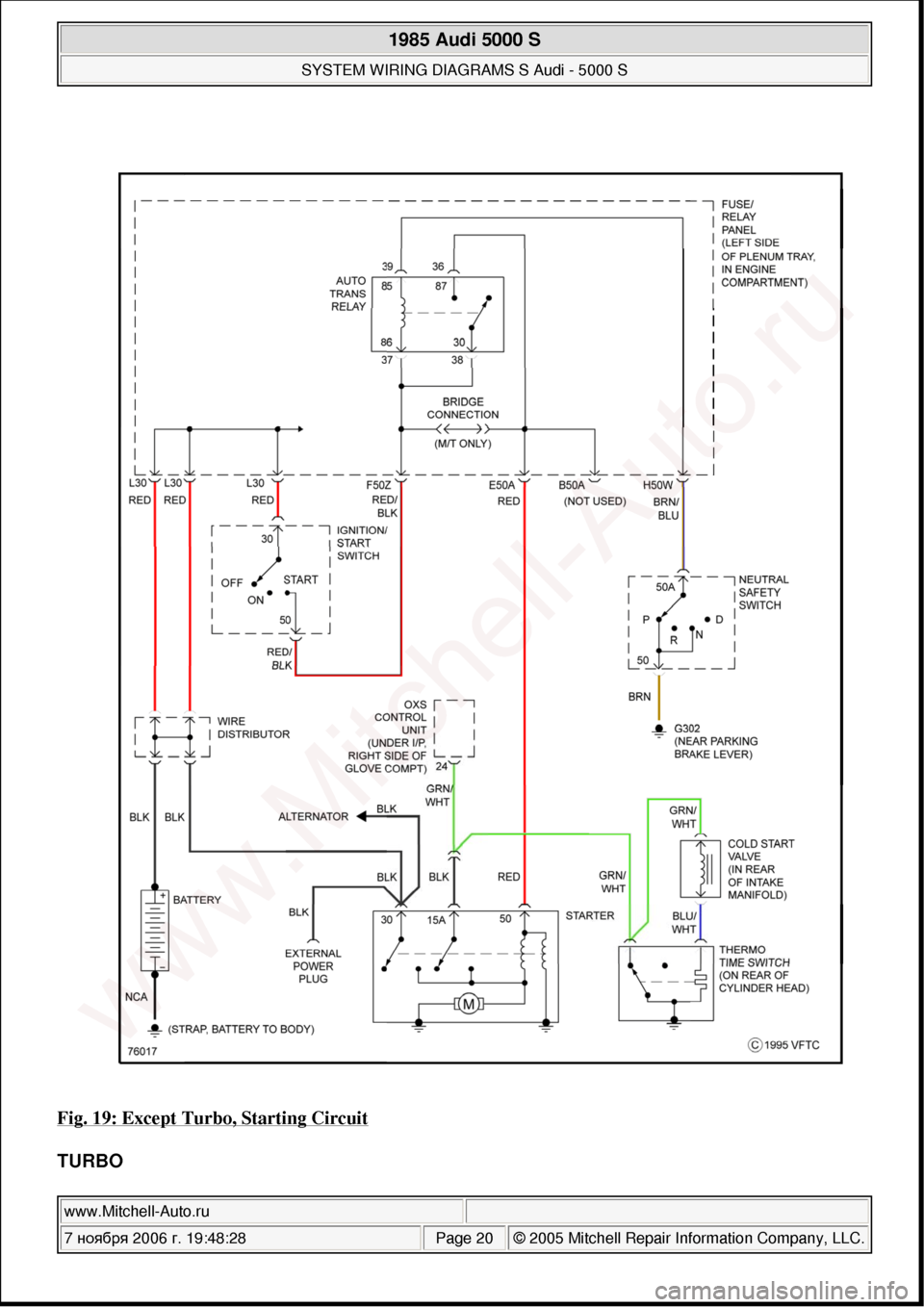

AUDI 5000S 1985 C2 System Wiring Diagram Fig. 19: Except Turbo, Starting Circuit TURBO 1985 Audi 5000 S SYSTEM WIRING DIAGRAMS S Audi - 5000 S www.Mitchell-Auto.ru 7 ноября 2006 г. 19:48:28Page 20 © 2005 Mitchell Repair I

Page 21 of 24

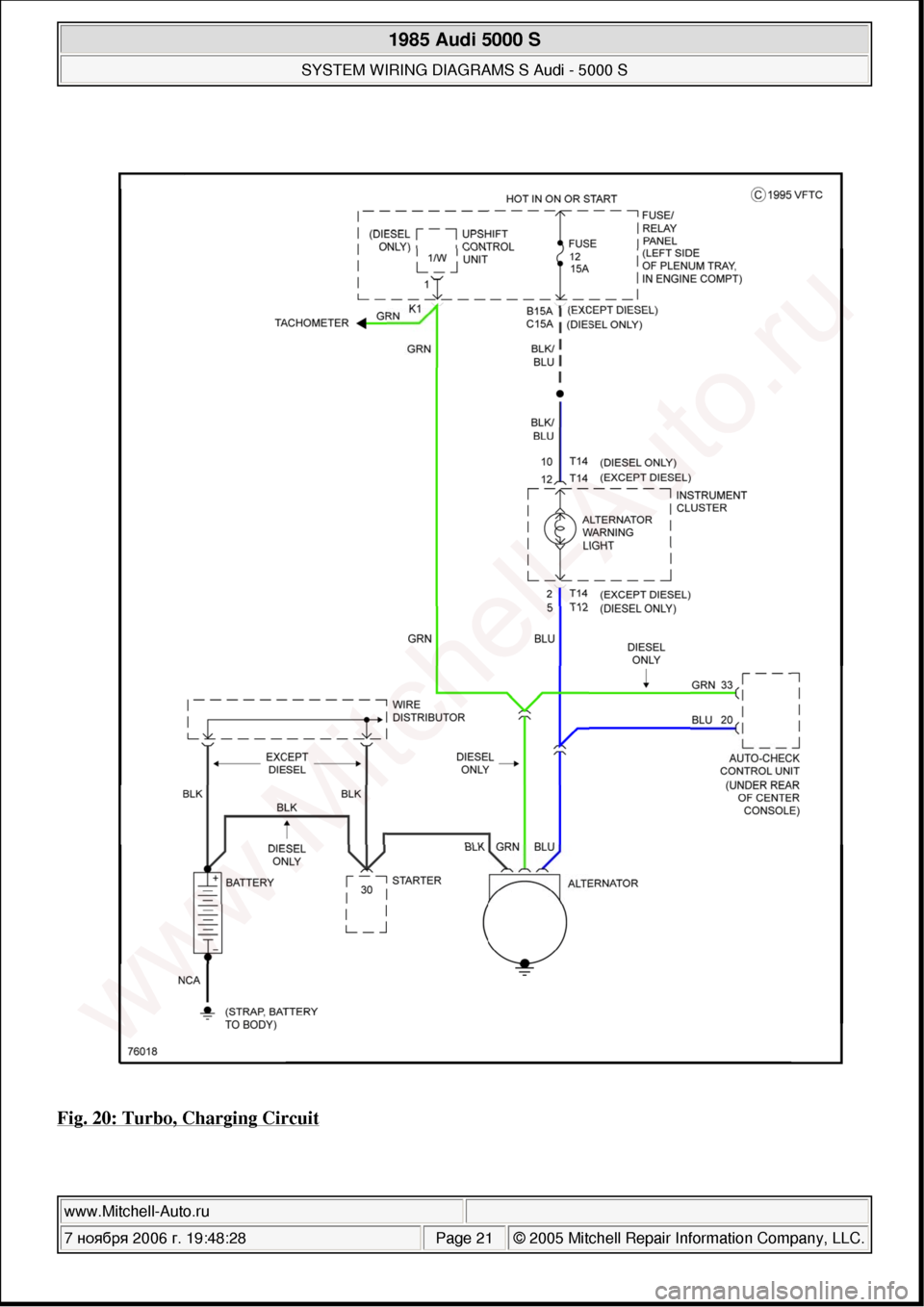

AUDI 5000S 1985 C2 System Wiring Diagram Fig. 20: Turbo, Charging Circuit 1985 Audi 5000 S SYSTEM WIRING DIAGRAMS S Audi - 5000 S www.Mitchell-Auto.ru 7 ноября 2006 г. 19:48:28Page 21 © 2005 Mitchell Repair Information Comp

Page 22 of 24

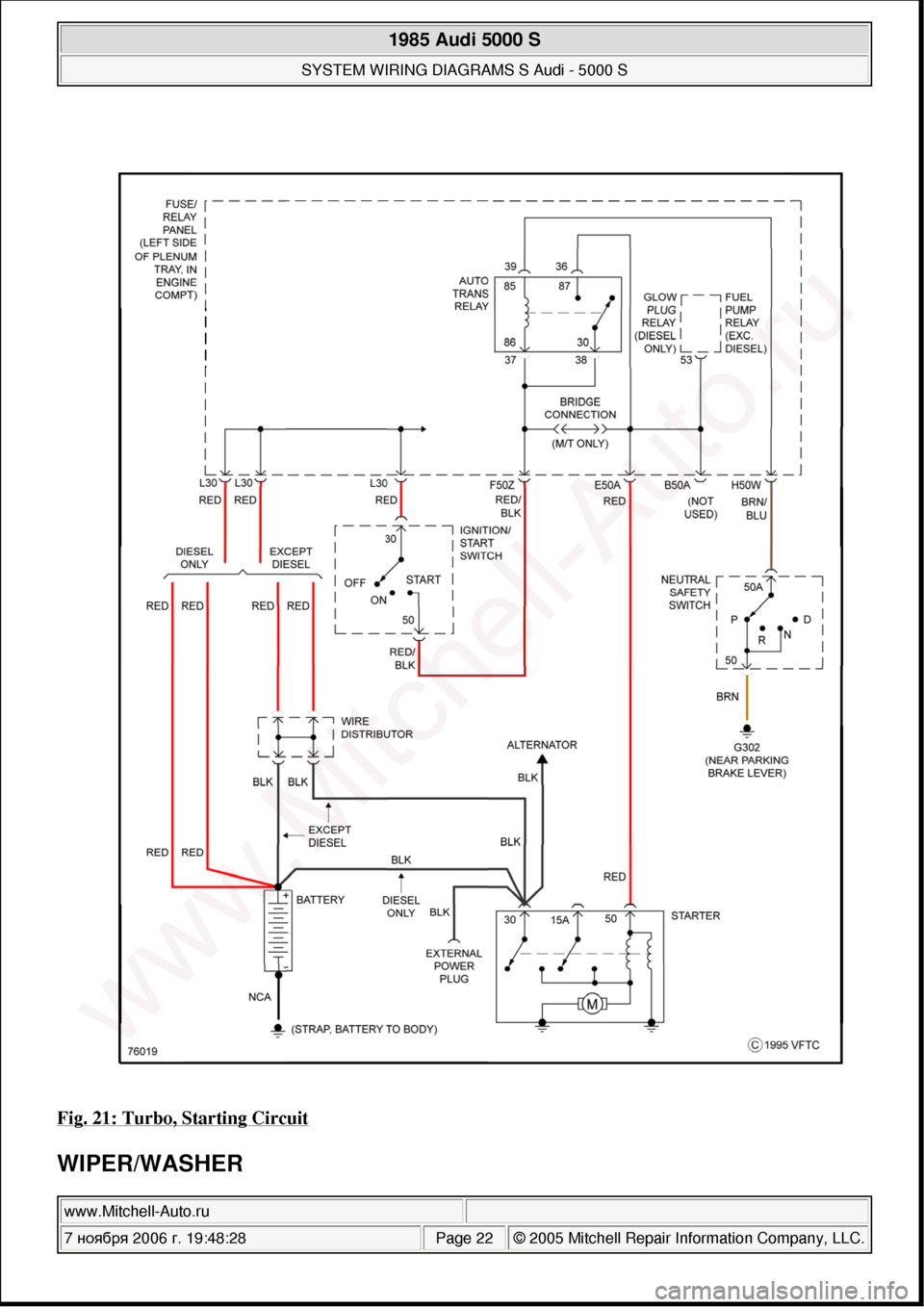

AUDI 5000S 1985 C2 System Wiring Diagram Fig. 21: Turbo, Starting Circuit WIPER/WASHER 1985 Audi 5000 S SYSTEM WIRING DIAGRAMS S Audi - 5000 S www.Mitchell-Auto.ru 7 ноября 2006 г. 19:48:28Page 22 © 2005 Mitchell Repair In

Page 23 of 24

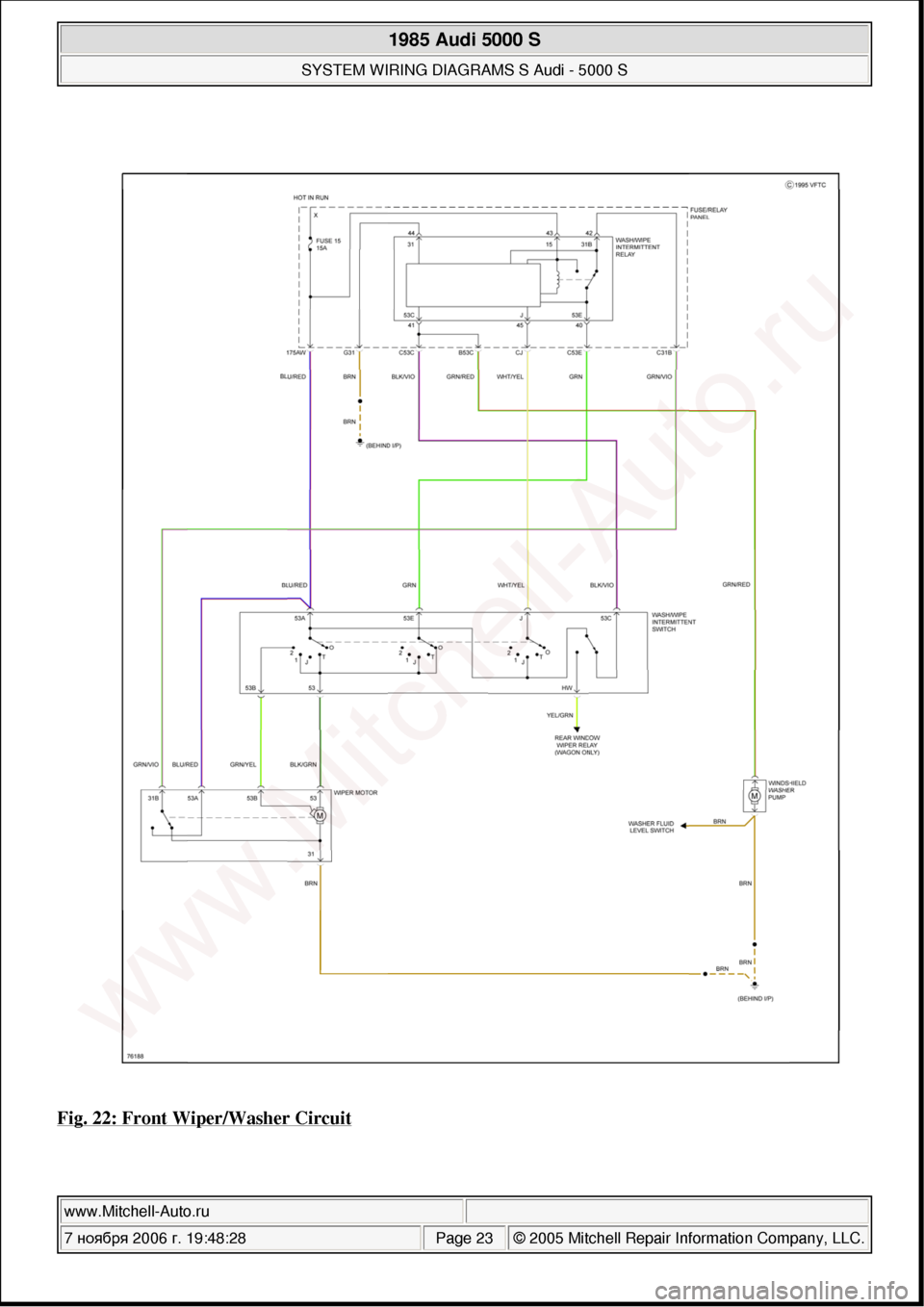

AUDI 5000S 1985 C2 System Wiring Diagram Fig. 22: Front Wiper/Washer Circuit 1985 Audi 5000 S SYSTEM WIRING DIAGRAMS S Audi - 5000 S www.Mitchell-Auto.ru 7 ноября 2006 г. 19:48:28Page 23 © 2005 Mitchell Repair Information C

Page 24 of 24

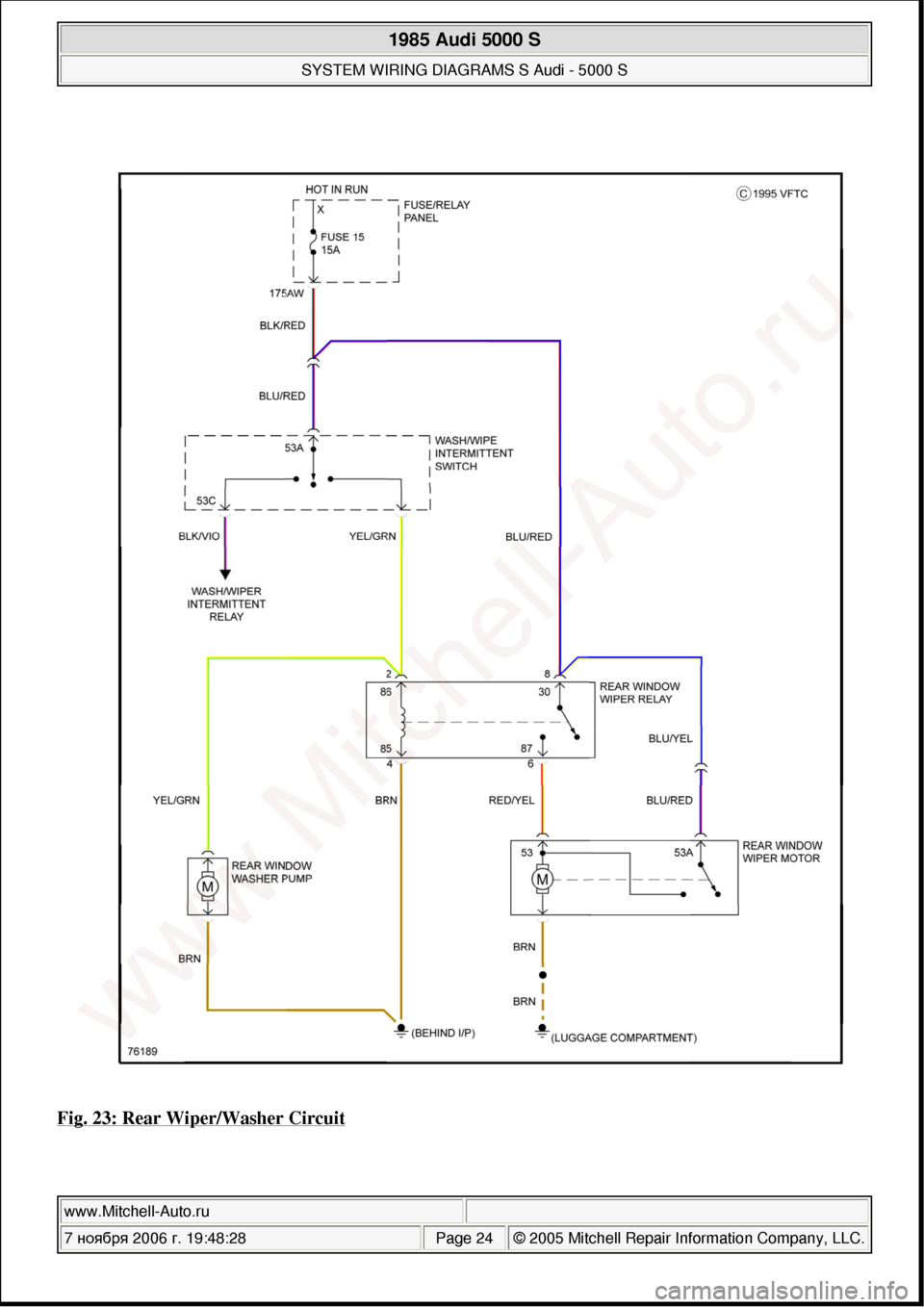

AUDI 5000S 1985 C2 System Wiring Diagram Fig. 23: Rear Wiper/Washer Circuit 1985 Audi 5000 S SYSTEM WIRING DIAGRAMS S Audi - 5000 S www.Mitchell-Auto.ru 7 ноября 2006 г. 19:48:28Page 24 © 2005 Mitchell Repair Information Co
