1979 Citroen CX engine

Downloaded from www.Manualslib.com manuals search engine OPERATION N” MA. 000 : G~~/c~rnl chnracteris/ics Op. MA. 000 3
CX 2000 and CX 2200 SALOON
( Vehicles fitted with M 20/616 1985 cc and M 227617 2175 cc engines )
I. GENERAL CHARACTERISTICS
cx 2000 cx 2200 I
- Official symbol .._... _. .._................. .._. MA series MB MA series MC
- Commercial symbol ., ,. . .._._.._............._........................ cx 2000 cx 2200
Factory symbol
( quarantee ) _._,_..,,.__._..__._..................,.................... . . . . MB MC
- Date of int:oduction . . ..__..._.._....._._..............,.......................,,........,.,...... September 1974 January 1975
- French fiscal ratinq ,.....,...._..._...._,......................,,..,..,........................... 11 cv 12 cv
- Number of seats ._...._...__._..................................,....,...,....................,........ 5 5
NOTE : u CX 2200 1) vi?hicles can be fitted with a gearbox with torque converter
as optional equipment.
Wheels and tyres :
_ Rims ___,._.__.__.__.,.._..._..,. ..,.,,.___..._._.....__.....................,...,...................... .,. _ ..__......_..._ 5 l/2 J X 14 FHA
CX 2000 (rrlith .\fmun/ s/eerir/g 1
- Tyres ( /II/~c~/(~s.s )
Tyre pressures ( in bars, and psi ) ._..__..._._. 2 bars ( 29 psi ) ;I
2.1 bars (30 1/2psi) 2.3 ba:s‘( 33 I/ 7psi)
Authoaized alternative ,
- Tyres ( ~r~l~c~less )
185 SR 14 ZX 185 SR 14 ZX 185 SR 14 ZX
- Tyres with inner tubes 14 F 9 - 13
a) _.., _._. .._,,....___,.__._......................................... 185 SR 14 ZX 18.5 SR 14 ZX 185 SR 14 ZX
b ) . 185 SR 14 ZX 175 SR 14 ZX 175 SR 14 ZX
-
Tyres ( special equipment ) _...._._,,.....__._......... 185 R 14 X(M+S) 185R14X(M+S) 185R 14 X(MtS)
From September 1976 onwards, Michelin type ZX tyres, have been replaced by t.ype
XZX.
The size and pressure remain the same.
In case of replacement of two TX tyres by two
XZX tyres, it is preferable to fit the latter at the rear.
All CX 2200 vehicles and
CX 2000 ( with power steering )
- Tyres (tubeless ) . . ..__._._._.___... ..___.__.._......._.._._ I85 HR 14 XVS 175 HR 14 XVS 175 HR 14 XVS
- Pressures __.,._.__.,__...._.,....~.......,...... ._ .___......... l.gbars(27 1/2psi) 2.1 bars(30 1/2psi) 2.3 bars (33 ‘/2psi)
Authorized alternative :
-1 Tyres (tubeless) _._....._..,___._._....,.,...........,..,.... 185 HR 14 XVS
- Tyres with, inner tubes 14 F 9-13
a) . . . . . . . . . . . . . . . . ..i,..,..___._. .,.._.._.~_..__~.~..~ j.,_~.~._.
b) _____.__,,..,..__.__...................................................
- Tyres ( special equipment ) __...._,.___...............; , .~~~,
NOTE : Tyre pressures are indicated on a label located on the panel at the front of the door on the driver’s side.
II. GENERAL DIMENSIONS
Dimensions :
- Front track ..,..,_.__.................. 1:474 m ( 4 ft. 10 ins ) Front overhang . . . . . . . . . . . . . . . .._...... 1~050 m(3ft. 5 l/2 ins)
- Rear track . . . . . . . . . . . .._._.............. 1.360 m (4ft. 5 l/2 ins)
Overall width . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.730 m ( 5ft. 8 ins )
- Wheelbase . . . . . . . . . . . . ..____............ 2 845 m (9ft. 4ins ) Height {normal
driving
-- bverall length 1 ( CX 2000 ) __ 4.630 m( 15ft.2 1/2ins) position’) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.360 m ( 4ft. 5 1/2ins)
( cx 2200 ) 4.660 m ( 15ft.3 l/2 ins) Ground clearance (normal
driving position ) . . . . . . . . . . . . . . . . . . . 0.155 m ( 6 1/8th.ins)

Downloaded from www.Manualslib.com manuals search engine 4 OPERATION N” MA. 000 : General characteristics
Weights in kg ( lb )
- Kerb weight ( with full tallk oj fuel ) . . . . . . . . . .
- Weight on
front axle ...............................................
- Weight on rear axle ................................................
- G.V.W. ( Gross Vehicle Weight, all optional
ecpiip777ei7t i77cluded )
..............................................
- Maximum authorised weight on front axle ..........
- Maximum authorised weight on rear axle ............
I G.T.W. ( Gross Train
Weight )
..............................
Towing : ( Weights in kg ( lb ) cx 2000
1265 ( 2789
) 1285
( 2833 )
845
( 1863 ) 860
( 1896)
420 ( 926
1 425
( 937 1
1740 ( 3836
) 1760 ( 3880 )
1020 ( 2249 ) 1020 ( 2249 )
750 ( 1653 ) 750 ( 1653)
2370 ( 5225
) I i77cI77rfi77!: n Ir.oiler 2405 ( 5302 )
( i/7t/ur/i77g
rc,i/hou/ brnkes cc,eighiug 630 kg o trc7ilcr rt~ithou t brakes
( 1389 Ihs ) rc~ei$iu~ 645 kg ( 1422 Ibs)
n) Vehicles equipped with a single electric cooli,f,c /c[i7 :
”
Maximum trailer weight ( gradient of 1 h 10 ) .__._..,...__,_____............
- Maximum
weight for bailer without brakes _.., .__._. ,. _._..,.,_..,__.._...... . . . . . . . . . . . .
b)
Vehicles equipped with tu& electric cooling /ans :
-
Gross Train. Weight ( zc:ith 1300 kg ( 2866 lb ) trailer with brakes ) .....-.’
- Maximum authorised trailer weight (within limits o/ C. 7‘. W’. ) ~..~~...~.....~~~
- Maximum starting gradient ( at G. ‘f. IV, )
_______.._....._...,.................................
cx 2200
cx 2000
900 ( 1984 )
630 ( 1389 )
3040 ( 6702.)
1500 ( 3307)
1 in8 l/3
- cx 2200
900 ( 1984)
645 (,I422 )
3060 ( 6746 )
1500 ( 3307 )
1 in8 l/3
IMPORTANT NOTE : Referehces to trailers without brakes DO NOT APPLY in U.K.
III.GENERAL INFORMATION
Capacities :
- Fuel tank
. . .._....__........................................................................................... 68 litres ( 15 galls )
- Cooling system
(including beater unit ) 16 dm2 ( 248 sq.in ) radiator 11 litres ( 19.3 pts )
20 dm2 ( 310 sq..in ) radiator 10.6 litres ( 18.6 pts )
- Heater unit alone :
i . . ..___.___.._.._.._..........................,..,.,..................................... Cl.6 litres ( 1.05 pt )
- Engine oil :
- After Oil Change _......_._.,_....,..,....,.......,....,................~.,.........................,
4.650 litres ( 8.2 pts )
w
Difference between Min and Max on dipstick 1.1 litre ( 1.9 pts )
- Hydraulic system ( Approx ) 4 litres ( 7 pts )
- Gearbox
a) ‘11 mud ~earlmx :
- Overall capacity ( TOTAL EP 80 ) _.__.__._..._..._._................................... 1 .6 litres ( 2.8 pts )
w
Difference between Min and Max on dipstick . . . . . . . . . . . . . . . . . .._................... 0.150 litres ( a.26 pts )
b) Ccarbos with
/orque: con7jerter :
- Overall capacity ( TOTAL Fluide T ) . ..__.,_.____________....,.,....,....,,.......... 5.5 litres ( 9.7 pts )
- After Oil Change . . 2 to 3 litres ( 3 l/2 to 5.2 pts )
( according to draining time )
v
Difference between Min and Max on dipstick (with oil
cold ) .0..150 litres ( 0.26 pts )
- Usable volume of boot
325 dm3 ( 11.48 cu. ft ) . . . . . . . . . . . . . . . . . .._................................................................

Downloaded from www.Manualslib.com manuals search engine OPERATION No MA. 000 : General characteristics Op. MA. 000
o CX 2000 u ESTATE
( Vehicle equipped with M 20/616 1985 cc.engine )
I. GE&AL Cl-jARACTERlSTlCS I.
:p> ;firJ:s@ -
. . - Commercial symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..~.................................. I
CX 2000 Estate
- Official symbol . .._._.._._............................................................... . . . . . . . . . . . . . . . . . . . . . ..__......... MA series MD
- Factory symboI ( warranty symbol ) . . . . . . . . . . . . . _..__......................_...._..,.,......, MD
- Introduction date _... . . . . . . .,.,.,.,,..............,.,.,.... January 1976
- French fiscal rating
. . . . . . . . . . . ..~........................................................................... llhp
- Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Wheels and tyres
- Wheel rims . . . . . . .._............................................................................................................... 5 l/2 J x 14 FHA
Tyres
MICHELIN Type and pressure in bars (psi)
Front
I Rear Spare
Manual 185 SR 14 ZX
Standard steering 2 ( 29 1 2.2 (32 1
2.4 35 I .I ( )
fitting
Authorised
f-itting Power
steering
Manual
steering
Manual or
Power
steering 185 HR 14 XVS-TU
119 ( 27 l/2 ) ,I 2.1 ( 30 l/2 ). 1 2.3 (33 ‘l/2 )
185 HR 14XVS-TU
1 I
1.9 (27 l/2) 2.1 ( 30 l/2 ) 2.3 ( 33 .1/2 )
185 R 14 X (M+S)
1.9 ( 27 l/2 ) 2.1 ( 30 l/2 1
2.3 ( 33 1;2 )
NOTE. : - Vehicles are fitted with (( TUBELESS )) tyres as standard equipment. .
- They can be fitted with tyres with inner tubes of the same type, the pressures remaining the same.
- The tyre pressures are indicated on a label located on the panel at the front of the door (on the
driver’s side ).
From September 1976 onwards, MICHELIN ZX tyres are replaced by
XZX tyres.
The sizes and pressures remain the same.
In case of replacement of 2 ZX tyres by 2
XZX tyres, it is preferable to fit the latter at the rear.
.p
il. GENERAL DIMENSIONS a.
I ~.
- Front track
..........................................................................................................
- Rear track ........................ .:.
................................................................................
-Wheelbase .......................................................... ..i ........ ....................................
- Overall length .....................................................................................................
- Front overhang
............................................. ..i ...................................................
- Overail width ......................................................................................................
- Height of vehicle ( in normal driving position ) ............... . .................................
- Ground clearance ( in normal driving position ) ................................................. 1.474 m ( 4 ft. 10 ins )
1.390 m ( 4 ft. 6 3/4 ins )
3.095 m ( 10 ft. 1 3/4 ins )
4.920 m ( 16 ft. 1 3/4 ins )
1.050 m.( 3 ft. 5 l/2 ins )
1.734 m ( 5 ft. 8 l/4 ins )
1.465 m ( 4 ft. 9 3/4 ins )
0.155 m ( 0 ft. 6.1 ins )

Downloaded from www.Manualslib.com manuals search engine 6 OPERATION No MA. 000 : Gezcral characteristics :
Weights : ( in kg ( Ib ) )
- Kerb weight ( with full tank of fuel ) ................................................................................
1385 ( 3053 )
- Weight on front axle ............................................................................................................. 880 ( 1940 1
- Weight on rear axle ..............................................................................
, ...................... ., ...... 505 ( 1113 )
- Gross Vehicle Weight ( including all optional equipment ) ............................................
2070 ( 4564 )
- Maximum authorised weight on front axle .......................................................................
1050 ( 2315 )
- Maximum authorised weight on rear axle ........................................................................
1030 ( 2271 )
- Gross Train Weight with 690 kg ( 1521 Ib ) trailer without brales .................................. 2700 ( 5952 )
Towing :
- Maximum authorised trailer weight ( gradient of 1 in 10 ) :
. a)u Standard D riehicle ......................................................................................................... 900 ( 1984 )
b) Vehicle equipped with twin electric cooling fans ........................................................ 1300 ( 2866 )
- Gross Train Weight with a 1300 kg ( 2866 lb ) trailer with brakes ................................
3370 ( 7429 )
- Maximum authorised trailer weiqht, within limits of G.T.W. .............................................
1500 ( 3307 )
- Maximum starting gradient ( at G. T. It’. ).
.............................................................. ..~ ................ 1 in 9 ( 11 % )
IMPORTANT NOTE : References to trailers without brakes bc) NOT APPLY in U.K.
III. GENERAL INFORMATION
Capacities :
- Fuel tank .._......................................,............................................................... : . . . . . 68 litres ( 15 galls )
- Cooling system ( Heater unit included) ( 20 dm2 - 310 sq.in ) . . . . . .
10.6 litres ( 18.6 pts )
- Heater unit alone . . . . . . . . . . . .
0.6 litres ( 1.05 pts )
- Engine oil :
- after draining * . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.650 litres ( 8..2 pts )
- difference between Min and Max on dipstick . . . . . . . . . . . . . . . . .
1.1 litres ( 1.9 pts )
- Hydraulic system ( approx ) . . . . . . . . . . . . . . . . . . . . . .
4 litres ( 7 pts )
- Gearbox :
- after draining . .._._._......................................................... :.................................... 1.6 litres ( 2.8 pts )
- difference between Min and
Max on dipstick . . . . . . . . . . . . . :.
0.150 litres ( 6.26 pts )
- Boot volume :
- with rear seat in position ................................................................................. 1100 dm3 ( 38.85 cu.ft )
- with rear seat folded .......................................................................................... 2030 dm3 ( 71.70 cu.ft )

Downloaded from www.Manualslib.com manuals search engine OPERATION No MA. 000 : General characteristics Op. MA. 000 7
CX ,, PRESTIGE ,,‘SALOON
: ( Vehicle equipped with the M 23/623 2350 cc engine )
1. GENERAL CHARACTERISTICS :
- Official symbol MA series MK ................................................................................................................................
- Commercial symbol ........................................................................................................................ CX PRESTIGE
- Factory symbol ( Wurrmzty symbol ) .................................................
:. .............................................
MK
- Introduction date ........................................................................................................................
February 1976
_ French fiscal rating
............................. , ........................................................................................... 13
hp
- Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
NOTE : The following items are standard equipment on CX (( Prestige )) vehicles; VariPower steering ( with
powered return ). Air-conditioning and a (( Froid- 20 1) heater unit. Since December 1976, these vehicles can
be fitted with’a gearbox with torque converter as optional equipment.
Wheels and tyres :
- Wheelrims .,...,._.__._......_...,.................,,....,................................................. . . . . . . . . . . . . . . . 5 l/2 F x 14 FHA
- Tyres ( tubeless ) . . . . . .
(psi) . . . . . . . . . . . . .._.._.......... )
2.2
Authorised alternatives :
-‘Pressure in bars
- Tyres ( .Ppecial equipment) . . . . . . .
185R14 X (M + S ) 185R14X(M+S) 185R14X(M+S)
- Pressure in bars ( psi ) . . . . . . . . . . . . . . . . . . . . 2.2’ ( 32 ) 2.2 ( 32 ) 2.4
( 35 )
I
II. GENERAL DIMENSIONS
Dimensions :
- Front track ......................................................................................................
1.474m (4ft. loins)
- Rear track
... . ................................................................................................... 1.360 m (4 ft. 5 /l/2 ins )
,- Wheelbase ................................... . ...................................................................
3.095m (10 ft. 1 3/4.ins)
- Overall length ............................................................................................. 4.916 m ( 16 ft. 1 /l/2 ins )
- Front overhang ...............................................................................................
1.057 m (3 ft. 5 A/2 ins )
- Overall width ............................................................................................... 1.734m (5 ft. 8 /l/,4 ins)
- Height of vehicle (in normal driving position ) .. :. ..................................... 1.357
m ( 4 ft. 5 /l/2 ins )
- Ground clearance (An normal driving position ) ........................................ 0.155m (9 ft. 6.1 ins)

Downloaded from www.Manualslib.com manuals search engine 8 OPERATION No MA. 000 : G~v2~~rnl characteristics

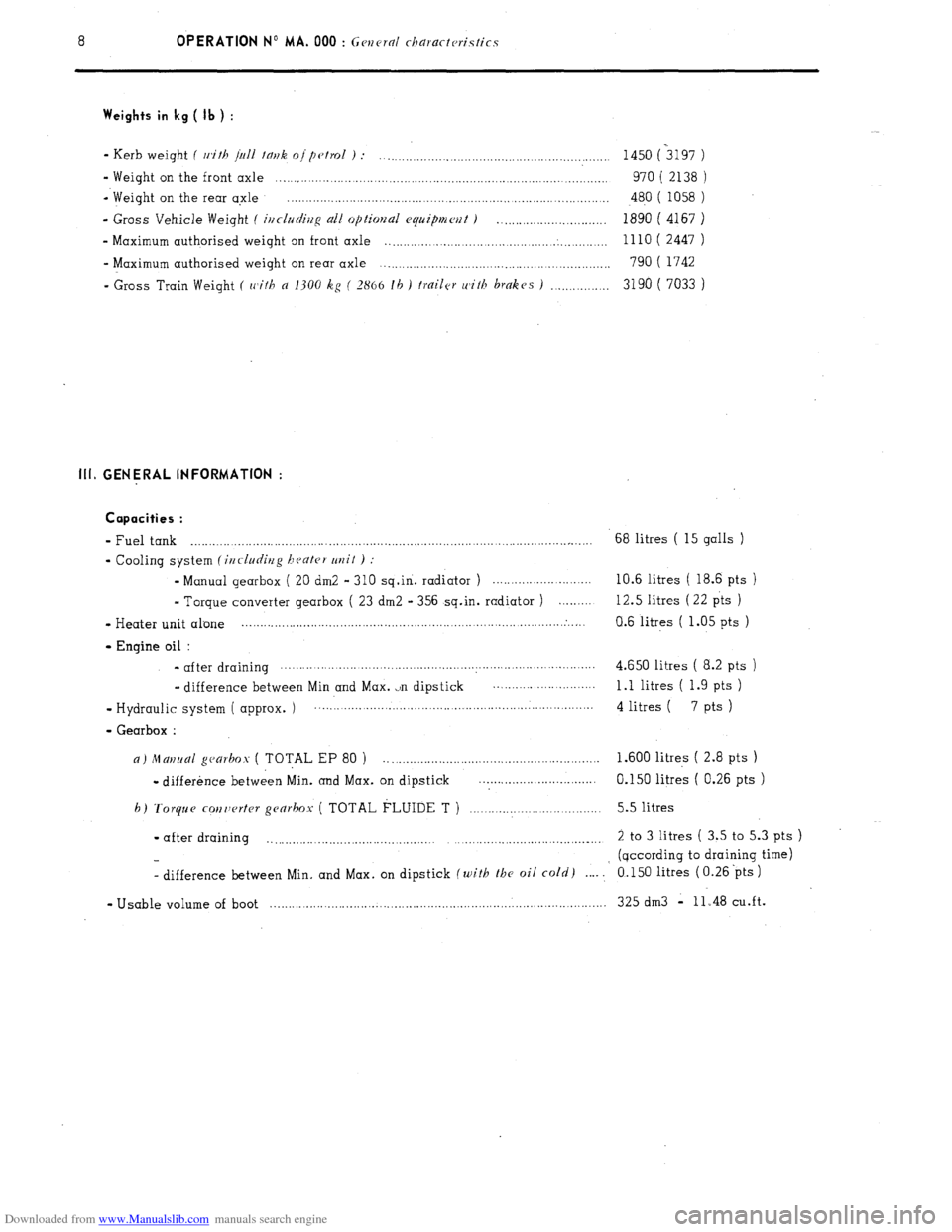

Weights in kg ( Jb ) :
- Kerb weight ( with /hll fmk oipc~trol ) :
.............................................................. 1450 (3197 )
- Weight on the front axle .... .._
.................................................................................... 970 ( 2138 )
- Weight on the rear axle ..................................
.....................................................
480 ( 1058 )
- Gross Vehicle Weight ( inclr~cli22~ all optimaal eq~ipmm f )
.............................. 1890 ( 4167 )
- Maximum authorised weight on front axle
.............................................. . ............. lllO( 2447 )
- Maximum authorised weight on rear axle ............................................................... 790 ( 1742
- Gross Train Weight
( with ~2 1300 kg ( 2866 lb 1 frailer u'ith hmkes I ................ 3190 ( 7033 ) III. GENERAL INFORMATION :
Capacities :
- Fuel tank . . . .._._.............., .._.._._. . .._...__................................ ._................,...... 68 litres ( 15 galls )
- Cooling system (i22cludi22g hcc?ter ul2it 1 :
- Manual gearbox ( 20 dm2 - 310 sq.in. radiator ) . . .._.....................
10.6 litres ( 18.6 pts )
m
Torque converter gearbox ( 23 dm2 - 356 sq.in. radiator ) . 12.5 litres (22 pts )
- Heater unit alone _, :. I.
0.6 litres ( 1.05 pts )
- Engine oil :
- after draining . . .._._._......._._........................................................-..........
4.650 litres ( 8.2 pts )
.. difference between Min and Max. ,.n dipstick 1 .l litres ( 1.9 pts )
- Hydraulic system ( approx. ) .._._..._.__.._._._...,,..,........,.,......................................
4 litres (
7 pts 1
- Gearbox :
a) ~Z~UI/I~U/ gcarho.~ ( TOTAL EP 80 ) _,.,__.___.,.,_._....,,,...................,...........,. 1.600 litres ( 2.8 pts )
- difference between Min. and Max. on dipstick . . . . . . . . . ..__...................
0.150 litres ( 0.26 pts )
h)
Torque corztwrter gcarhox ( TOTAL FLUIDE T ) ._.___._...,,___.._....,...,.....,., 5.5 litres
- after draining
_ 2 to 3 litres ( 3.5 to 5.3 pts )
(qccording to draining time)
- difference between Min. and Max. on dipstick
(with rhc oil cold) . . . . .’ 0.150 litres ( 0.26 ‘pts )
w Usable volume of boot ..___._._.......___................,.............,.............,.......,.,.....,............ 325 dm3 - 11.48 cu.ft.

Downloaded from www.Manualslib.com manuals search engine OPERATION No MA. 000 : Gwc~rnl characteristics Op. MA. 000 9
CX 2400 SALOON
( Vehicles equipped with thk M 23/623 - 2350 cc engine )
I. GENERAL CHARACT.ERlSTlCS :
- Official symbol .._.. .._..._......................,.............._....._._....__._..__._........... MA series MJ
- Commercial symbol .._..._._... _.........,._........._...... .._ .._..._..._..._..._._... .._..._..._._..._._ CX 2400
- Factory symbol ( Warrar~ty symbol ) MJ
. . ..o........................,,.....................................
- Introduction date .._.... _.. .._.. _._... ,.. .._...,_, .,. ,. _... .,._.... September 1976
- French fiscal rating .._............._..........._..__._..,...._....._.._........_.,.,.,..,.,......, .,_.. ,........ 13 hp
- Number of seats ..I.... ,.................................................,..... 5
NOTE CX 2400 saloon vehicles can be fitted with a torque converter gearbox and an air-conditioning unit as
optional.equipment. From December 1976 onwards, these two items can be fitted together. Wheels and tyres :
- Wheelrims .._. ._......_.,._..._.,....._..._..............,........................ ~ . . . . . . . 5 l/2 Jx14FHA
TYPE AND PRESSURE IN BARS ( PSI )
MICHELIN
I
TYRES
r~-~ FRONT
185 HR 14 XVS-TU
STANDARD
FITTING
1.9 (27.5) REAR SPARE
175 HR 14 XVS-TU
2.1 (30.5) 2.3 (33.5)
185 HR 14 XVS - TU
AUTHORISED
1.9 (27.5) 1.9 (27.5) 2.1 (30.5)

ALTERNATIVE 185-14 X (M + S )
1.9 (27.5 ) 1.9 (27.5) 2.1 ( 30.5 )
NOTE Vehicles are fitted with TUBELESS tyres as standard equipment. They can be fitted with tyres with
inner tubes of the same type, the pressures remaining the same.
The tyre pressures are indicated on a label located on the panel at the front of the door (011 the
drilw’s side). II. GENERAL QIMENSIONS
Dimensions :
- Front track
........................................................ . .................................................. 1.474 m ( 4ft. 10 ins)
- Rear track ...................................................................... :. ....................................... 1.360 m ( 4 ft. 5 1/2ins)
- Wheelbase ............................................................................................................... 2.845 m ( 9 ft. 4 ins )
- Overall length ............................................................................................................
4.660 m ( 15ft. 3 1/2ins)
- Front overhang ...........................................................................................................
1.050 m ( 3 ft. 5 l/2 ins)
- Overall width .......................................................................................................... ; 1 .730 m ( 5 ft. 8 ins )
- Height of vehicle
(in the normal driving position ) ............................................... 1.360 m ( 4 ft. 5 1/2ins)
_ Ground clearance (
in the uormal drilhzg position ) .................................................. ; 0.155 m ( 0 ft.6.1 ins )

Downloaded from www.Manualslib.com manuals search engine 10 OPERATION No MA. 000 : (;vt/c~ra/ chorac/vris/ics
Weights in kg ( lb )
- Kerb weight I wit/~ iLlI /m/k. oi !IIVI )
.......................................................................
- Weight on the front axle .......................
........................ ........... .......................
- Weight on the rear axle ......................... ....................................................................
- Gross Vehicle Weight
....... ...........................................................................
........... 1300 ( 2866 )
870 ( 1918 )
430 ( 948 )
1790 ( 3946 )
- Maximum authorised weight on the fr-ont axle . . . . . . . . . . . . . . . . . . . . . . . . . . .._..._..._._......._._._....._..._.. 1050 ( 2315 )
- Maximum authorised weight on the rear axle
. . . . . . . . . ..~.. . . . . . . . . . . . . . . . 750 ( 1653 )
- Gross Train Weight (with a 1300 kg ( 2866 lb ) trailer ) . . . . . . . . .
3090 ( 6812 )
- Gross Train Weight ( with a 650 kg ( 1433 lb ) trailer without brakes ) . . . . 2440 ( 5379 )
Towing :
- Maximum weight of trailer without brakes
..... __ ......................................................... 650 ( 1433 )
- Maximum weight of trailer ( within G.T.W. limit of 3090 kg ( 6812 lb ) .....................
1500 ( 3307 )
- Maximum starting gradient ( at G.T.W. ) ..................................................... ..............
12% (1 in8 l/2)
NOTE For towing a trailer heavier than 900 kg ( 1984 lb ). ‘t . 1 1s necessary to fit a second lo-blade electric
cooling fan.
IMPORTANT NOTE : References to trailers without brakes DO NOT APPLY in U.K.
III. GENERAL INFORMATION
Capacities :
- Fuel tank .__._.___..._....__..__...,.._.,.....__________.___.___.___.__.__.__._...................,..... : ._.___.____._. 68 litres ( 15 galls )
- Cooling system f
itfcltrrlivg hcatcr rirlil ) :
- Manual or torque converter gearbox .._..._..__._._,.._..._._.. _..._._._......._......._._._...... 10.6 litres ( 18.6 pts )
- Optional torque converter t air-conditioning unit .._...............................
12.5 litres ( 22 pts )
- Heater unit alone _. _..._._._..,_ _..._.........,....._._._....__.___......... ._. _._._._._....._., .,,._......._. 0.6 litres ( 1.05 pts )
- Engine oil :
- after draining
_..,.._._._....___..._.__....................._._._..._..._....._..._._._................... 4.650 litres (8.2 pts )
- difference between Min. and Max. on dipstick 1.1 litres ( 1.9 pts )
- Hydraulic system ( approx ) _....,_._.__.._._.........,..._..._._.___._......._._._._._._._..................... 4 litres ( 7 pts )
- Gearbox :
_ Overall cspacity ( TOTAL EP 80 ) . . . . . .._.... .._._._..._._._....._._._..._..._... 1.600 litres ( 2.8 pts )
- Difference between Min. and Max. on dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
0.150 litres ( 0.26 pts )
h) Torque con7~c~rter grarbos :
- Overall capacity ( TOTAL FLUIDE T ) _._._._._.,_...._........_.._.................... 5.5 litres ( 9.7 pts )
- After draining _._,_,_,_.,._.._......_._._._._._._..._..._._._._..._._..__._..._._..................... 2 to 3 litres ( 3.5 to 5.3 pts )
according to draining time
- Difference between Min. and Max. on dipstick (r!,ith
the oil cold) _._,...... 0.150 litres ( 0.26 pts )
-Usable volume of boot .~...............,.........,,............................................. . . 325 dm3 ( 11.48 cu.ft )
