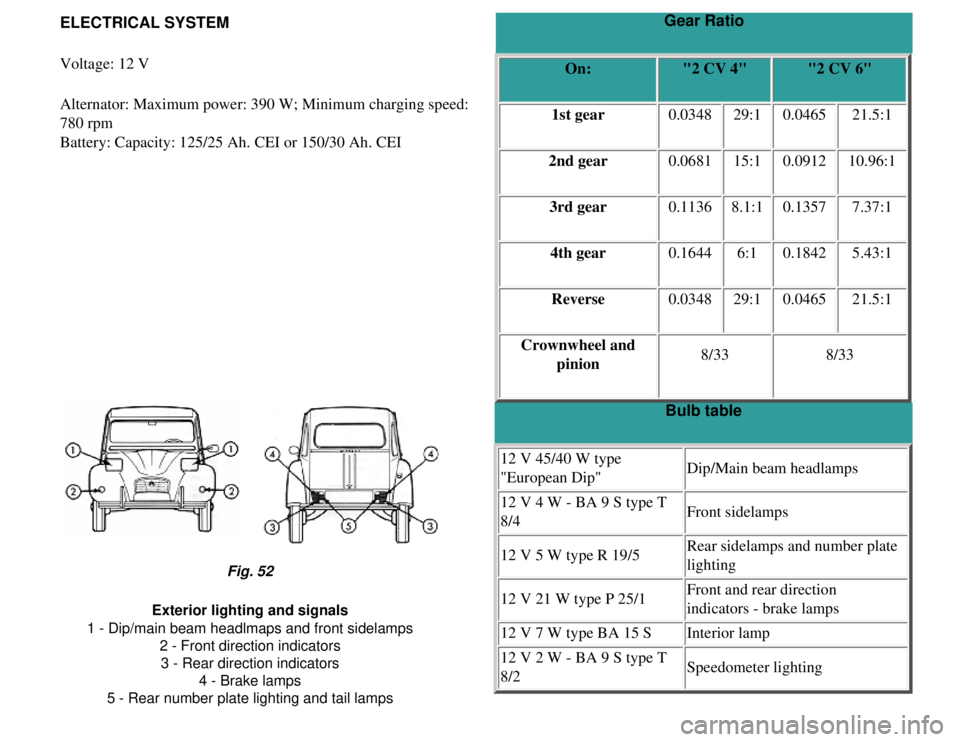

Gear Ratio
ELECTRICAL SYSTEM
Voltage: 12 V
Alternator: Maximum power: 390 W; Minimum charging speed:
780 rpm
Battery: Capacity: 125/25 Ah. CEI or 150/30 Ah. CEI On:
"2 CV 4" "2 CV 6"
1st gear 0.034829:10.0465 21.5:1
2nd gear 0.068115:10.0912 10.96:1
3rd gear 0.11368.1:10.1357 7.37:1
4th gear 0.16446:10.1842 5.43:1
Reverse 0.034829:10.0465 21.5:1
Crownwheel and pinion 8/33
8/33
Bulb table
12 V 45/40 W type
"European Dip" Dip/Main beam headlamps
12 V 4 W - BA 9 S type T
8/4 Front sidelamps
12 V 5 W type R 19/5 Rear sidelamps and number plate
lighting
12 V 21 W type P 25/1 Front and rear direction
indicators - brake lamps
12 V 7 W type BA 15 S Interior lamp
12 V 2 W - BA 9 S type T
8/2 Speedometer lighting
Fig. 52
Exterior lighting and signals
1 - Dip/main beam headlmaps and front sidelamps 2 - Front direction indicators3 - Rear direction indicators 4 - Brake lamps
5 - Rear number plate lighting and tail lamps

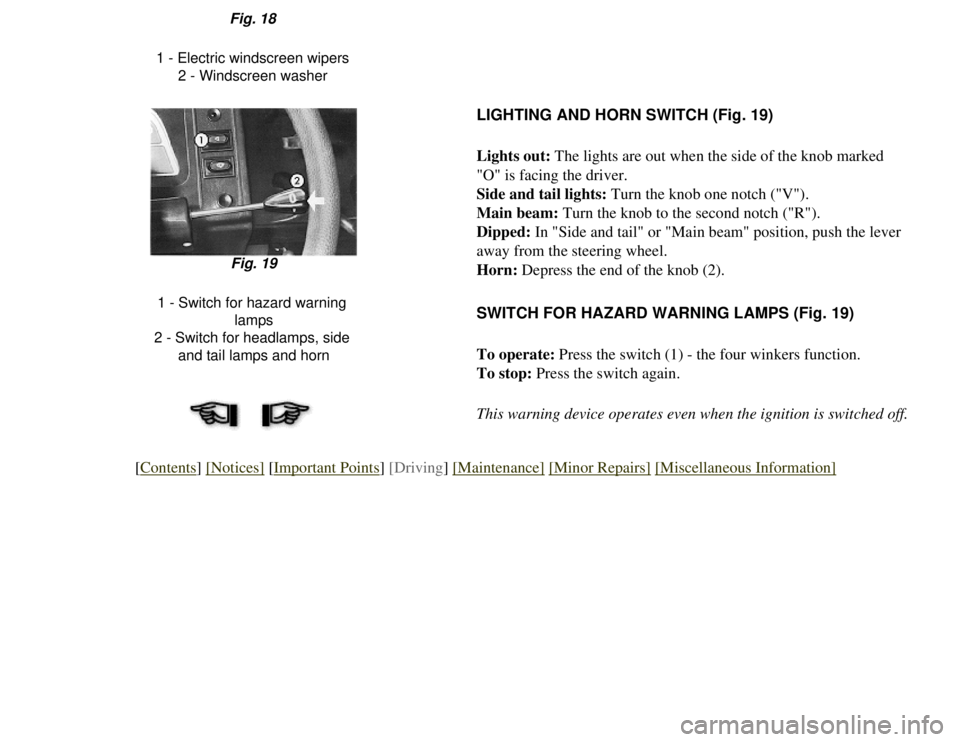

Fig. 18
1 - Electric windscreen wipers 2 - Windscreen washer
LIGHTING AND HORN SWITCH (Fig. 19)
Lights out: The lights are out when the side of the knob marked
"O" is facing the driver.
Side and tail lights: Turn the knob one notch ("V").
Main beam: Turn the knob to the second notch ("R").
Dipped: In "Side and tail" or "Main beam" position, push the lever
away from the steering wheel.
Horn: Depress the end of the knob (2).
Fig. 19
1 - Switch for hazard warning lamps
2 - Switch for headlamps, side and tail lamps and horn
SWITCH FOR HAZARD WARNING LAMPS (Fig. 19)
To operate: Press the switch (1) - the four winkers function.
To stop: Press the switch again.
This warning device operates even when the ignition is switched off.
