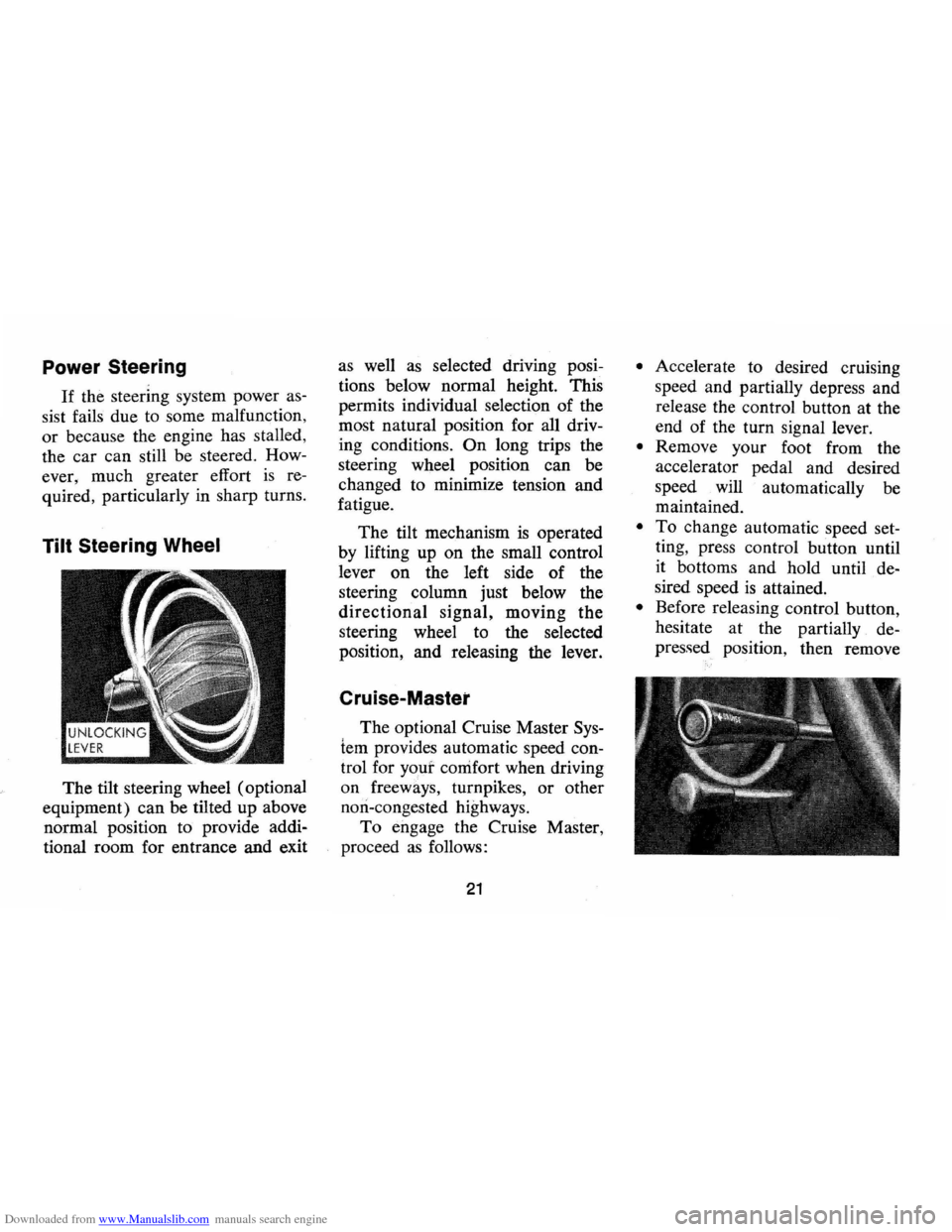

1973 CHEVROLET MONTE CARLO power steering

Downloaded from www.Manualslib.com manuals search engine Power Steering
If the steering system power as­
sist fails due to some malfunction,
or because the engine has stalled,
the car can still be steered. How­
ever, much greater effort
is re­
quired, particularly in sharp turns.
Tilt Steering Wheel
The tilt steering wheel (optional
equipment) can be tilted up above
normal position to provide addi­
tional room for entrance and exit as
well
as selected driving posi­
tions below normal height. This
permits individual selection of the
most natural position for all driv­
ing conditions.
On long trips the
steering wheel position can be
changed to minimize tension and
fatigue.
The tilt mechanism
is operated
by lifting up on the small control
lever
on the left side of the
steering column just below the
directional signal, moving the
steering wheel to the selected
position, and releasing the lever.
Cruise-Master
The optional Cruise Master Sys­
tem provides automatic speed con­
trol for
your comfort when driving
on freeways, turnpikes, or other
non-congested highways.
To engage the Cruise Master,
proceed
as follows:
21
• Accelerate to desired crUIsmg
speed and partially depress and
release the control button at the
end of the turn signal lever.
• Remove your foot from the
accelerator pedal and desired
speed will automatically be
maintained.
• To change automatic speed set­
ting , press control button until
it bottoms and hold until de­
sired speed
is attained.
• Before releasing control button,
hesitate at the partially de­
pressed position, then remove

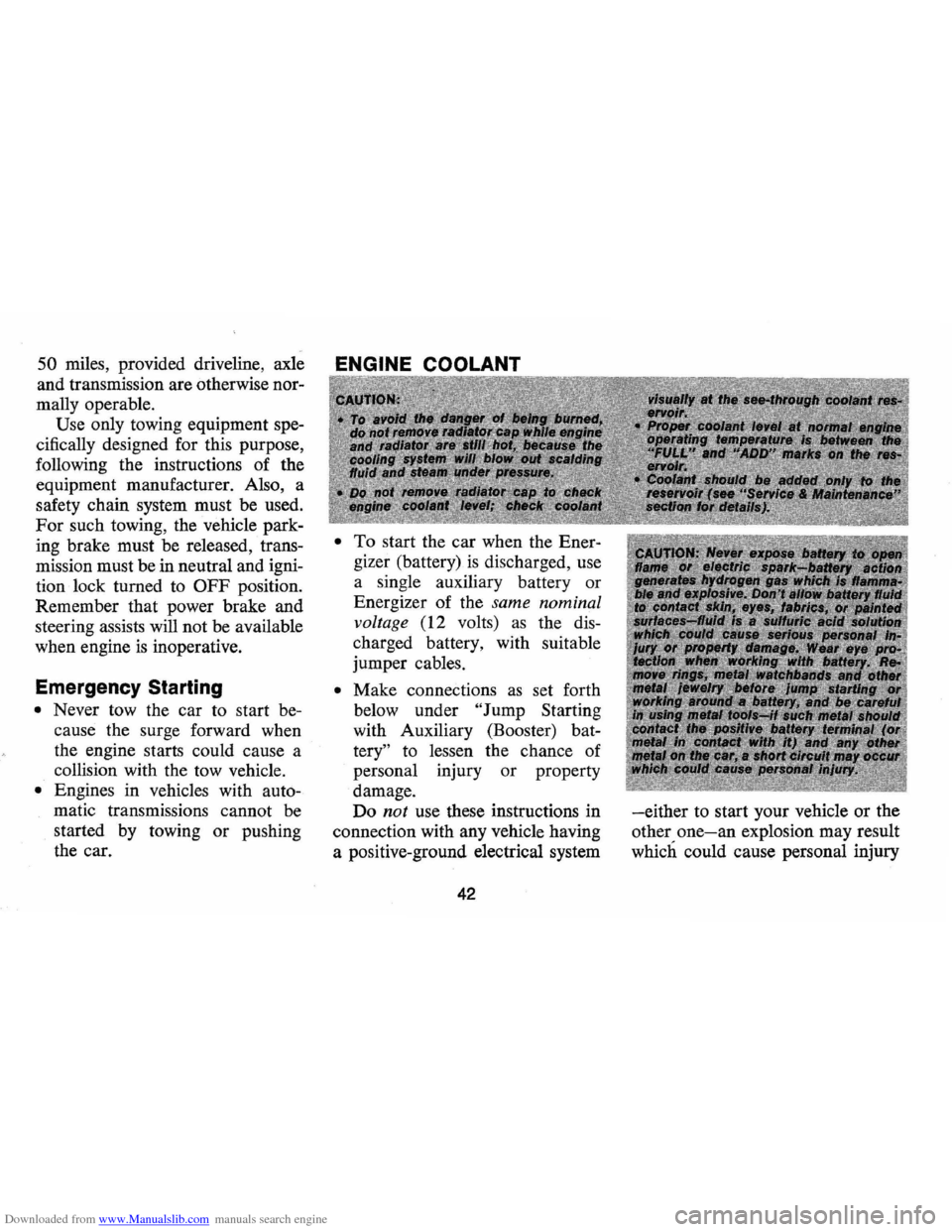

Downloaded from www.Manualslib.com manuals search engine 50 miles, provided driveline, axle
and transmission are otherwise
nor­
mally operable.
Use only towing equipment spe­
cifically designed for this purpose,
following the instructions of the
equipment manufacturer. Also, a
safety chain system must be used.
For such towing, the vehicle park­
ing brake must be released, trans­
mission must be in neutral and
igni­
tion lock turned to OFF position.
Remember that power brake and
steering assists will not be available
when engine
is inoperative.
Emergency Starting
• Never tow the car to start be­
cause the surge forward when
the engine starts could cause a
collision with the tow vehicle.
• Engines in vehicles with auto­
matic transmissions cannot be
started
by towing or pushing
the car.
ENGINE COOLANT
• To start the car when the Ener­
gizer (battery) is discharged, use
a single auxiliary battery or
Energizer of the
same nominal
voltage
(12 volts) as the dis­
charged battery, with suitable
jumper cables.
• Make connections as set forth
below under
"J ump Starting
with Auxiliary (Booster)
bat­
tery"
to lessen the chance of
personal injury or property
damage.
Do
not use these instructions in
connection with any vehicle having
a positive-ground electrical system
42
-either to start your vehicle or the
other
one-an explosion may result
which could cause personal injury

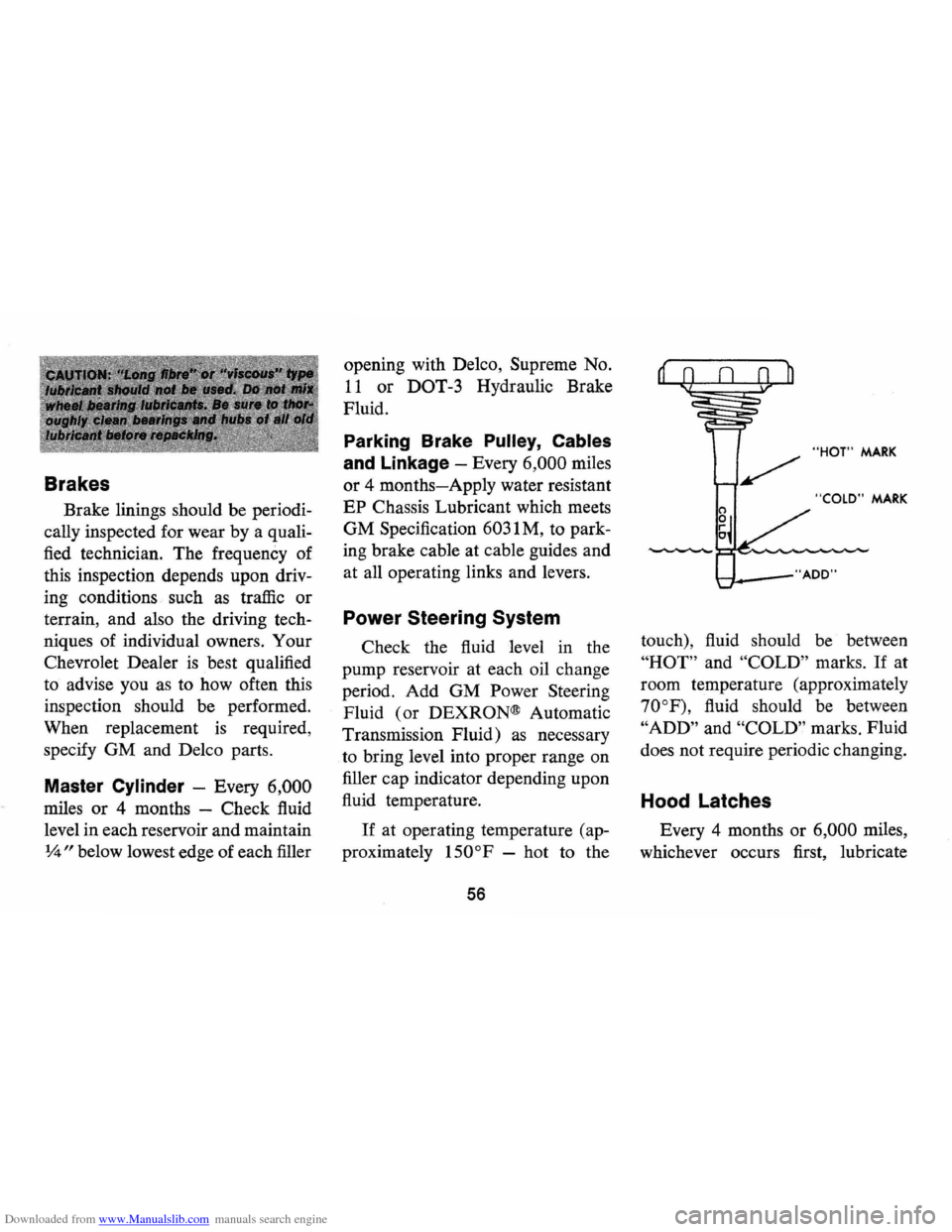

Downloaded from www.Manualslib.com manuals search engine Brakes
Brake linings should be periodi­
cally inspected for wear by a quali­
fied technician. The frequency of
this inspection depends upon driv­
ing conditions such
as traffic or
terrain, and also the driving tech­
niques of individual owners. Your
Chevrolet Dealer
is best qualified
to advise you
as to how often this
inspection should be performed.
When replacement
is required,
specify GM and Delco parts.
Master
Cylinder - Every 6,000
miles or 4 months -Check fluid
level in each reservoir and maintain
~ " below lowest edge of each filler opening
with Delco, Supreme No.
11 or DOT-3 Hydraulic Brake
Fluid.
Parking Brake
Pulley, Cables
and Linkage -Every 6,000 miles
or 4 months-Apply water resistant
EP Chassis Lubricant which meets
GM Specification 6031 M, to park­
ing brake cable at cable guides and
at all operating links and levers.
Power
Steering System
Check the fluid level in the
pump reservoir at each oil change
period. Add GM Power Steering
Fluid (or
DEXRON® Automatic
Transmission Fluid)
as necessary
to bring level into proper range on
filler cap indicator depending upon
fluid temperature.
If at operating temperature (ap­
proximately
150 °F - hot to the
56
"HOT" MARK
"COLD" MARK
touch), fluid should be between
"HOT" and "COLD" marks. If at
room temperature (approximately
70°F), fluid should be between
"ADD" and "COLD" marks. Fluid
does not require periodic changing.
Hood
Latches
Every 4 months or 6,000 miles,
whichever occurs first, lubricate

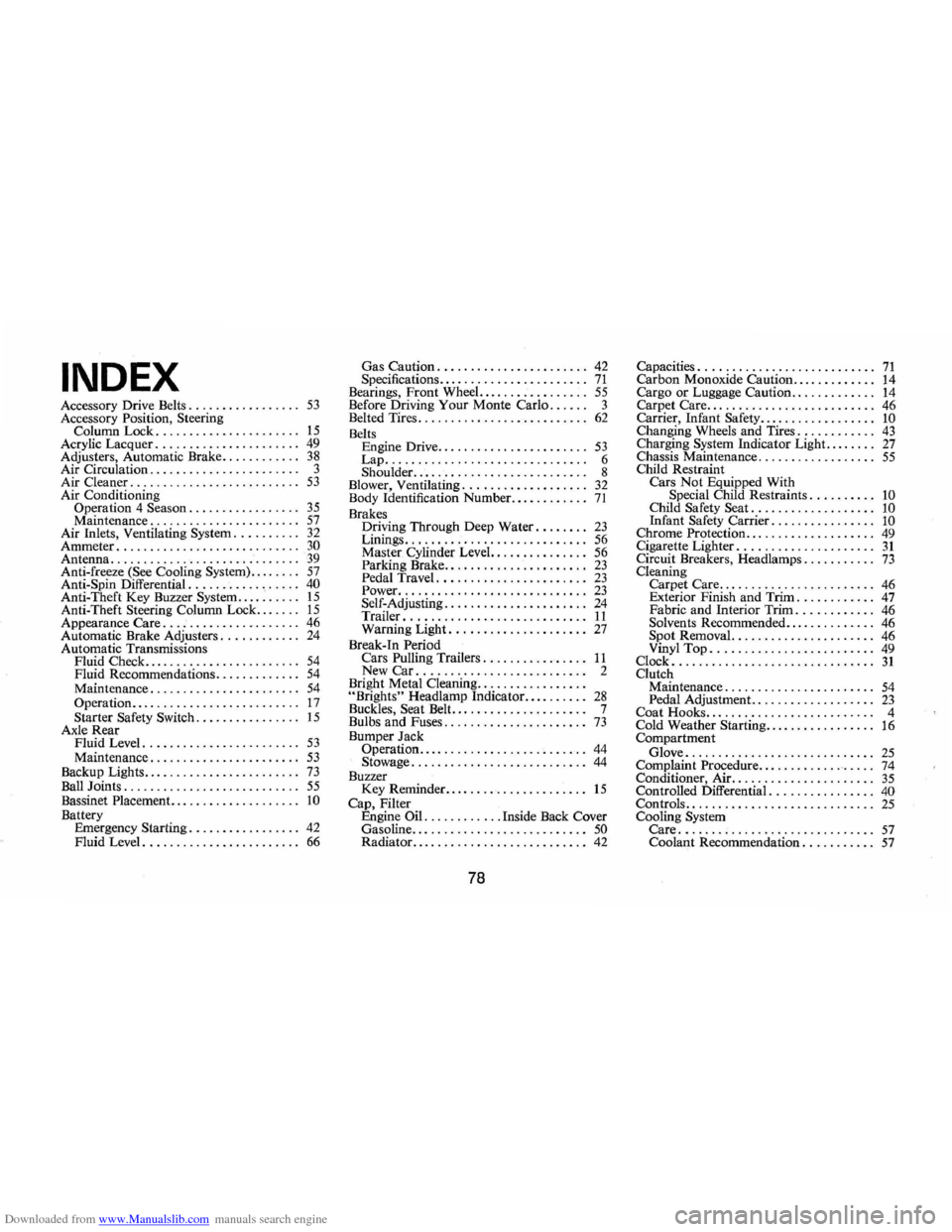

Downloaded from www.Manualslib.com manuals search engine INDEX
Accessory Drive Belts ............ , .... 53 Accessory Position, Steering Column Lock ...................... 15 Acrylic Lacquer ..................... , 49
Adjusters, Automatic Brake. . . . . . . . . . .. 38 Air Circulation . . . . . . . . . . . . . . . . . . . . . .. 3
Air Cleaner. . . . . . . . . . . . . . . . . . . . . . . . .. 53 Air Conditioning
Operation 4 Season. . . . . . . . . . . . . . . .. 35 Maintenance. . . . . . . . . . . . . . . . . . . . . .. 57 Air Inlets, Ventilating System .......... 32 Ammeter ............................ 30 Antenna ............................. 39 Anti-freeze (See Cooling System) ........ 57 Anti-Spin Differential. . . . . . . . . . . . . . . .. 40 Anti-Theft Key Buzzer System . . . . . . . . .. 15 Anti-Theft Steering Column Lock ....... 15 Appearance Care. . . . . . . . . . . . . . . . . . . .. 46 Automatic Brake Adjusters. . . . . . . . . . .. 24 Automatic Transmissions
Fluid Check ........................ 54 Fluid Recommendations. . . . . . . . . . . .. 54 Maintenance ...................... , 54 Operation.. . . . . . . . . . . . . . . . . . . . . . . .. 17 Starter Safety Switch ............... , 15 Axle Rear
Fluid Level. . . . . . . . . . . . . . . . . . . . . . .. 53 Maintenance ...................... , 53 Backup Lights ........................ 73 Ball Joints .......................... , 55 Bassinet Placement. .. . . . . . . . . . . . . . . . .. 10 Battery
Emergency Starting. . . . . . . . . . . . . . . .. 42 Fluid Level. . . . . . . . . . . . . . . . . . . . . . .. 66
Gas Caution ...................... , 42
Specifications. . .. . . . . . . . . . . . . . . . . . .. 71 Bearings, Front Wheel. ............... , 55 Before Driving Your Monte Carlo. . .. .. 3
Belted Tires. . . . . . . . . . . . . . . . . . . . . . . . .. 62
Belts
Engine Drive ...................... , 53 Lap ............................... 6 Shoulder ...... , .. . . .. .. . . . . .. . . .. .. 8
Blower, Ventilating ................... 32 Body Identification Number. ........... 71 Brakes
Driving Through Deep Water ........ 23 Linings ............................ 56
Master Cylinder Level. . . . . . . . . . . . . .. 56
Parking Brake. . . . . . . . . . . . . . . . . . . . .. 23 Pedal Travel ...................... , 23 Power ............................. 23 Self-Adjusting.. .. .. .. .. .. .. . . . . .. .. 24 Trailer ................. ........... 11 Warning Light. .................... 27 Break-In Period
Cars Pulling Trailers. . . . . . . . . . . . . . .. 11 New Car .......................... 2
Bright Metal Cleaning ................ . "Brights" Headlamp Indicator ......... , 28 Buckles, Seat Belt. . . . . . . . . . . . . . . . . . . .. 7
Bulbs and Fuses. . . . . . . . . . . . . . . . . . . . .. 73 Bumper Jack
Operation .......................... 44 Stowage .................... ....... 44 Buzzer
Key Reminder. . . . . . . . . . . . . . . . . . . . .. 15 Cap, Filter
Engine Oil ............ Inside Back Cover
Gasoline ....................... .... 50 Radiator. . . . . . . . . . . . . . . . . . . . . . . . . .. 42
78
Capacities. . . . . . . . . . . . . . . . . . . . . . . . . .. 71 Carbon Monoxide Caution ............. 14
Cargo or Luggage Caution. . . . . . . . . . . .. 14 Carpet Care ................... , .... " 46
Carrier, Infant Safety .................. 10 Changing Wheels and Tires. . . . . . . . . . .. 43 Charging System Indicator Light. ..... " 27 Chassis Maintenance .................. 55 Child Restraint
Cars Not Equipped With
Special Child Restraints. . . . . . . . .. 10 Child Safety Seat ............... .. " 10 Infant Safety Carrier. . . . . . . . . . . . . . .. 10 Chrome Protection.. . . . . . . . . . . . . . . . . .. 49 Cigarette Ligh ter. . . . . . . . . . . . . . . . . . . .. 31 Circuit Breakers, Headlamps ......... " 73 Cleaning
Carpet Care ...................... " 46
Exterior Finish and Trim. . . . . . . . . . .. 47 Fabric and Interior Trim. . . . . . . . . . .. 46 Solvents Recommended .............. 46 Spot Removal. . . . . . . . . . . . . . . . . . . . .. 46 Vinyl Top. . . . . . . . . . . . . . . . . . . . . . . .. 49
Clock ............................... 31 Clutch Maintenance. . . . . . . . . . . . . . . . . . . . . .. 54 Pedal Adjustment. . . . . . . . . . . . . . . . . .. 23 Coat Hooks... . .. .. . . .... .. . . .... . ... 4
Cold Weather Starting ................. 16 Compartment
Glove ............................. 25 Complaint Procedure .................. 74 Conditioner, Air ... , .................. 35 Controlled Differential .............. " 40 Controls ............................. 25 Cooling System Care .............................. 57 Coolant Recommendation. . . . . . . . . .. 57

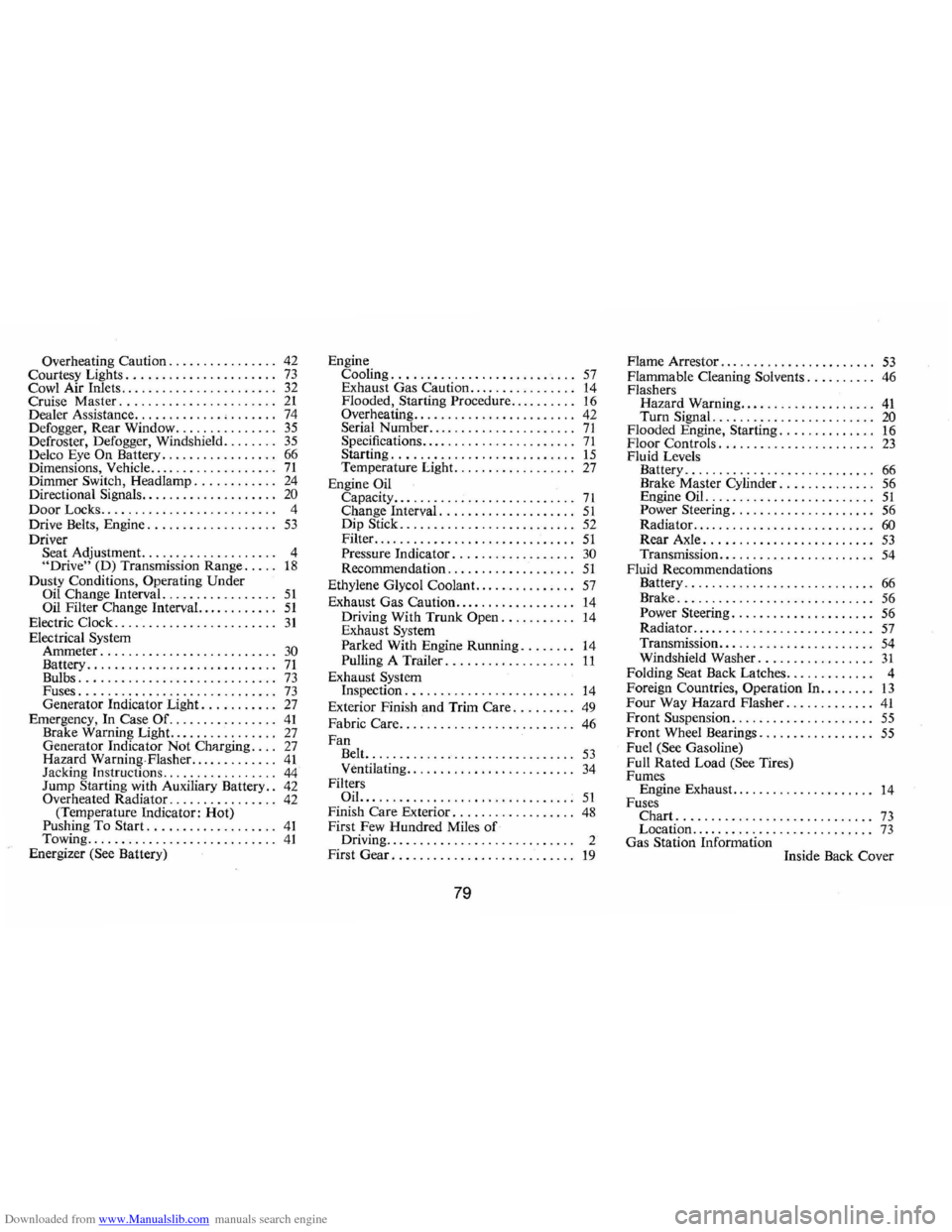

Downloaded from www.Manualslib.com manuals search engine Overheating Caution. . . . . . . . . . . . . . .. 42
Courtesy Lights ........... ........... 73 Cowl Air Inlets ....................... 32 Cruise Master ....................... 21 Deale r Assistance ............. , ...... , 74 Defogger, Rear Window ............... 35 Defroster, Defogger, Windshield ........ 35 Delco Eye On Battery. . . . . . . . . . . . . . . .. 66 Dimensions, Vehicle .................. , 71 Dimmer Switch, Headlamp. . . . . . . . . . .. 24 Directional Signals. . . . . . . . . . . . . . . . . . .. 20 Door Locks. . . . . . . . . . . . . . . . . . . . . . . . .. 4 Drive Belts, Engine. . . . . . . . . . . . . . . . . .. 53 Driver Seat Adjustment ................... , 4 "Drive" (D) Transmission Range ..... 18 Dusty Conditions, Operating Under
Oil Change Interval. ................ 51 Oil Filter Change Interval.. . . . . . . . . .. 51 Electric Clock ........................ 31 Electrical System Ammeter .......................... 30 Battery ............ ................ 71 Bulbs ............................. 73 Fuses ..... , ....................... 73 Generator Indicator Light. . . . . . . . . .. 27 Emergency, In Case Of. ............... 41 Brake Warning Light. . . . . . . . . . . . . . .. 27 Generator Indicator Not Chllrging ... , 27 Hazard Warning· Flasher. ............ 41 Jacking Instructions ................. 44 Jump Starting with Auxiliary Battery .. 42 Overheated Radiator. . . . . . . . . . . . . . .. 42 (Temperature Indicator: Hot) Pushing To Start. .................. 41 Towing ............................ 41 Energizer (See Battery) Engine
Cooling
........................... 57 Exhaust Gas Caution ................ 14 Flooded , Starting Procedure ......... , 16 Overheating. . . . . . . . . . . . . . . . . . . . . . .. 42 Serial Number. ....... .............. 71 Specifications .............. ..... ... , 71 Starting. . . . . . . . . . . . . . . . . . . . . . . . . .. 15 Temperature Light. . . . . . . . . . . . . . . . .. 27 Engine Oil Capacity.. . .. .. .. .. . . .. .. . . .. .. .. .. 71 Change Interval. . . . . . . . . . . . . . . . . . .. 51 Dip Stick. . . . . . . . . . . . . . . . . . . . . . . . .. 52 Filter. ....................... : . . . .. 51 Pressure Indicator . . . . . . . . . . . . . . . . .. 30 Recommendation. . . . . . . . . . . . . . . . . .. 51
Ethylene Glycol Coolant. . . . . . . . . . . . . .. 57
Exhaust Gas Caution ................. , 14 Driving With Trunk Open. . . . . . . . . .. 14
Exhaust System
Parked With Engine Running. . . . . . .. 14 Pulling A Trailer .................. , 11
Exhaust System Inspection ........................ , 14
Exterior Finish and Trim Care. . . . . . . .. 49
Fabric Care .... " .................... 46 Fan
Belt. .............................. 53 Ventilating. . . . . . . . . . . . . . . . . . . . . . . .. 34 Filters OiL ........... ....... , .. ......... , 51 Finish Care Exterior. . . . . . . . . . . . . . . . .. 48 First Few Hundred Miles of Driving........... ............. .. .. 2
First Gear. . . . . . . . . . . . . . . . . . . . . . . . . .. 19
79
Flame Arrestor ..... ........ ......... , 53 Flammable Cleaning Solvents. . . . . . . . .. 46 Flashers
Hazard Warning .................... 41 Turn Signal. . . . . . . . . . . . . . . . . . . . . . .. 20 Flooded Engine, Starting. . . . . . . . . . . . .. 16 Floor Controls. . . . . . . . . . . . . . . . . . . . . .. 23 Fluid Levels
Battery ...................... ..... , 66 Brake Master Cylinder. . . . . . . . . . . . .. 56 Engine Oil. ........................ 51 Power Steering. . . . . . . . . . . . . . . . . . . .. 56 Radiator. . . . . . . . . . . . . . . . . . . . . . . . . .. 60 Rear Axle. . . . . . . . . . . . . . . . . . . . . . . .. 53 Transmission. . . . . . . . . . . . . . . . . . . . . .. 54 Fluid Recommendations
Battery ........................... , 66 Brake ............................. 56 Power Steering . . . . . . . . . . . . . . . . . . . .. 56 Radiator. . . . . . . . . . . . . . . . . . . . . . . . . .. 57 Transmission .... ................... 54 Windshield Washer ................ , 31 Folding Seat Back Latches ............ , 4 Foreign Countries, Operation In ...... .. 13 Four Way Hazard Flasher ....... " .... 41 Front Suspension . ................... , 55 Front Wheel Bearings ................ , 55 Fuel (See Gasoline)
Full Rated Load (See Tires)
Fumes Engine Exhaust. . . . . . . . . . . . . . . . . . .
.. 14 Fuses Chart. ......................... .. , 73 Location .................... ...... , 73 Gas Station Information
Inside Back Cover

Downloaded from www.Manualslib.com manuals search engine Mirrors, Rear View Inside, Adjustment Up or Down.. .. .. 6 Inside, Day/Night. . :. . . . . . . . . . . . . . . . 6 Mountainous Terrain
Driving Down Grades ....... ........ 19 Transmission Fluid Change Interval. .. 54 "Neutral" (N) Transmission Range ..... 18 New Car Break-In. . . . . . . . . . . . . . . . . . . . 2 Oil Additives ........................ .'. 51 Change Interval, Engine ............. 51 Checking Engine Oil Level. .... .. , . .. 52 Engine ............................ 51 Filter .............................. 51 Pressure Indicator Light/Gauge. . . . . .. 29 Recommendations . . . . . . . . . . . . . . . . .. 51 Transmissions . . . . . . . . . . . . . . . . . . . . .. 54 Viscosity ........................... 51 Operation in Foreign Countries ......... 13 Other Controls and Features. . . . . . . . . .. 40 Outside
Air Vents ....................... ... 32 Overheated Engine
Indicator Light. . . . . . . . . . . . . . . . . . . .. 27 What To Do. . . . . . . . . . . . . . . . . . . . . .. 27 Overseas Operation. . . . . . . . . . . . . . . . . .. 13 Owner Assistance. . . . . . . . . . . . . . . . . . . .. 73 Paint Care .............................. 49 Touch Up ......................... 49 Parking Brake ............................. 23 Lights ............................. 28 "Park" (P) Transmission Position ..... 18 Precautions ...................... " 18 Polishing And Waxing ................. 48 Positive Traction Differential. .......... 40
Power Brakes ............. , .............. 23 Seats.. . . . . . . . . . . . . . . . . . . . . . . .. . . .. 5 Steering .. . . . . . . . . . . . . . . . . . . . . . . . .. 21 Windows........................ .. 5 Pressure, Tire Inflation. . . . • . . . . . . . . . .. 60 Preventive Maintenance ............. " 60 Pushing To Start. .......... .... ...... 41 Radiator Coolant ........................... 57 Coolant Level Inspection. . . . . . . . . . .. 57 Overheating ........................ 42 Pressure Cap. . . . . . . . . . . . . . . . . ... 42, 60 Radio AM/FM ...................... ..... 38 Antenna ........................... 38 Stereo ............................. 38 Tape System. . . . . . . . . . . . . . . . . . . . . .. 39 Raising Car With Jack.. . . . . . . . . . . . . .. 44
Rear Axle
.............................. 53 Speaker ........................... 38 Window Defogger. . . . . . . . . . . . . . . . .. 34 Rearview Mirrors, Inside. . . . . . . . . . . . . . 6 Registration, Vehicle Engine Number ............... , .... 71 . Vehicle Identification Number. ....... 71 Replacement Tires. . . . . . . . . . . . . . . . . . .. 64 Replacement Wheels. . . . . . . . . . . . . . . . .. 64 Release , Hood .......... Inside Back Cover
Restarting. . . . . . . . . . . . . . . . . . . . . . . . . .. 16 Restraints
Child .............................. 10 Head.............................. 6 Lap Belts.......................... 6
Methods Of Restraining Children .. • .. 10 Shoulder Belts. .. . . . . . . . . . . . . . . . . . . . 8
Rests, Head (See Head Restraints)
81
Retractors, Lap Belt. . . . . . . . . . . . . . . . .. 7 "Reverse" (R) Transmission Range 18 Roof Care, Vinyl. . . . . . . . . . . . . . . . . . . .. 49
Rotation, Tire.. . . . . . . . . . . . . . . . . . . . . .. 62 Safety Belts (Seat Belts). . . . . . . . . . . . . . . . . . . . 6 Carrier, Infant. .. . . . . . . . . . . . . . . . . . .. 10 Seat, Child.. . . . . . . . . . . . . . . . . . . . . . .. 10 Schedule Break-In... ...... .. ...... .... .. .... 2 Maintenance. . . . . . . . . . . . . . . . . . . . . .. 50 Seat Adjustment, Manual. . . . . . . . . . . . . . .. 4
Adjustment, Power.... .. .... .. .... .. 5 Back Latch, Folding Front. . . . . . . . . .. 4 Child Safety.. .. .. . .. . . . . . . . .. .. . ... 10 Head Restraints. . . . . . . . . . . . . . . . . . . . 6 Seat Belts
Child Restraint. . . . . . . . . . . . . . . . . . . .. 10 Inspection and Care ......... ....... , 9
Lap ... , .................... ....... 6 Retractors. . . . . . . . . . . . . . . . . . . . . . . .. 7 Shoulder........................... 8
Self-Adjusting Brakes. . . . . . . . . . . . . . . .. 24 Service and Maintenance . . . . . . . . . . . . .. 50 Shift Linkage Maintenance ............... 55 Operation (See Transmission)
Shoulder Belts Adjustment. . . . . . . . . . . . . 8 Side Marker Lights .................. . Signals, Turn ......................... 20 Solvents, Recommended Cleaning. . • . . .. 46 Sound Systems (See Radio) Spare Tire
Jacking Instructions ... , ............. 46 Spark Knock (See Fuel
Recommendations)
Speaker, Rear ........................ 38

Downloaded from www.Manualslib.com manuals search engine Specifications Body; . ............ " ........... , .. 71 Capacities. . . . . . . . . . . . . . . . . . . . . . . .. 7L Dimensions. . . . . . . . . . . . . . . . . . . . . . .. 71 Engine ...... . : ., .. . , ......... , .... 72 Filters ............. . ; . . . . . . . . . . . . .. 72 Fuses ..... .. , . ..... ' ............... 73 Light Bulbs ...... ............... ; .. 73 Speed Corttrol (Cruise Master). . . . . . . . .. 21 Speedometer .................. , . . . . .. 25 Spot Cleaning . . . . . . . . . . . . . . . . . . . . . . .. 46 Stainless Steel Protection . . . . . . . . . . . . . . 48 Stains, Removal of. . . . . . . . . . . . . . . . . . .. 46 Starter Interlock. . . . . . . . . . . . . . . . . . . . . . . . .. 15 Safety Switch .................. , .. " 15 Starting Automatic Transmission Cars. . . . . . .. 15 Emergency ...... , ..... , .......... .. 42 Manual Transmission Cars ........... 16 Exhaust Gas Caution .............. .. 14 Folding Seats. . . . . . . . . . . . . . . . . . . . .. 4
Jack Stowage. . . . . . . . . . . . . . . . . . . . . .. 44 Steering Column Controls .... ' ............. " 15 Column Lock. . . . . . . . . . . . . . . . . . . . .. 15 Gear Lubricant. . . . . . . . . . . . . . . . . . . .. 55 Linkage Inspection ................ " 55 Maintenance ... ; . . . . . . . . . . . . . . . . . .. 55 Power ... ..... ................ , .... 21 Wheel, Tilt.... . . . . . . . . . . . . . . . . . . . .. 21 Stereo Radio ................... .......... 38 Tape System. . . . . . . . . . . . . . . . . . . . . .. 39 Straps, Safety (See Seat Belts) Storage Of Items. . . . . . . . . . . . . . . . . . . . .. 6 Sun Visor Adjustment .. Safety Checks Insert Suspension Maintenance ........... .... 55
Tape System ; Stereo. . . . . . . . . . . . . . . . . . . 39
Temperature Control, Cooling. . . . . . . . . . . . . . . . . .
.. 34 Control, Heating. . . . . . . . . . . . . . . . . . .. 34 Indicator Light/Gauge ....... ........ 29 Thermostat. . . . . . . . . . . . . . . . . . . . . . . . .. 59 Tilt Steering Whe el... .. . . . . . . . . . . . . . .. 21 Tire
Belted ..... ..... ...... .. .......... . 60 Care .............................. 60 Cl)anging ......... ... .... ...... ; . . . 43 Full Rated Load. . . . . . . . . . . . . . . . . . .. 62 High Speed Operation ............... 6 2
Hydroplaning. . . . . . . • . . . . . . . . . . . . .. 65 Infl ation Pressure ................. .. 61 Inspection . . . . . . . . . . . . . . . . . . . . . . . .. 62 Load Limit ...................... " 61 Rotation. .. . . . . . . . . . . . . . . . . . . . . . . .. 63
Traction ........................... 65 Tread Wear Indicators . . . . . . . . . . . . . . . . . . . . . .. 61 Usage and Options . . . . . . . . . . . . . . . . .. 60 Towing
Caution ............................ 41 Disabled Vehicle .... '" ............. 41 To Start. .................. " .... .. 41 Toxic
Cleaning Solvents ................... 46 Exhaust Fumes ..................... 14 Traction , Wet Roads .......... ........ " 65 Traffic Hazard Flasher. . . . . . . . . . . . . . .. 41 Trailer Hauling
Break-In Period. . .. . .. . . . . .. . .. .... 11 Cautions ........................... 12 Equipment.. . .. .. .. . .. . .. .. .. .. .... 11 Special Maintenance ............. .. .. 12 Tire Inflation. . . . . . . . . . . . . . . . . . . . . .. 11 Trailer Tongue Load. . . . . . . . . . . . . . .. 11
82
Transmission 3-Speed Manual. ... ................ 19 Automatic .............. .......... , 17 Braking Effect On Hills ...... " ...... 19 Checking Fluid Level. . . . . . . . . . . . . . .. 54 Fluid And Sump Filt er. . . . . . . . . . . . .. 54 Fluid Change Interval. . . . . . . . . . . . . .. 54 Maintenance . . . . . . . . . . . . . . . . . . . . . .. 54 Turbo Hydramatic .................. 18 Tread Wear
Indicator s. . . . . . . . . . . . . . . . . . . . . . .. 63 Trim Care, Interior. . . . . . . . . . . . . . . . . .. 46 Trunk
Driving With Trunk Open ........... 14 Turbo-H ydramatic
Maintenance. . . . . . . . . . . . . . . . . . . . . .. 53 Operation. . . . . . . . . . . . . . . . . . . . . . . . .. 17 Turn Signal s and Lane Change
Feature .................... ........ 20 Underbody Care. . . . . . . . . . . . . . . . . . . . .. 65 Upholstery And Carpet Care ........... 46 Vehicle Identification Number. ....... " 71 Vehicle Loading ...................... 62 V entilating Blower .................... 32 V entilating Grilles .................. " 32 Ventilating System. . . . . . . . . . . . . . . . . . .. 32 V ents Outside Air ................... " 32 Vinyl
Fabric Care Interior. . . . . . . . . . . . . . . .. 46 Roof Care. .. . . . . . . . . . . . . . . . . . . . . .. 49 Volatile Cleaning Solvents Caution ........................... 46 Volume Control, Radio ...... ........ .. 38 Warning Flasher, Hazard .............. 41 Warning Lights
Brake .................. . .......... 27

Downloaded from www.Manualslib.com manuals search engine Engine Temperature . . . . . . . . . . . . . . . .. 27 Generator. . . . . . . . . . . . . . . . . . . . . . . . .. 27 Oil Pressure ........................ 26 Warranty (See Warranty Folder)
Washers Windshield
................. ; ....... 31 Washing .. ............ ....... ........ 48 Waxing And Polishing .......... ....... 49
Wheel Bearings, Front.. . . . . . . . . . . . . . .. 55
Wheel Changing . . . .. . . . . . . . . . . . . . . . . . 43 Washer Use In Cold Weather . . . . . . .. 31
Wheel, Tilt Steering ................... 21 Washer Solution ....... ; ............ 31
Windows Wiper
Blades. . . . . . . . . . . . . . . . . . . . . .. 31 Power............................. 5 Rear Defogger .............. '" ..... 35 Wipers And Washers .......... ...... 31
Wrecker, Towing .... ; ...... .......... 41 Windshield
Defrosting and Zone Offices ........... ............ 76 , 77
Defogging. . . . . . . . . . . . . . . . . . . . . .. 35
83
