Unusual Starting Conditions
Flooded En Int-Excessive "pumping" of the accelerator pedal may "flood" the engine,
causing a temporary no·start condition. A
strong odor of gasoline is an indication of a flooded engine. To start the engine under flooded conditions, depress the accelerator
pedal fully to the floor and hold there while
cranking untIl engine starts. Holding the accelerator fully to the floor opens the choke, allowing excess fuel to be eliminated from
the engine. Clearing the engine may take
about 10 seco'nds, depending on the amount
of excess fuel in the engine.
Extremely Cold Weather-When starting
your car at temperatures of zero or below,
depress the accelerator to the normal position
of one·third to one· half of Its full travel and crank the engine. Hold the key in the start
position until the engine is running. If the
engine attempts to start but does not, and the total engine cranking time required about 20 seconds, depress the accelerator all the
way to the floor until the engine starts run·
ning. If it does not start then return accelerator
to the one· third to one·half position and continue cranking. It may be necessary to repeat this procedure. NOTE: See "Recom·
mended Engine Oil Grades" and "If You Have an Automatic Transmission" in the
"Service Tips" section of this manual for recommendations regarding cold weather
starting. A larger capacity battery is available from your Dealer for use in extremely cold
areas.
BREAK·IN RECOMMENDATIONS-A
long break-in period is not required for your
new car. Drive moderately during the first 300 miles. After the initial 50 miles, speeds up to 50 or 60 mph are desirable. While cruising,
brief full·throttle accelerations contribute to a
good break·in (Within limits of state and local traffic laws). Wide· open throttle accelerations in low gear can be detrimental and should
be avoided for at least 500 miles. The oil installed in the engine at the factory is a high quality lubricant, classified "For
Service MS", and should be retained until
the first regular oil change. It is not unusual
for a new engine to use a certain amount of oil during this period. Have the oil level checked each time you stop for gasoline. If
oil is added, use only oils labeled on the con·
tainer "For Service MS" and of the weight required for the outside temperature, as
described on page 38.
11

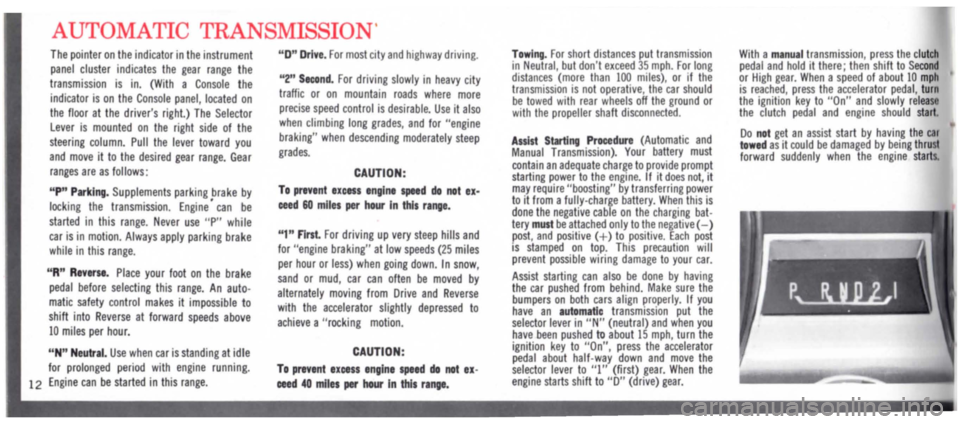

AUTOMATIC TRANSMISSION '
The pointer on the indicator in the instrument panel cluster indicates the gear range the
transmission is in. (With a Console the
indicator is on the Console panel, located on the floor at the driver's right.) The Selector Lever is mounted on the right side of the
steering column. Pull the lever toward you and move it to the desired gear range. Gear
ranges are as follows:
"P" Parking. Supplements parking brake by
locking the transmission. Engine' can be
started in this range. Never use " P " while
car is in motion. Always apply parking brake while in this range.
"R" Reverse. Place your foot on the brake
pedal before selecting this range. An auto· matic safety control makes it impossible to
shift into Reverse at forward speeds above 10 miles per hour.
"N " Neutral. Use when car is standing at idle for prolonged period with engine running.
12 Engine can be started in this range.
"0 " Drive. For most city and highway driving.
"2" Second. For driving slowly in heavy city
traffic or on mountain roads where more precise speed control is desirable. Use it also when climbing long grades, and for "engine
braking" when descending moderately steep grades.
CAUTION:
To prevent IICes s engine speed do not ex·
ceed 60 miles per hour In this range.
" 1" First. For driving up very steep hills and for "engine braking" at low speeds (25 miles
per hour or less) when going down. In snow,
sand or mud, car can often be moved by alternately moving from Drive and Reverse with the accelerator slightly depressed to
achieve a "rocking motion.
CAUTION:
To prevent excess engine speed do not ex­
ceed 40 miles per hour In this range.
Towing. For short distances put transmission in Neutral, but don't exceed 35 mph. For long distances (more than 100 miles), or If the transmiSSion is not operative, the car should be towed with rear wheels off the ground or with the propeller shaft disconnected.
Assist Starting Procedure (Automatic and Manual Transmission). Your battery must contain an adequate charge to provide prompt starting power to the engine. If it does not, it may require "boosting" by transferring power t o it from a fully-charge battery. When this is done the negative cable on the charging bat­tery must be attached only to the negative (- ) post, and positive (+ ) to positive. Each post IS stamped on top. This precaution will prevent possible wiring damage to your car.
Assist starting can also be done by having the car pushed from behind. Make sure the bumpers on both cars align properly. If you have an automatic transmission put the selector lever in "N" (neutral) and when you have been pushed to about 15 mph, turn the ignition key to "On", press the accelerator pedal about half-way down and move the selector lever to "I" (first) gear. When the engine starts shift to "0" (drive) gear.
With a m anual transmission, press the clutch pedal and hold it there; then shift to Second or High gear. When a speed of about 10 mph is reached, press the accelerator pedal, turn the ignition key to "On" and slowly release the clutch pedal and engine should start.
Do not get an assist start by having t h e cal towed as it could be damaged by being thrust forward suddenly when the engine starts.

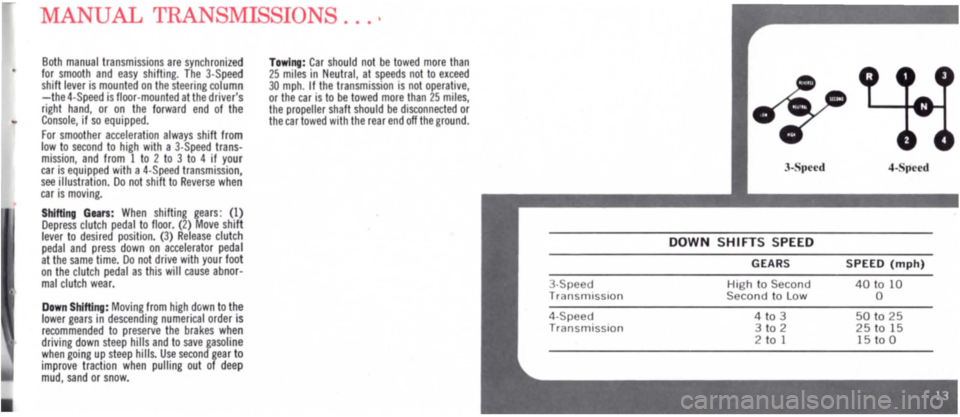

MANUAL TRANSMISSIONS ....
Both manual transmissions are synchronized for smooth and easy shifting. The 3·Speed shift lever is mounted on the steering column -the 4·Speed is floor-mounted at the driver's right hand, or on the forward end of the Console, if so equipped. For smoother acceleration always shift from low to second to high with a 3-Speed trans­mission, and from 1 to 2 to 3 to 4 if your car is equipped with a 4-Speed transmission, see illustration. Do not shift to Reverse when car is moving.
Shifting Gears: When shifting gears: (1) Depress clutch pedal to floor. (2) Move shift lever to desired position. (3) Release clutch pedal a nd press down on accelerator peda I at the same time. Do not drive with your foot on the clutch pedal as this will cause abnor­mal clutch wear.
Down Shifting: Moving from high down to the lower gears in descending numerical order is recommended to preserve the brakes when driving down steep hills and to save gasoline when going up steep hills. Use second gear to improve traction when pulling out o f deep mud, sand or snow.
Towing: Car should not be towed more than 25 miles in Neutral, at speeds not to exceed 30 mph. If the transmission is not operative, or the car is to be towed more than 25 miles, the propeller shaft should be disconnected or the car towed with the rear end off the ground.
3·Speed TransmiSSion
4 -Speed
TransmiSSion
3-S pecd
DOWN SHIFTS SPEED
GEARS
High to Second Second to Low
4to 3
3 to 2
2 to 1
4-Spced
SPEED (mph)
40 to 10 o
50 to 25 25 to 15 15 to 0

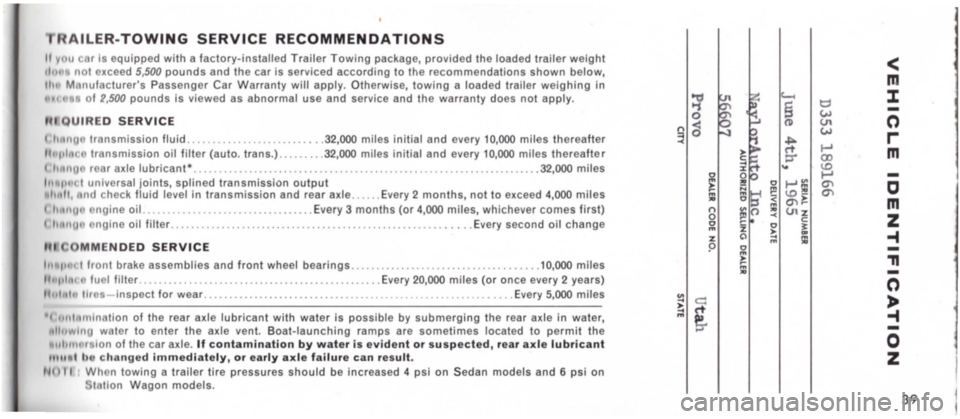

RAILER-TOWING SERVIICE RECOMMENDATIONS
II y"1I C r Is equipped with a factory-installed Trailer Towing package, provided the loaded trailer weight ,10.. not exceed 5,500 pounds and the car is serviced according to the recommendations shown below, ,II. M nufacture r's Passenger Car Warranty will apply. Otherwise, towing a loaded trailer weighing In I I of 2,500 pounds is viewed as abnormal use and service and the warranty does not apply.
I It IIIU' transmission fluid ........................... 32,000 miles initial and every 10,000 miles thereafter
"'111 H' Ir nsmissi on oil filter (auto . trans .) ......... 32,000 miles initial and every 10,000 miles thereafter
I It I" I' r r axle lubricant· ............................. , ............................ , ....... , .. 32,000 miles III P" I universal joints, splined transmission output "III, IIld check fluid level in transmission and rear axle ...... Every 2 months, not to exceed 4,000 miles
I I. 11111 nglne oil, , ........................... , .... Every 3 months (or 4,000 miles, whichever comes first)
I II 111' ngine oil filter ................ " .. " ..................................... Every second oil change
"' ( MMENDED SERVICE
III I"' I Iront brake assemblies and front wheel bearings ...... " ....... , .................. , , ,10,000 miles
'" "I I luel filter .......... " ... " ........... " .................. Every 20,000 miles (or once every 2 years) I .1 III IIr -Inspec t for wear ..................... , ...................................... Every 5,000 miles
I ""ittnllnation of the rear axle lubricant with water Is possible by submerging the rear axle in water, IlIlIwll, w ter to enter the axle vent. Boat-launching ramps are sometimes located to permit the 11111111 f Ion of the car axle . If contamination by water is evident or suspected, rear axle lubricant .,HI I II changed immediately, or early axle failure can result.
Hili Wh n towing a trailer tire pressures should be increased 4 psi on Sedan models and 6 psi on I tlon Wagon models.
"'d '1 0
~ n =I oo(
0 ~ 0 l!! '" ~ '" n '" 0 -c 0 0 m ~ z m 9
c::: ("t
< m c....., ::r: § t::l VJ n (1) Ol VJ r-~ ~ t-' m I:l'" (Xl .. \,0 t-' -t-'::: 0"1 C \,Ol!! 0"1 O"I~ m OlZ C Z '" .. -I !:l
'11
-n ,.
-f
-0
Z
39

SPECIFICATIONS, CAPACITIES AND DATA
License Data
Vehicle Number:
Stamped on plate on I It Ir nl d r I, visible when door IS op n .
Engine Number :
Stamped on boss und r d lIibulol
Fluid Capacities
Fuels-25 gals.; Station Wagoll
Engine Oil-4 qts., add 1 ql. with IiII r h 11M Cooling System-16 qts., dd 1 ql with hi ,II I
Transmissions-Manual 3 p d ~ III speed 7~ pi ., Automat I'M pi . Rear Axle-4 pts. Power Steering-4 pts.
Light Bulbs Number
It d Lights ower Light. ............................................................................... .. " 2 Upper Light .................................................................................... 1 In Irument Cluster ........................................................................ '" . . .. . . . 158 f r n smisslon Drive Selector. . . . . . .. .. .. . .. .. . .. . .. .. .. .. . . .. .. . .. .. . .. . .. .. • . .. . .. .. . .. .. . . .. . . . .... S3X II t r and/or Air Conditioning Controls. .. . . . . . . . . . . . . . . . . . . . . . .• . . . . . . . . . . . • . . . . . . . . . . . . . . . . . . . . . . . .. 53X SWitch Tilles ....................................................................................... 53X R dlo 01 I......................................................................................... 1893 flunk ....................................................................................... 1004 Turn Signal, front and rear ... ....................................................................... 1034 P rking .......................................................................................... 1034 Dom .................................. _ ...................................................... 1004 LI nS8 Plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 67 lOP nd Tail .................................. ... ................................................. 1034 13 k up ...................................................... .................. ........... ..... 1073
Engine Specifications 2·Barrel Carbo 4·Barrel Carbo 4 -Barrel Carbo 4 ·Barrel Carbo 383 cu. in. 383 cu. in. 413 cu. in. 426 cu. in.
Bor ... ...................... 4.25' 4.25' 4.19' 4.25' trok .................... '" 3.375' 3.375' 3.150' 3.750' Compr ssion Ratio ................ 9.2:1 10.0· 1 10.0:1 10.3:1 II rllter ....................... . Full Flow Spin On Full Flow Spin On Full Flow Spin On Full Flow Spin On oohng System Pressure .......... 14 psi 14 psi 14 psi 14 psi rh rmostal...................... 1SO° lS00 1SO° 1SO°
I nllion Timing ................... 10° BTC 10" BTC 10° BTC 10° BTC BI k r POlOt Gap ................. 014·.019' .014·.019' .014,.019' .014·.019' p rk Plug Gap and Number ........ 035', J -14-Y or .035', J ·14-Y or .035', J -I0·Y or .035', J-lO·Y or P -3 ·6P P -3 ·6P P -3 ·3P P -3 ·3P rllmg Order .................... 1·8·4·3·6·5-7·2 1·8 ·4 -3 ·6 ·5 ·7 ·2 1·8 ·4 ·3 -6 ·5 ·7·2 1·8·4·3 ·6 ·5 ·7·2 IILl • ........................ Relwlar Premium Prl!millm Prl>mium 41
