1960 CHEVROLET CORVAIR clutch

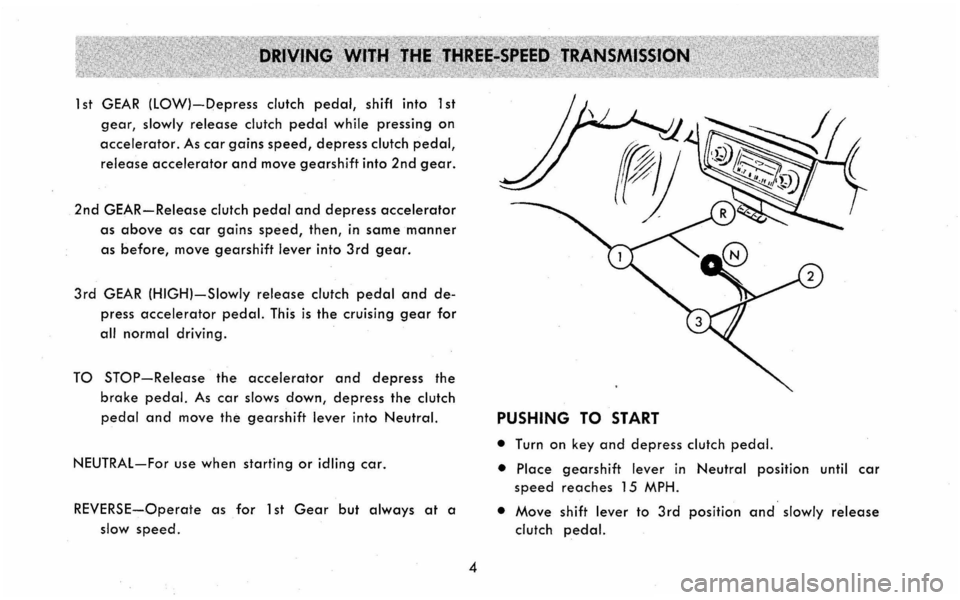

1 st GEAR (lOW}-Depress clutch pedal, shiff into 1 st
gear, slowly release clutch pedal while pressing on
accelerator. As car gains speed, depress clutch pedal,
release accelerator and move gearshift into 2nd gear.
2nd GEAR-Release clutch pedal and depress accelerator
as above as car gains speed, then, in same manner
as before, move gearshift lever into 3rd gear.
3rd GEAR (HIGH}-Slowly release clutch pedal and de­
press accelerator pedal. This is the cruising gear for
all normal driving.
TO STOP-Release the accelerator and depress the
brake pedal. As car slows down, depress the clutch
pedal and move the gearshift lever into Neutral.
NEUTRAL-For use when starting or idling car.
REVERSE-Operate as for 1 st Gear but always at a
slow
speed.
4
PUSHING TO START
• Turn on key and depress clutch pedal.
• Place gearshift lever in Neutral position until car
speed reaches 15 MPH.
• Move shift lever to 3rd position and slowly release
clutch pedal.

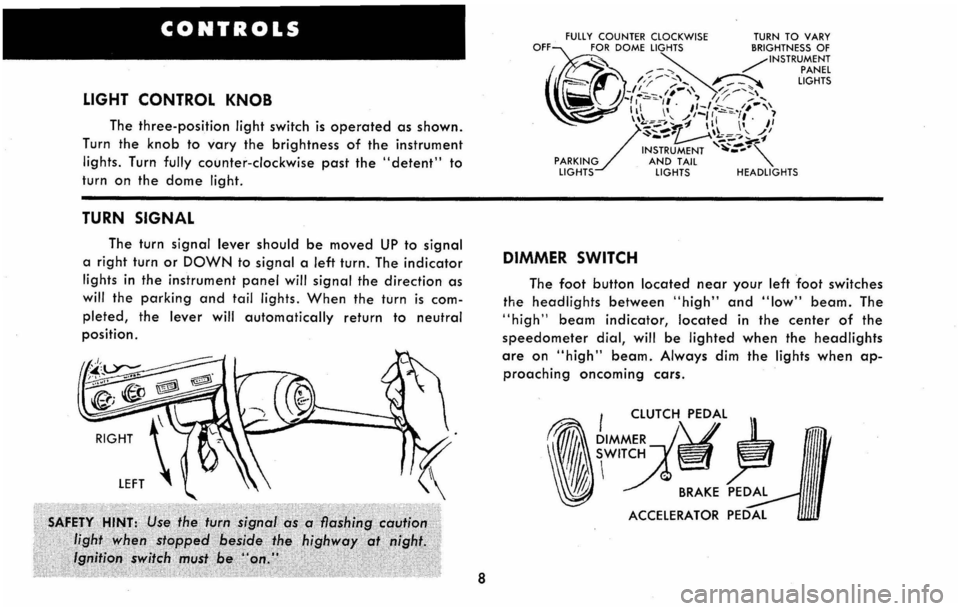

CONTROLS
LIGHT CONTROL KNOB
The three-position light switch is operated as shown.
Turn the
knob to vary the brightness of the instrument
lights. Turn fully counter-clockwise past the "detent" to
turn on the dome light.
TURN SIGNAL
The turn signal lever should be moved UP to signal
a right turn or DOWN to signal a left turn. The indicator
lights in the instrument panel will signal the direction as
will the parking and tail lights. When the turn is com­
pleted, the lever will automatically return to neutral
position.
8
FULLY COUNTER CLOCKWISE TURN TO VARY OFF@ORDOMELIGHTSBRIGHTNESSOF ~ ~ /INSTRUMENT ___ -." , PANEL
~~~
/,;----;; .... , ~ LIGHTS J -1'-I' ...... ' // ..-.... ~, /)~/,.~ .. ·,' ~ /1/ -' I II I" J/::::,'/·~"·I;'·""\ 1\1-~.P~ ~ \11 I" I'
/
-'-"'~\\ ,,/ ~ ... "., ~~-, ..... '1' ~~ .... "-'--INSTRUMENT ~-""-PARKING AND TAIL "-LIGHTS LIGHTS HEADLIGHTS
DIMMER SWITCH
The foot button located near your left foot switches
the
headlights between "high" and "low" beam. The
"high" beam indicator, located in the center of the
speedometer dial, will be lighted when the headlights
are on "high" beam. Always dim the lights when ap­
proaching oncoming cars.
. I CLUTCH PEDAL
,,~~:U

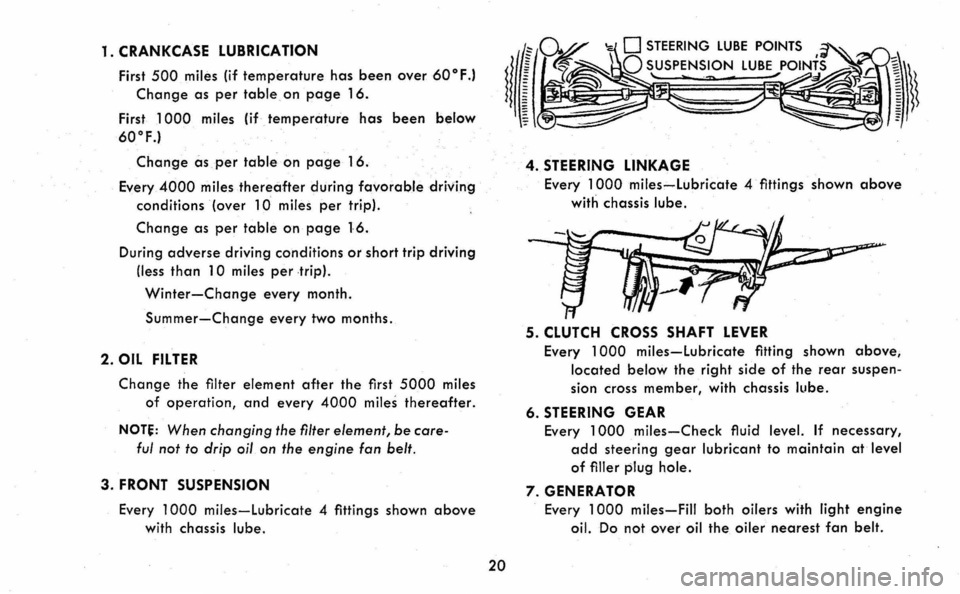

1. CRANKCASE LUBRICATION
First 500 miles (if temperature has been over 60° F.I
Change as per table, on page 16.
First 1000 miles (if-temperature has been below
60°F.1
Change as per table on page 16.
Every 4000 miles thereafte.r during favorab·le driving
conditions (over 10 miles per trip).
Change as per table on page 16.
During adverse driving conditions or short trip driving
(less
than 10 miles per trip).
Winter-Change every month.
Summer-Change every two months.
2. OIL FILTER
Change the filter element after the first 5000 miles
of operation, and every 4000 miles thereafter.
NOT~: When changing the filter element, be care­
ful not to drip oil on the engine fan belt.
3. FRONT SUSPENSION
Every 1000 miles-lubricate 4 fittings shown above
with chassis lube.
20
4. STEERING LINKAGE
Every 1000 miles-lubricate 4 fittings shown above
with chassis lube.
5. CLUTCH CROSS SHAFT LEVER
Every 1000 miles-lubricate fitting shown above,
located below the right side of the rear suspen­
sion cross member, with chassis lube.
6. STEERING GEAR
Every 1000 miles-Check fluid level. If necessary,
add steering gear lubricant to maintain at level
of filler plug hole.
7. GENERATOR
Every 1000 miles-Fill both oilers with light engine
oil. Do not over oil the oiler nearest fan belt.

ammonia or soda solution and flush with clear
water. Check state of charge regularly, espe­
cially in freezing weather, for an undercharged
battery may freeze and break.

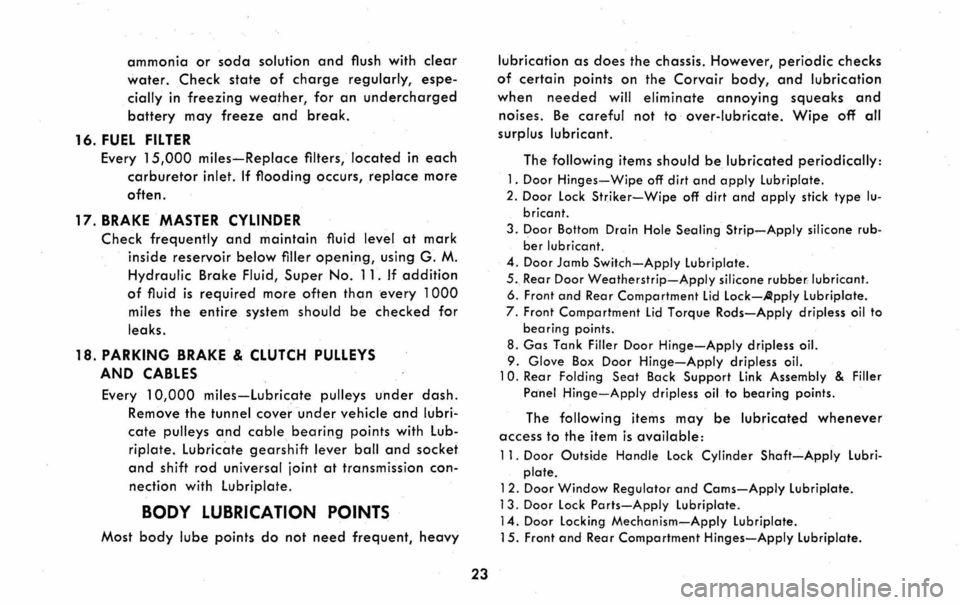

16. FUEL FILTER
Every 15,000 miles-Replace filters, located in each
carburetor inlet. If flooding occurs, replace more
often.
17. BRAKE MASTER CYLINDER
Check frequently and maintain fluid level at mark
inside reservoir below filler opening, using G. M.
Hydraulic Brake Fluid, Super No. 11. If addition
of fluid is required more often than ·every 1000
miles the entire system should be checked for
leaks.
18. PARKING BRAKE & CLUTCH PULLEYS
AND CABLES
Every 10,000 miles-Lubric.ate pulleys under dash.
Remove the
tunnel cover under vehicle and lubri­
cate pulleys and cable bearing points with lub­
riplate. lubricate gearshift lever ball and socket
and shift rod universal joint at transmission con­
nection with lubriplate.
BODY LUBRICATION POINTS
Most body lube points do not need frequent, heavy
23
lubrication as does the chassis. However, periodic checks
of certain points on the Corvair body, and lubrication
when needed will eliminate annoying squeaks and
noises . Be careful not to over-lubricate. Wipe off all
surplus lubricant.
The following items should be lubricated periodically:
1. DQQr Hinges-Wipe off dirt and apply Lubriplate.
2 . Door Lock
Striker-Wipe off dirt and apply stick type lu­bricant.
3. Door Bottom Drain Hole Sealing Strip-Apply silicone rub-
ber lubricant.
4. Door Jamb Switch-Apply Lubriplate.
5 .
Rear Door Weatherstrip-Apply silicone rubber, lubricant.
6 . Front
and Rear Compartment Lid Lock-Apply Lubriplate.
7. Front Compartment Lid Torque Rods-Apply dripless oil to bearing points.
8. Gas Tank Filler Door Hinge-Apply dripless oil. 9. Glove Box Door Hinge-Apply dripless oil. 10. Rear Folding Seat Back Support Link Assembly & Filler Panel Hinge-Apply dripless Qil to bearing points.
The following items moy be lubricated whenever
access to the item is availoble:
11. Door Outsi.de Handle Lock Cylinder Shaft-Apply Lubri-
plate. 12. Door Window Regulator and Cams-Apply Lubriplate .
13. Door Lock Parts-Apply Lubriplate . 14. Door Locking Mechanism-Apply Lubriplate .
15. Front and Rear Compartment Hinges-Apply Lubriplate.

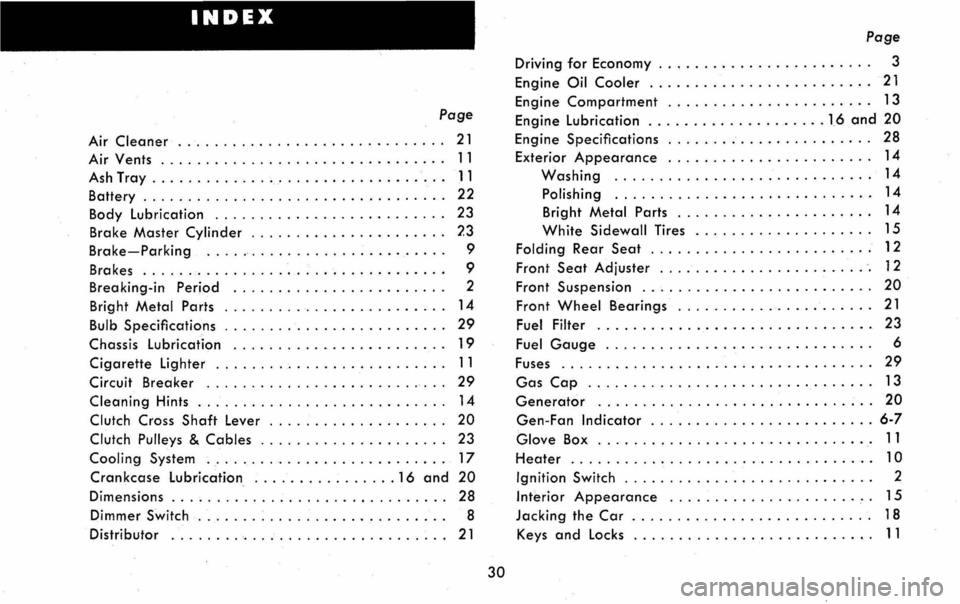

INDEX
Page
Air Cleaner .............. , . ............ .. 21
Air Vents ............................... .
Ash Tray
............ .................... .
Battery ................................. .
Body
lubrication ......... . ............... .
Brake
Master Cylinder ..................... .
Brake-Parking .......................... .
Brakes
........ .. ............. .. ........ .
Breaking-in
Period . ........ .. ........... . .
11
11
22
23
?3
9
9
2
Bright Metal Parts . .............. .......... 14
Bulb Specifications .................... .... , 29
Chassis lubrication ................... ..... 19
Cigarette Lighter .......................... 11
Circuit Breaker ......... . ................. 29
Cleaning Hints . . . . . . . . . . . . . . . . . . . . . . . . . . .. 14
Clutch Cross Shaft lever ................... , 20
Clutch Pulleys & Cables .. . . . . . . . . . . . . . . . . . .. 23
Cooling System ........................... 17
Crankcase lubrication ................ 16 and 20
Dimensions .............................. . 28
Dimmer Switch ... ........................ . 8
Distributor .............................. . 21
30
Page
Driving for Economy . . . . . . . . . . . . . . . . . . . . . . .. 3
Engine Oil Cooler ............. .......... . . 21
Engine
Compartment ....................... 13
Engine lubrication .................... 16 and 20
Engine Specifications . . . . . . . . . . . . . . . . . . . . . .. 28
Exterior Appearance ....................... 14
Washing ............................. 14
Polishing ........ ..................... 14
Bright Metal Parts . . . . . . . . . . . . . . . . . . . . .. 14
White Sidewall Tires .................... 15
Folding Rear Seat . . . . . . . . . . . . . . . . . . . . . . . .. 12
Front Seat Adjuster ........................ 12
Front Suspension ......... ........ ......... 20
Front Wheel Bearings ............ .......... 21
Fuel Filter ............. .. ................ 23
Fuel Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 6
Fuses ..
................. ................ 29
Gas Cap ........ ........................ 13
Generator ............................... 20
Gen-Fan Indicator ......................... 6-7
Glove Box ......... .... ............... . ' .' 11
Heater .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 10
Ignition Switch . . . . . . . . . . . . . . . . . . . . . . . . . . .. 2
Interior Appearance ............... ...... .'. 15
Jacking the Car . . . . . . . . . . . . . . . . . . . . . . . . . .. 1 8
Keys
and Locks .... . . . . . . . . . . . . . . . . . . . . . .. 11
