1960 CHEVROLET CORVAIR air condition

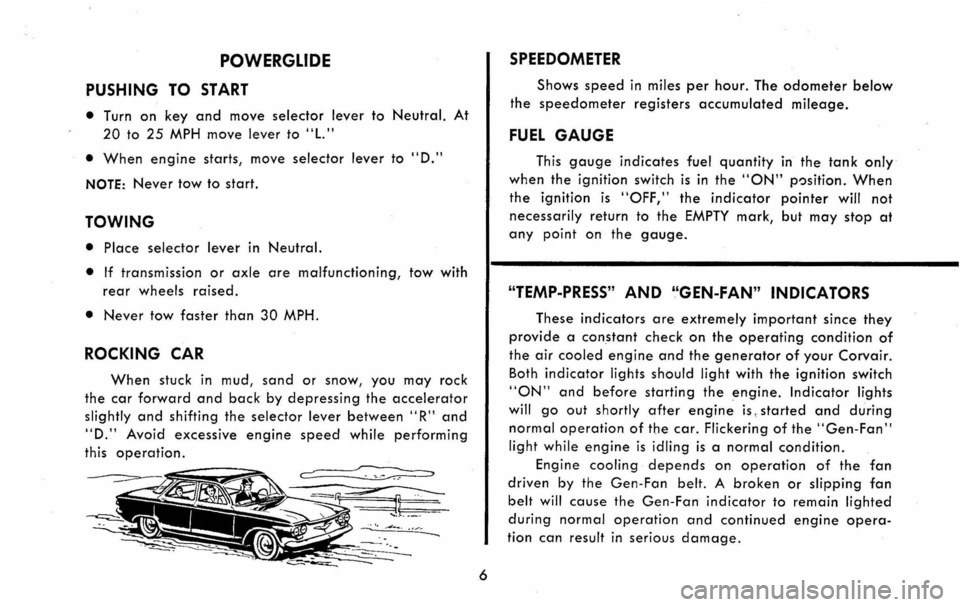

POWERGlIDE
PUSHING TO START
• Turn on key and move selector lever to Neutral. At
20 to 25 MPH move lever to "L."
• When engine starts, move selector lever to "D."
NOTE: Never tow to start.
TOWING
• Place selector lever in Neutral.
• If transmission or axle are malfunctioning, tow with
rear wheels raised.
• Never tow faster than 30 MPH.
ROCKING CAR
When stuck in mud, sand or snow, you may rock
the car forward and back by depressing the accelerator
slightly and shifting the selector lever between" R" and
"D." Avoid excessive engine speed while performing
this operation.
~ -'.
6
SPEEDOMETER
Shows speed in miles per hour. The odometer below
the speedometer registers accumulated mileage.
FUEL GAUGE
This gauge indicates fuel quantity in the tank only
when the ignition switch is in the "ON" p')sition. When
the ignition is "OFF," the indicator pointer will not
necessarily return to the EMPTY mark, but may stop at
any point on the gauge.
"TEMP-PRESS" AND "GEN-FAN" INDICATORS
These indicators are extremely important since they
provide a constant check on the operating condition of
the air cooled engine and the generator of your Corvair.
Both
indicator lights should light with the ignition switch
"ON" and before starting the engine. Indicator lights
will go out shortly after engine is, started and during
normal operation of the car. Flickering of the "Gen-Fan"
light while engine is idling is a normal condition.
Engine cooling depends on operation of the fan
driven by the Gen-Fan belt. A broken or slipping fan
belt will cause the Gen-Fan indicator to remain lighted
during normal operation and continued engine opera­
tion can result in serious damage.

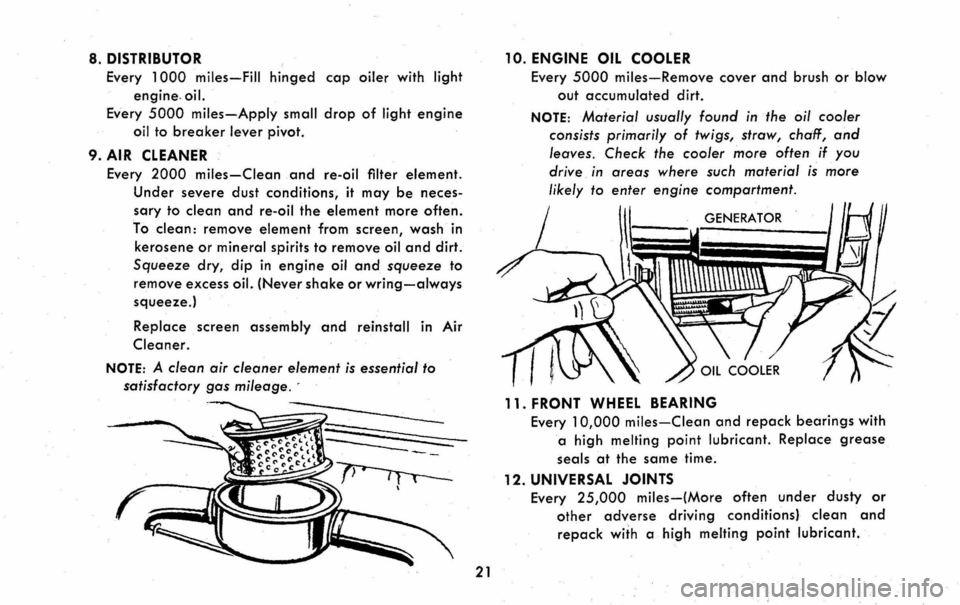

8. DISTRIBUTOR
Every 1000 miles-Fill hinged cap oiler with light
engine. oil.
Every 5000 miles-Apply small drop of light engine
oil to breaker lever pivot.
9. AIR CLEANER
Every 2000 miles-Clean .and re-oil filter element.
Under severe dust conditions, it may be neces­
sary to clean and re-oil the element more often.
To clean: remove element from screen, wash in
kerosene
or mineral spirits to remove oil and dirt.
Squeeze dry, dip in engine oil and squeeze to
remove excess oiL (Never shake or wring-always
squeeze.)
Replace screen assembly and reinstall in Air
Cleaner.
NOTE: A clean air cleaner element is essential to
satisfactory gas mileage. -
21
10. ENGINE OIL COOLER
Every 5000 miles-Remove cover and brush or blow
out accumulated dirt.
NOTE: Material usually found in the oil cooler
consists primarily
of twigs, straw, chaff, and
leaves. Check the cooler more often if you
drive
in areas where such material is more
likely to enter engine compartment.
GENERATOR
11. FRONT WHEEL BEARING
Every 10,000 miles-Clean and repack bearings with
a high melting point lubricant. Replace grease
seals at the same time.
12. UNIVERSAL JOINTS
Every 25,000 miles-(More often under dusty or
other adverse driving conditions} clean and
repack with a high melting point lubricant.

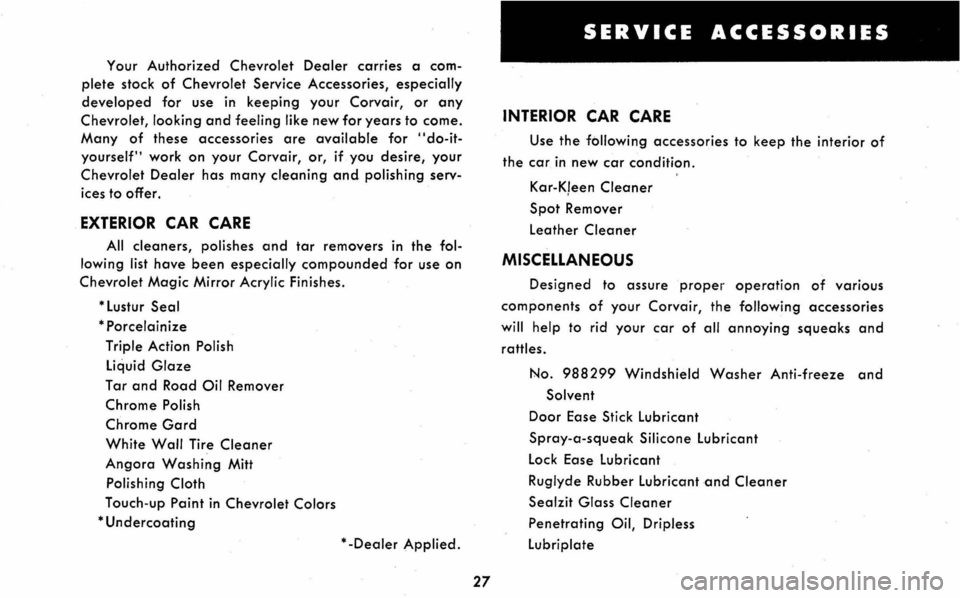

Your Authorized Chevrolet Dealer carries a com­
plete stock of Chevrolet Service Accessories, especially
developed for use in keeping your Corvair, or any
Chevrolet, looking and feeling like new for years to come.
Many of these accessories are available for "do-it­
yourself" work on your Corvair, or, if you desire, your
Chevrolet Dealer has many cleaning and polishing serv­
ices
to offer.
EXTERIOR CAR CARE
All cleaners, polishes and tor removers in the fol­
lowing list have been especially compounded for use on
Chevrolet Magic Mirror Acrylic Finishes.
*
lustur Seal
* Porcelainize
Triple
Action Polish
Liquid Gloze
Tor and Road Oil Remover
Chrome
Polish
Chrome Gard
White Wall Tire Cleaner
Angora Washing Mitt
Polishing Cloth
Touch -up Paint in
Chevrolet Colors
* Undercoating
*-Dealer Applied.
27
SERVICE ACCESSORIES
INTERIOR CAR CARE
Use the following accessories to keep the interior of
the car in new cor condition.
Kar-K)een
Cleaner
Spot Remover
leather Cleaner
MISCELLAN EOUS
Designed to assure proper operation of various
components
of your Corvair, the following accessories
will help to rid your car of all annoying squeaks and
rattles.
No. 988299 Windshield Washer Anti-freeze and
Solvent
Door Ease Stick lubricant
Spray-a-squeak Silicone Lubricant
Lock Ease Lubricant
Ruglyde Rubber Lubricant
and Cleaner
Seal zit Gloss Cleaner
Penetrating Oil, Dripless
Lubriplate
